Dwyer TAC-L - Contact/Non-Contact Digital Tachometer

Name: Dwyer TAC-L - Contact/Non-Contact Digital Tachometer
Brand: Dwyer
SKU: DwyerTAC-L
Price: 108.00 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | Model: Dwyer TAC-L

Compare

Dwyer Portable Digital Tachometer, TAC-L, Contact/Non-Contact Operation, Backlit LCD

Contact or Photo Non-Contact Operation
Non-contact operation can record from a distance of up to 20 inches
Memory function recalls records since last power off
Large backlit LCD for visibility in dark areas

View Product Details

Your Price: $108.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Dwyer TAC-L

Large backlit LCD for visibility in dark areas
Memory function recalls records since last power off
Contact or Photo Non-Contact Operation
The non-contact operation can record from a distance of up to 20 inches

Contact/Non-Contact Digital Tachometer

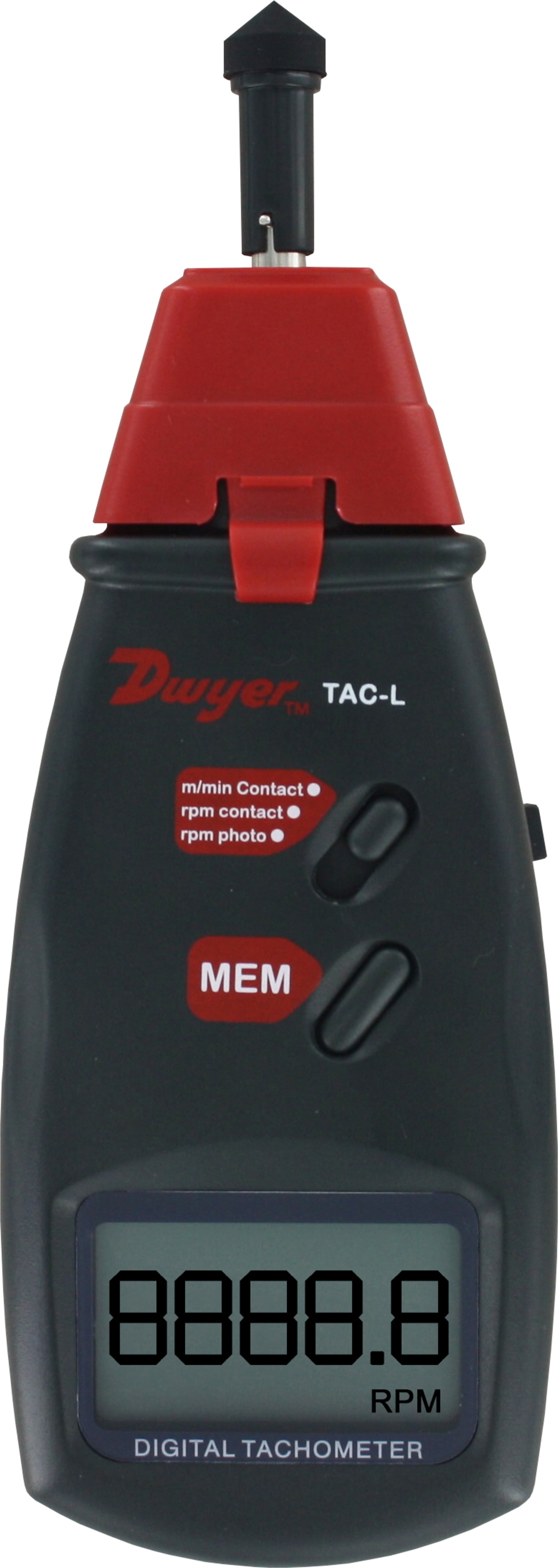

The Dwyer TAC-L Portable Digital Tachometer measures rotational speed either by contacting a rotatable head to the shaft of the object or using a photosensor to detect the reflections from the laser. The laser target can record from a distance of up to 20 inches and gives a more accurate measurement than LED targeting. The Dwyer TAC-L features a large LCD with a backlight for use in dark areas. This tachometer is made of a strong, lightweight ABS plastic housing, which is designed to comfortably fit in the hand of the user. Supplied with this model are 3 contact rotational heads, a contact surface wheel, and a protective carrying case.

Specifications
Accuracy	±(0.05% + 1 digit)
Display	Backlit LCD; 5 digits, 7 segments, 0.7" (1.8 cm) H
Range	Non-contact (RPM): 2.5 to 99,999 RPM; Contact (RPM): 0.5 to 19,999 RPM; Surface Speed (m/min): 0.05 to 1999.9 m/min
Resolution	Non-contact (RPM): 0.1 RPM (2.5 to 999.9 RPM), 1 RPM (1000 to 99,999 RPM); Contact (RPM): 0.1 RPM (0.5 to 999.9 RPM), 1 RPM (1000 to 19,999 RPM); Surface Speed (m/min): 0.01 m/min (0.05 to 99.99 m/min), 0.1 m/min (100.0 to 1999.9 m/min)
Non-contact Measuring Distance Range	2 to 20" (5 to 50 cm)
Sampling Time	0.8 s
Temperature Limits	32 to 122°F (0 to 50°C)
Power Requirements	(4) 1.5 V AA alkaline batteries
Weight	1.37 lb (.620 kg)
Agency Approvals	CE, RoHS

Reliability / Preventative Maint / Rotational/Tachometers Template
Detection Type	Contact, Non-Contact Photo
Display (Tachometer)	LCD
Style of Tachometer	Handheld
Max Working Distance for Non-Contact	20 IN (1.67 Ft)
Max RPM	99999 RPM
Min RPM	0.05 RPM
Accuracy for Tachmometers	±(0.05% + 1 digit)
Housing	Plastic
Test Equipment General Attributes
Unique Features	• Non-contact operation can record from a distance of up to 20 inches • Memory function recalls records since last power off • Large backlit LCD for visibility in dark areas
Warranty	1 YEARS
Warranty Details	The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller's option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused, altered,
Safety Approval	CE, RoHS
Product Weight	1.37 LBS
Shipping Weight	2 LBS
HTS/Schedule B Number	9029.20.4080
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	China
Other Information	Dimension:: 2-7/8 x 7-3/8 x 1-3/8 in Resolution:: Non-contact (RPM): 0.1 RPM (2.5 to 999.9 RPM), 1 RPM (1000 to 99,999 RPM); Contact (RPM): 0.1 RPM (0.5 to 999.9 RPM), 1 RPM (1000 to 19,999 RPM); Surface Speed (m/min): 0.01 m/min (0.05 to 99.99 m/min), 0.1 m/min (100.0 to 1999.9 m/min) Sampling Time:: 0.8 s
