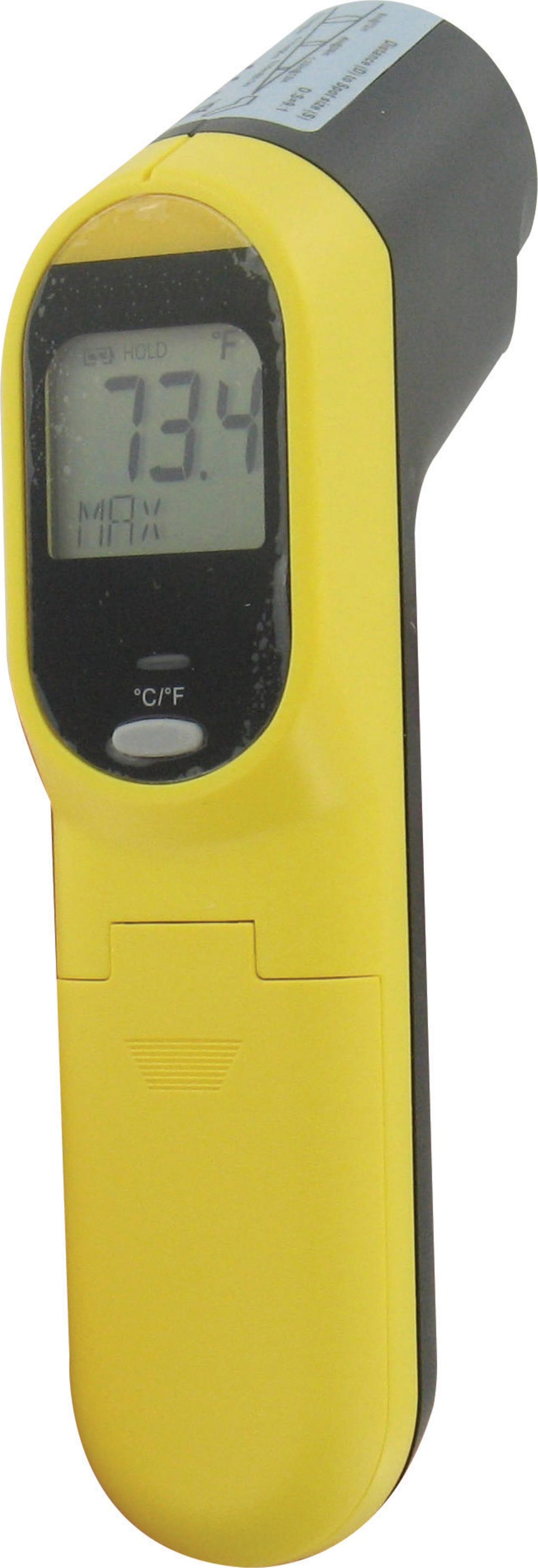

Dwyer IR2 Infrared Non-Contact Thermometer

Name: Dwyer IR2 Infrared Non-Contact Thermometer
Brand: Dwyer
SKU: DwyerIR2
Price: 96.50 USD
Availability: InStock

0 reviews | Model: Dwyer IR2

Compare

IR2 IR NON-CONTACT THERMOMETER

12:1 distance to target ratio
Laser sighting
2% accuracy using a built in laser sight
Fixed emissivity of 0.95

View Product Details

List Price: $96.50

In Stock:

View Payment Options

Recommended for you

The Dwyer IR2 infrared temperature thermometer allows users to economically take accurate measurements in hard to reach areas. Measurements can be taken at a safe distance with a 12:1 Distance to Target Ratio. The IR2 easily takes measurements within 2% accuracy using a built-in laser sighting. The fixed emissivity of 0.95 is perfect for measuring surface temperatures of concrete, asphalt, rubber, or oxidized metals. Besides reading the process temperature, the backlit display also reads the maximum temperature seen. Excellent for monitoring surface temperatures of air ducts, boilers, engines, or light fixtures.

MODEL CHART
Model	Distance Ratio	Emissivity	T/C Input
IR2	12:1	Fixed	No
IR3	12:1	Adjustable	Yes
IR4	20:1	Adjustable	Yes

Specifications
Measurement Range	-76 to 932°F (-60 to 500°C)
Operating Range	32 to 122°F (0 to 50°C)
Accuracy	2% of reading or 4°F (2°C), whichever is greater
Resolution	0.1°F/0.1°C
Response Time	1 second
Distance to Target	12:1
Emissivity	0.95 fixed
Power Requirements	(2) AAA alkaline batteries, included, user replaceable
Battery Life	180 hours continuous use (auto power off after 15 sec)
Weight	3.61 oz (102 g)
Agency Approvals	CE

Tech Specs

Thermometers/IR Thermometers Template
IR Temperature Min	-76 F
Field View Ratio (Spot Ratio)	12:1
Accuracy	2% of reading or 4°F (2°C)
Emissivity Adjustable	No Emissivity Adjustable 0.95 fixed
Test Equipment General Attributes
Unique Features	• Fixed emissivity of 0.95 is perfect for measuring surface temperatures of concrete, asphalt, rubber or oxidized metals • Auto power off after 15 sec
Warranty	1 YEARS
Warranty Details	The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller's option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused/altered,
Safety Approval	CE
Product Weight	3.61 OUNCES (0.226 LBS)
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	United States
Other Information	Dimensions:: 6.90 x 1.54 x 2.83 in (175.2 x 39.0 x 71.9 mm)
