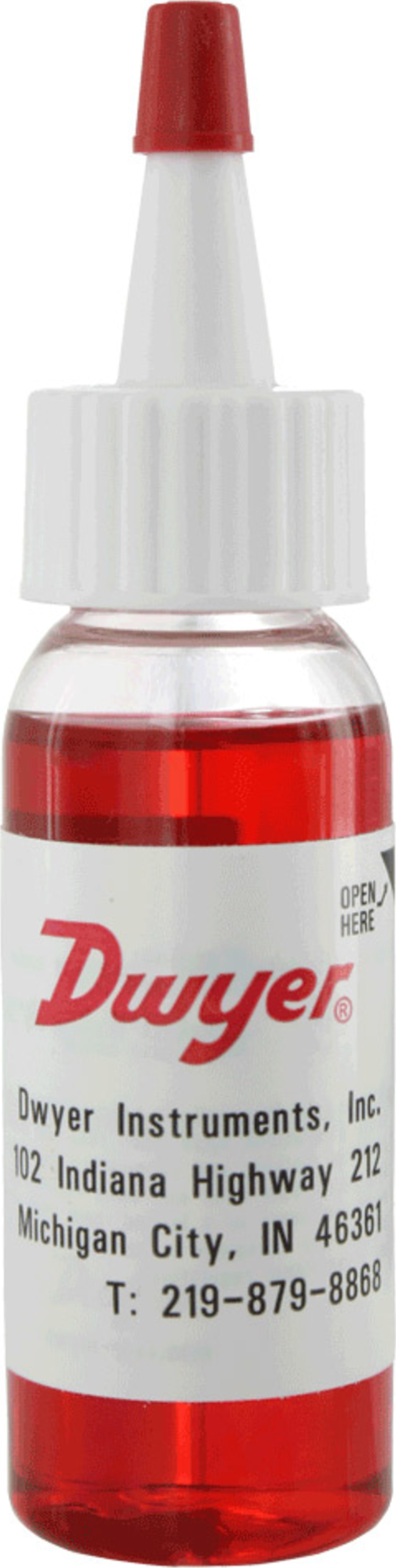

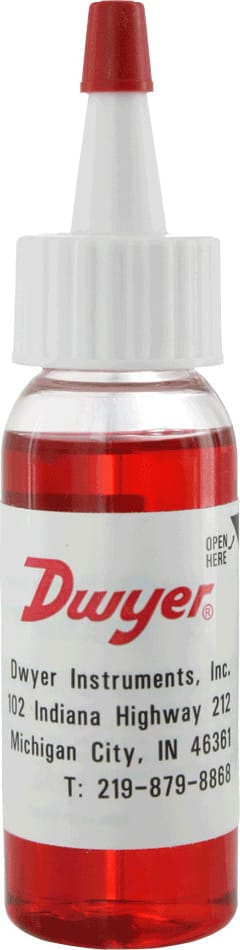

Red Gage Fluid, 1 oz
Model Chart
Red gage fluids, .826 sp. gr. The standard fluid for use in inclined manometers, "D" type vertical manometers and all Dwyer gages using red fluid.
A-101 - 1 oz unbreakable plastic dispenser bottle
A-102 - 4 oz plastic bottle with a screw cap
A-103 - 1 pt plastic bottle with a screw cap
A-104 - 1 qt plastic bottle with a screw cap
Blue gage fluids, 1.910 sp. gr. For special instruments and Mark II Models 26 and 28.
A-110 - 1 oz unbreakable plastic dispenser bottle
A-111 - 1 pt plastic bottle with a screw cap
Violet gage fluids, 1.000 sp. gr. Use in place of water if a better meniscus is desired.
A-120 - 1 oz unbreakable plastic dispenser bottle
A-121 - 4 oz plastic bottle with a screw cap
A-122 - 1 pt plastic bottle with a screw cap
Fluorescein green color concentrate, water coloring agent. Not to be used full strength. Add 3/4 oz to a quart of distilled water. Contains a wetting agent to improve the meniscus characteristics. Use in vertical manometers only.
A-126 - 1 oz unbreakable plastic dispenser bottle
Caution: Use only Dwyer fluids in Dwyer gages.
