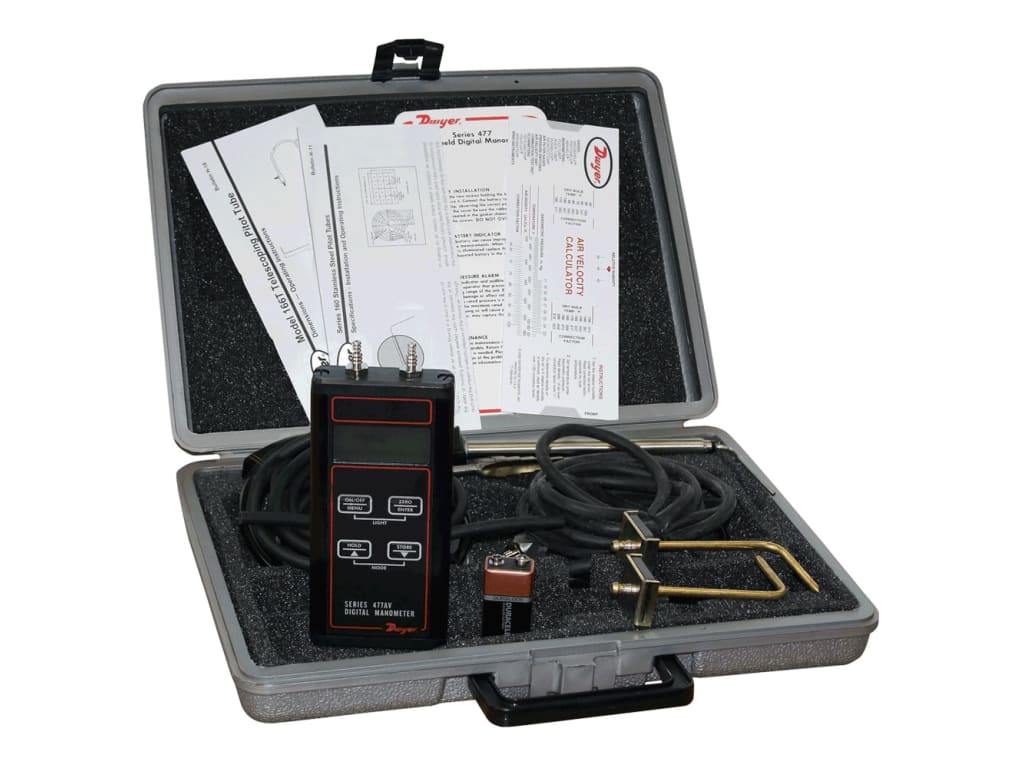

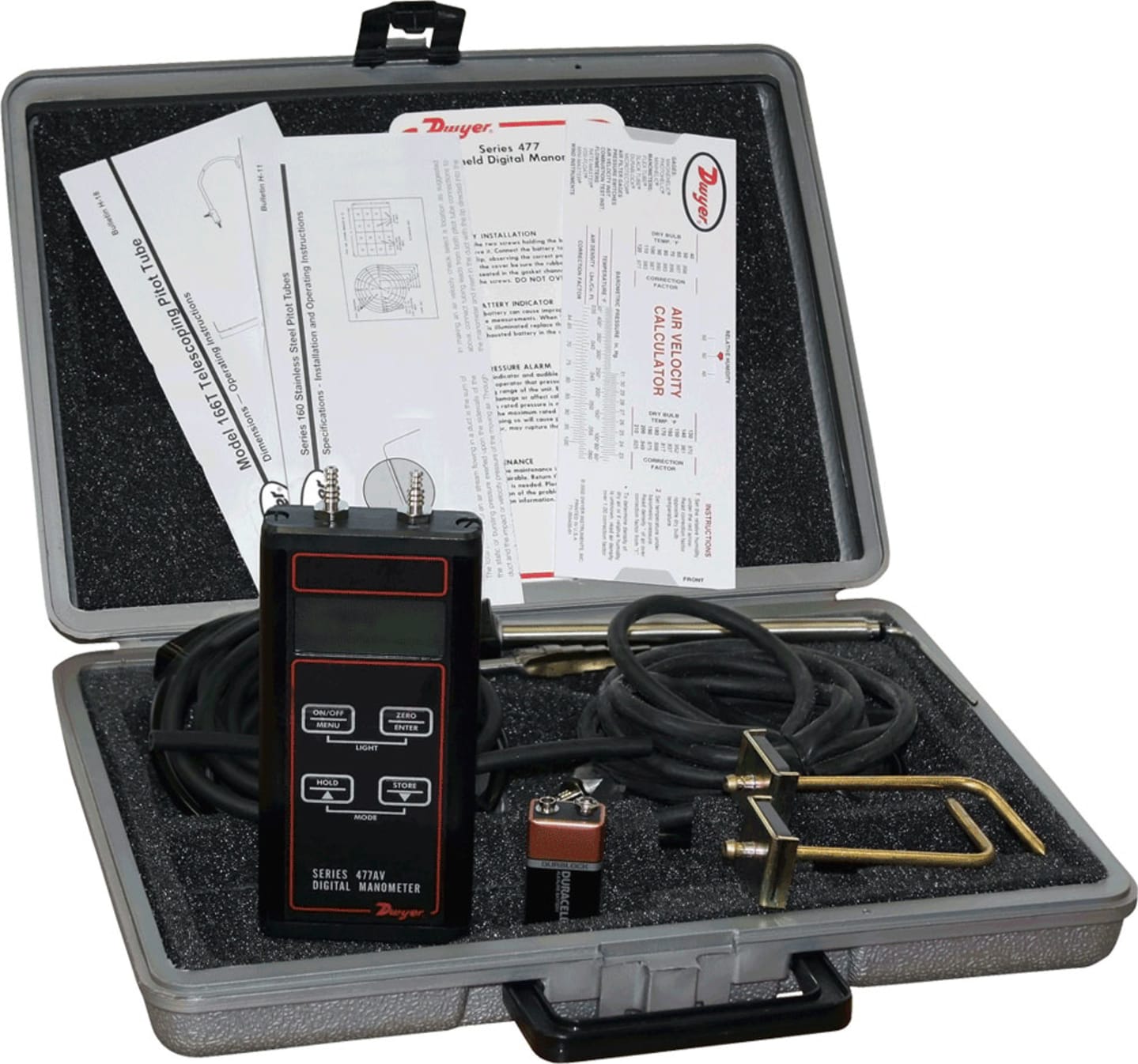

Air Velocity Kits, 0-4" w.c.
The convenient all-in-one kit is small, light and easy to use. No set-up or leveling is needed. Digital manometer reads from 0-20" w.c. with ±0.5% F.S. accuracy. The Series 477AV stores up to 40 readings in memory for later reference, with selectable English/Metric pressure, flow and velocity units that are visible on a large, backlit 0.4" LCD readout. Both audible and visual overpressure alarms and a “low battery” warning are standard features.
Each kit includes a convenient telescoping Pitot tube, Model 166T which is fully adjustable from 11.5 to 36 inches (29.2 to 91.4 cm). In addition, two static pressure tips with magnetic mountings measure pressure drop across filters, condenser coils, etc. The kit comes complete with rubber tubing, 9V battery, step drill, AV calculator slide rule, and custom fitted carrying case. An indispensable test kit for the plant engineer, industrial hygienist and HVAC technician.
Applications
- Building commissioning
- Building HVAC test and balance
- Critical environment testing
- Industrial process verification
- Instrumentation validation
