Dwyer 473B-1-OB Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 5000 ft/min

Name: Dwyer 473B-1-OB Anemometer / Air Flow - Type (anemometer): Vane, Measurement (anemometer): Ft/Min, Air Velocity Max: 5000 ft/min
Brand: Dwyer
SKU: Dwyer473B-1-OB
Price: 556.00 USD
Availability: InStock

0 reviews | Model: Dwyer 473B-1-OB

Dwyer 473B-1 Vane Thermo-Anemometer Test Instrument

Compare

DwyerVanometer Test Instrument, 473B-1, Measures Air Velocity, Flow, Humidity, and Temperature - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
Measures air velocity or air volume, temperature and humidity simultaneously
100mm vane probe is included
High contrast and backlit LCD for visibility in any condition
Able to store up to 99 readings for later evaluation
Compatible with AP1 thermo-anemometer probe
Compatible with RP1 thermo-hygrometer probe

View Product Details

List Price: $556.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Dwyer 473B-1-OB

Dwyer A-47X-BOOT Protective Magnetic Rubber Boot

Catalog: A-47X-BOOT

(2)

In Stock!

Add to Cart

Dwyer VP1 100mm Vane Thermo-Anemometer Probe

Catalog: VP1

(0)

In Stock!

Add to Cart

Dwyer AP1 Dwyer Thermo-Anemometer Air Velocity And Temperature Probe, AP1, With Coiled...

Catalog: AP1

(0)

In Stock!

Add to Cart

Dwyer RP1 Dwyer Thermo-Hygrometer Humidity And Temperature Probe, RP1, With Coiled Cable

Catalog: RP1

(0)

In Stock!

Add to Cart

Dwyer 473B-1 Vane Thermo-Anemometer Test Instrument

Dwyer 473B-1

Measures air velocity or air volume, temperature and humidity simultaneously
100mm vane probe is included
Compatible with AP1 thermo-anemometer probe
Compatible with RP1 thermo-hygrometer probe

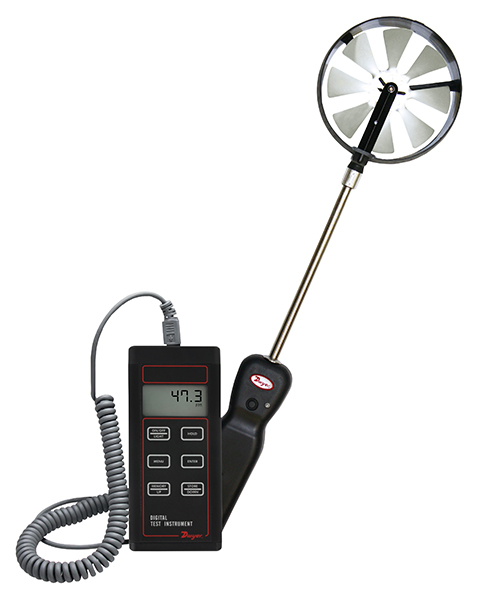

The Dwyer 473B-1 100 mm Vane Thermo-Anemometer Test Instrument is a versatile unit that quickly and easily measures air velocity or volumetric air flow, as well as air temperature and humidity in imperial or metric units. A stainless steel 100 mm vane probe is included, which has a comfortable hand grip. The extruded aluminum housing fully protects electronics, yet is lightweight and comfortable to hold.

The 473-B is also compatible with two other probes - the AP1 thermo-anemometer probe, and RP1 thermo-hygrometer probe. Both are sold separately.

Applications include:

Residential balancing
HVAC inspections

Specifications
Service	Dry, clean air.
Temperature Limits	Process: -20 to 212°F (-29 to 100°C); Ambient: 5 to 125°F (-15 to 51°C).
Display	4.5 digit backlit display.
Range	Air Velocity: 40 to 5000 fpm (0.2 to 25 m/s); Volumetric Air Flow: 19,999 in selected flow units; Temperature: -20 to 212°F (-29 to 100°C); Relative Humidity: 0 to 100% RH.
Accuracy	Air Velocity: ±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s]; ±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s]; ±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s]; Temperature: ±0.54°F @ 77°F (±0.3°C @ 25°C); Relative Humidity: ±2% @ 77°F (25°C) [10 to 90% RH]; ±4% [0 to 10, 90 to 100% RH].
Response Time	Air Velocity: 1 s; Volumetric Air Flow: 1 s; Temperature: 1.5 s; Relative Humidity: 1.5 s.
Probe Length	8" (203 mm) insertion.
Cable Length	28" (71 cm) retracted; 6' (183 cm) extended.
Vane Material	Anodized aluminum.
Power Requirements	9 V alkaline battery, installed non-functional, user replaceable.
Weight	18.4 oz (521 g).
Agency Approvals	CE.

Environmental Testers / Physical Property/Anemometer / Air Flow Template
Type (anemometer)	Vane
Measurement (anemometer)	Ft/Min, m/s
Air Velocity Max	5000 ft/min
Air Velocity Min	40 ft/min
Accuracy Air Velocity	±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s]±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s] ±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s]
Humidity	Yes
Temperature	Yes
Dew Point	Yes
Min/Max Display	Yes
Data Hold	Yes
Interchangable Probe Options	Yes
Replaceable Vane	Yes
General Attributes
Warranty	1 YEARS
Product Weight	521 GRAMS (1.15 LBS)
Warranty Details	The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller's option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused/altered.
Product Height	3.25 IN
Product Length	18.25 IN
Product Width	6.50 IN
Shipping Height	3.25 IN
Shipping Length	18.25 IN
Shipping Width	6.50 IN
Country of Origin	United States
Test Equipment General Attributes
Unique Features	• Compatible with Dwyer AP1 thermo-anemometer and RP1 thermo-hygrometer wired probes (sold separately) • Included 100 mm vane probe is able to measure air velocity, volumetric air flow, temperature, and humidity • High contrast and backlit LCD for visibility in any condition • Able to store up to 99 readings for later evaluation
Safety Approval	CE
Storage	Internal Memory
Data Logging	Yes
Battery Type	9v
Power Supply Voltage	Battery Powered
Other Information	Probe Length:: 8˝ (203 mm) insertion Cable Length:: 28˝ (71 cm) retracted; 6´ (18.3 m) extended Vane Material:: Anodized aluminum
