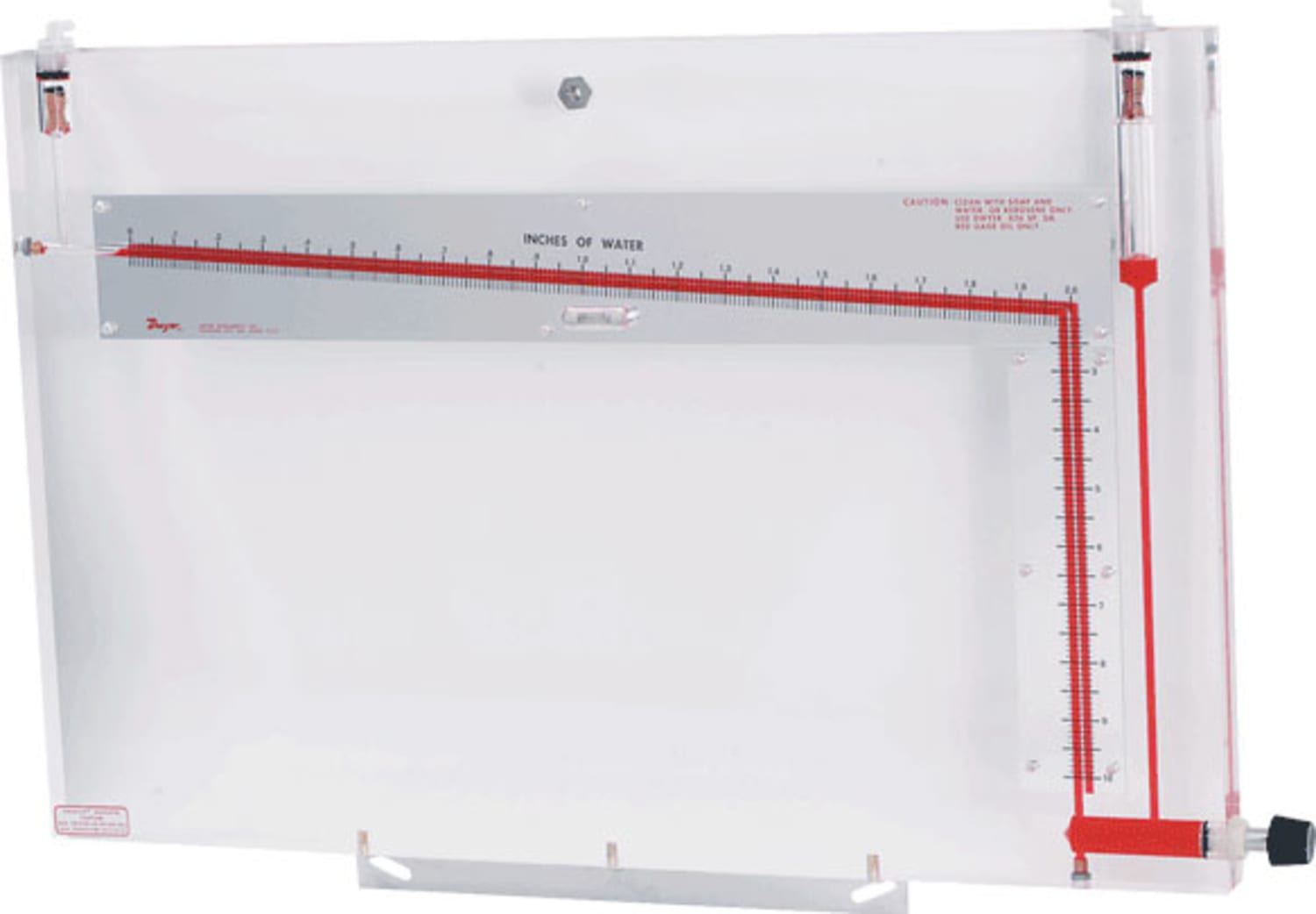

Dwyer 424-10 - Inclined/Vertical Manometer

Name: Dwyer 424-10 - Inclined/Vertical Manometer
Brand: Dwyer
SKU: Dwyer424-10
Price: 2767.45 USD
Availability: InStock

0 reviews | Model: Dwyer 424-10

Compare

Inclined/Vertical Manometer

424-10 Inclined/Vertical Manometer Durablock Dwyer 424 Series
High-accuracy measurement of low range gas and air pressure suitable for laboratory and test applications
Long bore length provides ample room for fluid movement for low range sensing
Precision built to assure device meets the highest standards
1-1/4" Thick Acrylic Plastic Body is a solid block, virtually unbreakable, stable and absolutely free of the danger of distortion
3/16" Bores, Accurate to ± .0002" are permanently free of bends or crooks, will not require recalibration because of distortion
Ground Glass Bubble Level sensitive to 115-125 sec./2 MM. is 1-1/2" long x .375" diameter and provided with two red lines for easy visibility and alignment
Parallax-Free Reading for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the polished aluminum scale
Selected Gage Fluid with high wetability characteristics forms a consistent, well shaped meniscus for perfect readability
O-Ring Sealed Fluid Level Plunger Adjustment for easy zeroing

View Product Details

Your Price: $2,767.45

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Dwyer 424-10 Inclined/Vertical Manometer	Dwyer 424-250MM Inclined/Vertical Manometer Durablock Dwyer 424 Series	Dwyer 422-23 Inclined/Vertical Manometer	Dwyer 421-23 Inclined/Vertical Manometer	Dwyer 422-10 Inclined/Vertical Manometer	Dwyer 421-10 Inclined/Vertical Manometer	Dwyer 422-250MM Durablock? Inclined-Vertical Manometer, Double Column, 6-1/2" Inclined Sca ...	Dwyer 421-130MM Inclined/Vertical Manometer, 0-25 mm w.c. Inclined and 30-130 mm w.c. Vert ...	Dwyer 421-250MM Inclined/Vertical Manometer, 0-25 mm w.c. Inclined and 30-250 mm w.c. Vert ...	Dwyer 421-5 Inclined/Vertical Manometer, 0-1" w.c. Inclined and 1-5" w.c. Vertical	Dwyer 422-130MM Inclined/Vertical Manometer, 0-25 mm w.c. Inclined and 30-130 mm w.c. Vert ...	Dwyer 422-5 Inclined/Vertical Manometer, 0-1" w.c. Inclined and 1-5" w.c. Vertical	Dwyer 424-132MM Inclined/Vertical Manometer, 0-50 mm w.c. Inclined and 52-132 mm w.c. Vert ...
Price
In Stock
Type (Manometer)	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube	Inclined Tube
Max Pressure	10 IN of H2O		10 IN of H2O	23 IN of H2O	10 IN of H2O	10 IN of H2O	250 MM of H2O (4865366.07 IN of H2O)	130 MM of H2O (2529990.36 IN of H2O)	250 MM of H2O (4865366.07 IN of H2O)	5 IN of H2O	130 MM of H2O (2529990.36 IN of H2O)	5 IN of H2O
Engineering Units (HVAC)	inch H2O	cmH2O, mmH2O	inch H2O	inch H2O	inch H2O	inch H2O	mmH2O	inch H2O	inch H2O	inch H2O	mmH2O	inch H2O	cmH2O, mmH2O
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Dwyer 424-10 Accessories

Choose a Category

General Accessories

for the Dwyer 424-10

Dwyer A-101 Red Gage Fluid, 1 oz

Catalog: 200098-10

(1)

In Stock!

Add to Cart

Dwyer A-102 Red Gage Fluid, 4 oz

Catalog: 200098-01

(0)

In Stock!

Add to Cart

Dwyer A-103 Red Gage Fluid, 1 pt

Catalog: 200098-02

(0)

In Stock!

Add to Cart

Dwyer 424-10

Inclined Range: 0-2.0"
Vertical Range: 2.1-10"
Long bore length provides ample room for fluid movement for low range sensing
Precision built to assure device meets the highest standards

Inclined/Vertical Manometer

The Dwyer 424 Series inclined-vertical manometer is an extremely accurate instrument designed and made especially for precision measurement of low differential pressures in laboratory and test applications. The inclined range bore has a length of 20" to provide ample multiplication of indicating fluid movement in this critical lower part of the range. Precision is Built to assure the device meets the highest standards.

Ranges and Dimensions - Suitable for Total Pressure up to 100 PSIG, Temperatures up to 150°F
Model	424-10	421-5	421-10	422-5	422-10
Inclined Range Inches of Water	0-2.0	0-1.0	0-1.0	0-1.0	0-1.0
Inclined Minor Div.	.01	.01	.01	.01	.01
Length of Inclined Scale	20"	6-1/2"	6-1/2"	6-1/2"	6-1/2"
Vertical Range Inches of Water	2.1-10	1.1-5	1.1-10	1.1-5	1.1-10
Vertical Minor Div.	.10	.10	.10	.10	.10
Length of Vertical Scale	9"	4-5/8"	10-1/8"	4-5/8"	10-1/8"
Dimensions
A	16-1/2"	9-7/8"	15-1/2"	10-1/2"	16-1/8"
B	25-1/4"	9-5/8"	9-5/8"	11-1/2"	11-1/2"
C	12-5/8"	4-7/8"	4-7/8"	5-1/8"	5-1/8"
D	1	5/8"	5/8"	5/8"	5/8"
E	10-1/2"	6-1/2"	6-1/2"	6-1/2"	6-1/2"
F	5-3/8"	3-1/4"	3-1/4"	3-1/4"	3-1/4"
G	16"	9-7/8"	15-1/2"	10-1/2"	16-1/8"
Weight lb-oz	22-12	4-12	6-10	6-10	10-13

Tech Specs

HVAC Equipment and Instruments/Manometer Template
Type (Manometer)	Inclined Tube Type (Manometer) Vertical
Max Pressure	10 IN of H2O
Engineering Units (HVAC)	inch H2O
Measurement	Differential
Test Equipment General Attributes
Unique Features	• Inclined range: 0-2.0" w.c., .01 min. div., 20" scale. • Vertical range 2.1-10" w.c., min. div. .10, 9" scale.
Warranty	1 YEARS
Warranty Details	The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller's option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused/altered.
Product Weight	22.75 LBS
Country of Origin	United States
