A new generation of high precision Druck pressure controller, designed for test bench, bench top and rack mount calibration, and automated test applications.
First in a new generation of modular, high precision Druck pressure controllers/indicators, designed for ATE and test bench applications.

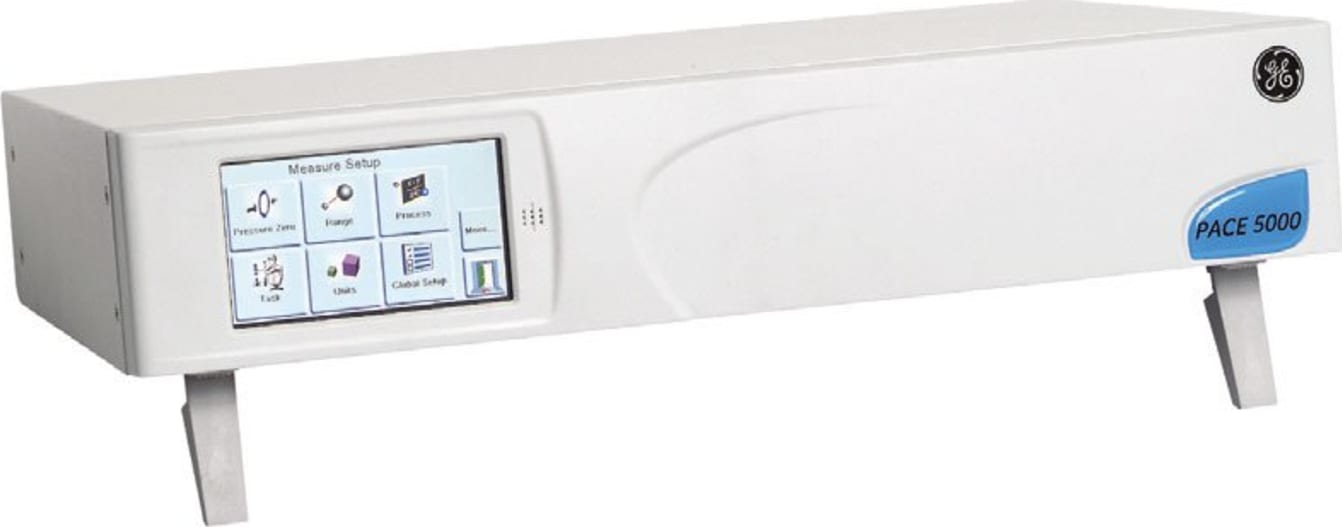

The new PACE5000 pneumatic pressure controller brings together the latest control and measurement technology from GE Sensing to offer an elegant and economical solution to pressure control for production, test and calibration.
It employs full digital control to provide high control stability and high slew rate, while its digitally characterized pressure sensor offers the quality, stability, higher bandwidth and precision associated with this latest generation of piezo-resistive devices.
Accurate and Stable
Based on the field-proven and highly reliable Druck control technology, the new PACE5000 offers significant improvements in overall precision, long-term measurement stability and control performance over previous generation instrumentation. As such, it is ideal for integration into automated processes where fast and accurate pressure control is required.
Ease of Operation
A touch screen and a high resolution, 1/4 VGA wide display ensure that the PACE5000 is extremely easy to operate and read. It features a simple icon menu to allow ease of use and comprehensive functionality and connectivity, via RS232 or IEEE. A USB communications port provides for easy PC connection, the use of set-up software and diagnostics download for technical support. Modularity means that 100% uptime is virtually guaranteed with replacement modules of the same pressure range or different pressure ranges easily interchangeable. Only the control module itself needs to be sent for recalibration.
Up-to-Date Instrument Status
The calibration and maintenance history of the PACE5000, along with its configuration, is stored within the instrument. The calibration history is automatically up-dated each time a calibration is carried out to ensure that calibration records are always up-to-date to meet quality assurance standards.
A Range of Languages
The default language of the PACE5000 is English but the major European languages, as well as Russian, Chinese and Japanese can be selected. Additional languages, to suit specific requirements, can be easily translated and downloaded.
Supporting Services
Our highly trained staff can support you, no matter where you are in the world. We can provide training, rental units, nationally accredited calibration - both initially and at periodic intervals - extended warranty terms, multi-year Services agreements and complementary services.
Proven Software
The PACE5000 has been designed to communicate with the GE Druck Intecal software, which was specifically developed to provide support for both laboratory and field calibrations. This provides easy control in a fully integrated pressure calibration loop, giving 100% automated calibrations of pressure transducers and transmitters. Intecal software has full documenting facilities to prepare reports and provide calibration certificates from its database, utilizing readout data from connected calibration equipment and test devices.
Control Module Choices
In Control mode, the PACE controller simultaneously measures and controls pressure. Control mode is commonly used in the automated calibration and testing of pressure devices, pressure instruments, pressure containing and pressure controlled equipment.
In Measure mode, the PACE controller measures pressure. Measure mode is commonly used in the calibration and testing of pressure devices and pressure instruments.
CM0 control module
Ideal for customers who require cost effective high speed pressure control such as in the manufacturing automated test arena, for customers calibrating low accuracy devices such as industrial pressure gauges, customers who require a pressure source for a calibration system that uses an alternative reference.
CM1 control module
Ideal for customers who require a high speed pressure control with good levels of precision such as in the manufacturing automated test arena, for customers calibrating devices such as industrial transmitters, test pressure gauges, customers who require a pressure source for a calibration system that uses an alternative reference.
CM2 control module
Ideal for customers who require a high speed pressure control with very high levels of precision such as in the manufacturing automated test arena, for customers calibrating devices such as industrial transmitters, test pressure gauges.
Pneumatic Connections
A PACE control module ideally should be connected to both a positive source pressure and a negative source pressure, however PACE controllers can be used with only a positive source pressure but this will affect the control speed to zero gauge pressure. All connections made to PACE should be dry oil free gas; this includes the positive source, the negative source and the output. On this slide we can see how a customer should connect a PACE CM using only a positive source or using both a positive and a negative source.
