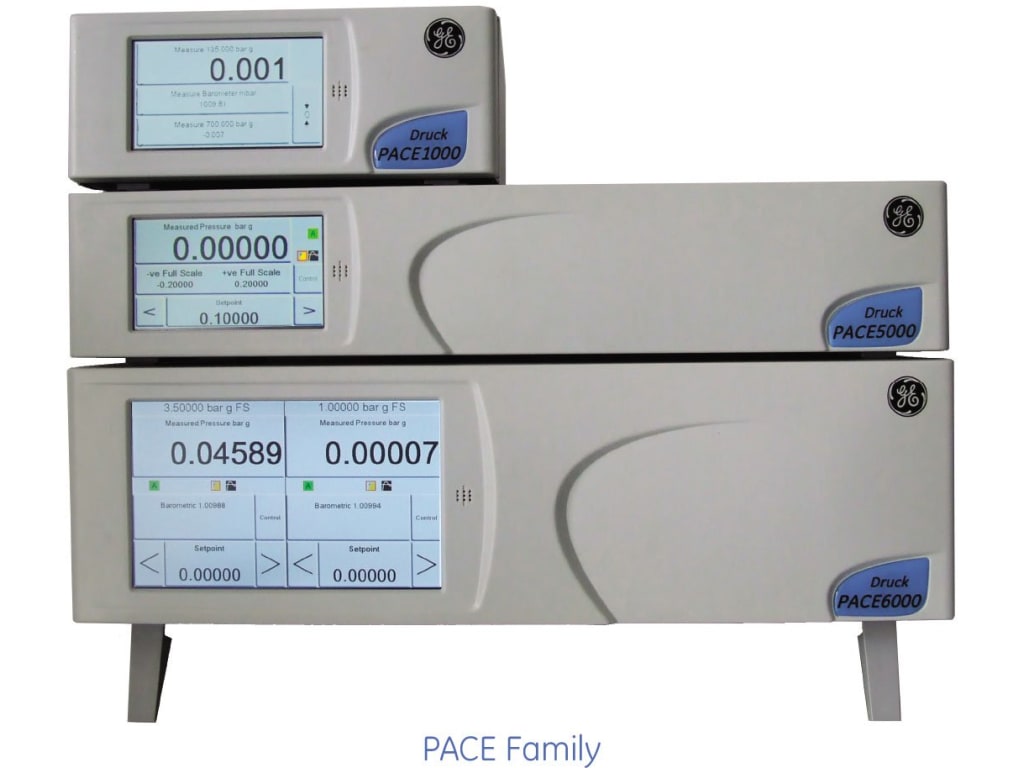

| GE Druck Pace1000 General Specifications |
| Pressure measurement |
| IPS pressure ranges |
25, 70, 200, 350 and 700 mbar gauge, 1, 2, 3.5, 7, 10, 20, 35, 70, 100, 135, 172, 210 bar gauge, 350, 420, 700 & 1000 bar absolute
0.35, 1, 3, 5, 10, 15, 30, 50, 100, 150, 300, 500, 1000, 1500, 2000, 2500, 3000 psi gauge, 5000, 6000, 10000 & 14500 psi absolute
2.5, 7, 20, 35, 70, 100, 200, 350, 700 kPa gauge, 1, 2, 3.5, 7, 10, 13.5, 17.2, 21 MPa gauge, 35, 42, 70 & 100 MPa absolute
All gauge versions available with negative calibration as standard. For pseudo absolute/gauge pressure range – select any range and add barometric option |
| IRS pressure ranges |
35-1300, 35-2600 & 35-3500 mbar absolute
0.5-19, 0.5-38 & 0.5-50 psi absolute
3.5-130, 3.5-260 & 3.5-350 kPa absolute |
| IRS-B barometric reference ranges |
750-1150 mbar absolute, 10.9-16.7 psi absolute, 75-115 kPa absolute |
| Over range indication |
10% above mbar/bar full scale pressure range. |
| Pressure media |
Not suitable for use with Oxygen
Pressure ranges 3.5 bar and above compatible with Stainless Steel 316 and Hastelloy C 276
Gauge ranges below 3.5 bar and absolute ranges below 3500 mbar abs: Dry, oil free, non-corrosive gas or air.
For low pressure ranges below 350 mbar or 5 psi, please consult your sales representative |
| Display |
| Panel |
¼ VGA wide format 4.3 inch colour graphics LCD c/w integral touch screen |
| Comms update rate |
8 times per second |
| Display update rate readout |
2 times per second
± 9999999 |
| Pressure units |
mbar, bar, Pa(N/m 2 ), hPa, kPa, MPa, mmHg @ 0°C, cmHg @ 0°C, mHg @ 0°C,, inHg @ 0°C, mmH 2 O @ 4°C, cmH 2 O @ 4°C, mH 2 O @ 4°C, mmH 2 O @ 20°C, cmH 2 O @20°C, mH 2 O @ 20°C, kg/ m 2 , kg/cm 2 , torr, atm, psi, lb/ft 2 , inH 2 O @ 4°C, inH 2 O @ 20°C, inH 2 O @ 60°F, ftH 2 O @ 4°C, ftH 2 O @ 20°C, ftH 2 O @ 60°F, User Defined 1, User Defined 2, User Defined 3, User Defined 4 (Feet & Meters in Airfield task) |
| Performance over the calibrated temperature range |
| IPS0 standard precision |
0.02% Rdg + 0.02% FS (25 mbar: 0.20% Rdg + 0.20% FS, 70 mbar: 0.10% Rdg + 0.10% FS, 200 mbar: 0.04% Rdg + 0.04% FS) includes linearity, hysteresis, repeatability and temperature effects, assumes steady state temperature and regular zeroing (for absolute ranges an IRS-B needs to be installed) |
| IPS1 high precision |
0.01% Rdg + 0.01% FS (25 mbar: 0.10% Rdg + 0.10% FS, 70 mbar: 0.05% Rdg + 0.05% FS, 200 mbar: 0.02% Rdg + 0.02% FS) includes linearity, hysteresis, repeatability and temperature effects, assumes steady state temperature and regular zeroing (for absolute ranges an IRS-B needs to be installed) |
| IPS2 premium precision |
0.005% Rdg + 0.005% FS (25 mbar: 0.05% Rdg + 0.05% FS, 70 mbar: 0.025% Rdg + 0.025% FS, 200 mbar: 0.01% Rdg + 0.01% FS) includes linearity, hysteresis, repeatability and temperature effects, assumes steady state temperature and regular zeroing (for absolute ranges an IRS-B needs to be installed). |
| IPS long term stability |
0.01% Rdg per annum 2 bar to 1,000 bar (30 psi to 14,500 psi). 0.02% Rdg, 1bar & 0.03% Rdg, 25 mbar - 700 mbar. Assumes regular zeroing (for absolute ranges an IRS-B needs to be installed). |
| Negative gauge precision |
Maximum error at any given pressure value is equal to maximum error at the equivalent positive pressure value. |
| IRS0 standard precision |
0.01% FS includes linearity, hysteresis, repeatability and temperature effects |
| IRS1 high precision |
0.005% FS includes linearity, hysteresis, repeatability and temperature effect |
| IRS0-B standard precision barometric reference |
Precision for the optional barometric reference 0.10 mbar or 0.001450 psi. Includes non-linearity, hysteresis, repeatability and temperature effects between 15°C (59°F) and 45°C (113°F). |
| IRS1-B high precision barometric reference |
Precision for the optional barometric reference 0.05 mbar or 0.000725 psi. Includes non-linearity, hysteresis, repeatability and temperature effects between 15°C (59°F) and 45°C (113°F). |
| IRS2-B premium precision barometric reference |
Precision for the optional barometric reference 0.025 mbar or 0.0003625 psi. Includes non-linearity, hysteresis, repeatability and temperature effects between 15°C (59°F) and 45°C (113°F) |
| IRS long term stability |
0.01% FS per annum, barometer 0.1 mbar/0.001450 psi per annum |
| Pseudo absolute mode precision |
Gauge mode precision + absolute mode reference precision |
| Electrical |
| Power Supply |
90 VAC to 130 VAC @ 47 to 63 Hz & 180 VAC to 260 VAC @ 47 to 63 Hz. 15 VA |
| Communications |
| Communication |
RS232, USB and IEEE-488, SCPI, DPI141, DPI142 and DPI150 emulation. LabVIEW drivers Ethernet (VXI-II & Sockets using SCPI). |
| Data log |
Display screen shot stored in CSV format, onto memory card or external USB storage device. User defined update rate from 1 second. |
| Environmental |
| Temperature |
Operating |
10°C to 50°C (50°F to 122°F) |
| Calibrated |
15°C to 45°C (59°F to 113°F) |
| Storage |
-20°C to 70°C (-4°F to 158°F) |
| Sealing |
IP20 (EN60529), indoor use only |
| Humidity |
5% RH to 95% RH non-condensing. |
| Vibration |
Compliant with Def. Stan. 66-31 8.4 Cat 3 and MIL-T-28800E Cat 2 |
| Shock |
Mechanical shock conforms to EN61010 |
| Conformity |
Electrical safety - Global (IEC61010-1, UL61010-1, CSA 22.2, No. 61010-1 and CB test certificate), LVD (EN 61010-1). EMC EN61326, PED, ROHS & WEEE. CE marked |
| Physical |
| Weight |
3.2kg (excluding external PSU & packaging) to 6.5 lbs (including external PSU & packaging) |
| Dimensions |
218 mm wide x 88mm (2U) high x 250 mm deep (8.6in x 3.5 (2U) x 9.8 in) |
| Pressure connection |
G 1/8 Female (1/8 NPT Female by adaptor, standard for North America) 25 mbar to 210 bar. 9/16 18 UNF Autoclave male 350 bar to 1000 bar. |
