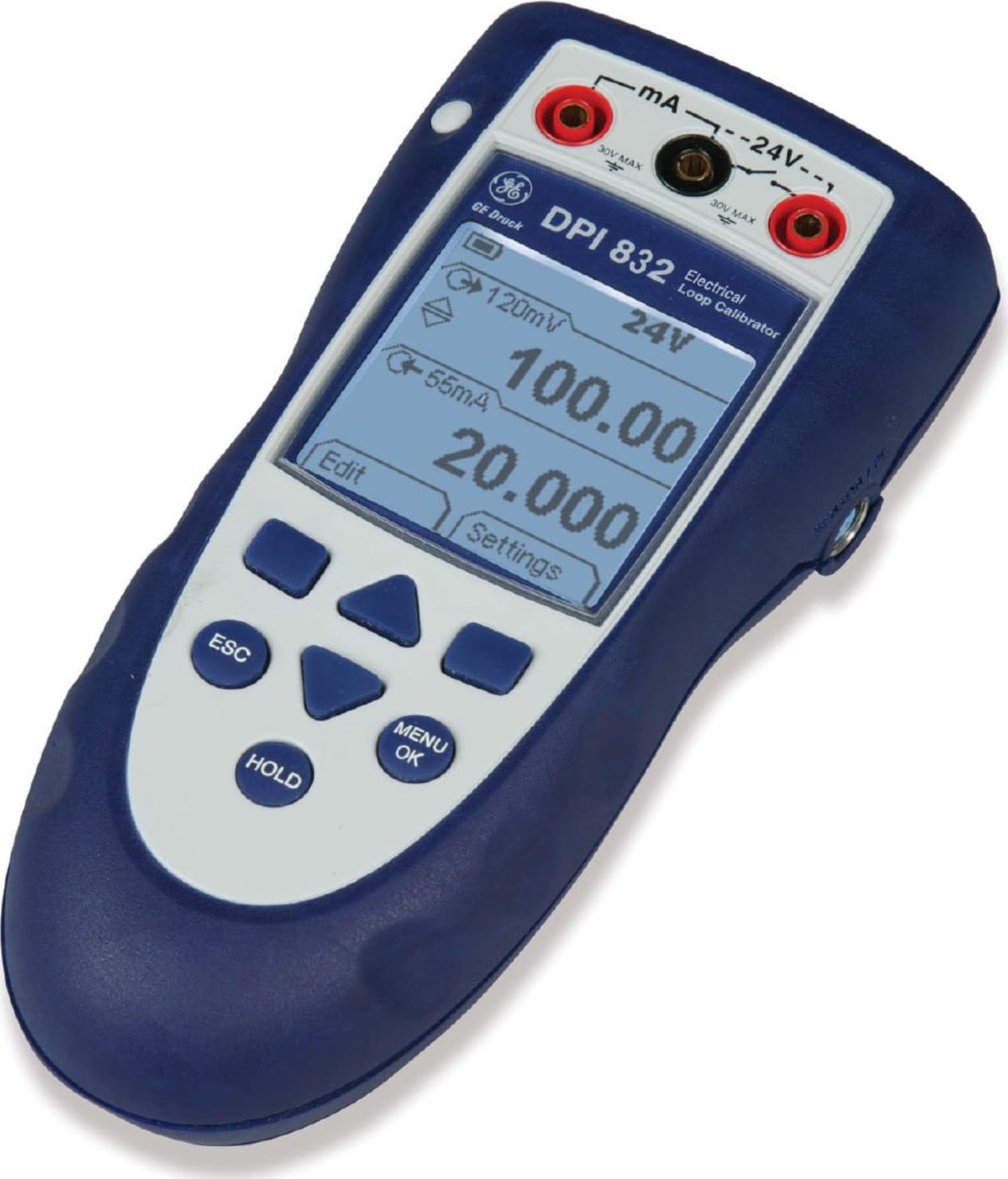

Druck DPI 832 - Electrical Loop Calibrator

The DPI 832 electrical loop calibrator is a compact, easily portable solution for your loop calibration needs. Highly cost effective, these tools are ideal for test/calibration of many popular process parameters. Advanced features and technical innovations address more applications in less time and deliver results you can rely on.

• DPI 832 Electrical Loop Calibrator
  Measures or sources mA, mV, V and captures switch trip values. It is the ideal instrument for process technicians to check and maintain transmitters, control loops, DCS, PLC input cards and signal conditioners.
• Programmable Step and Ramp Outputs
  Simplify calibrations and facilitate system diagnostic checks. The ramp output provides a stimulus for rate of change indicators.
• Adjustable "Nudge" Value
  Provides an incremental output for accurately setting valve positioners and testing switches, relays, trips and alarms
• Simultaneous Dual Readings
  Simplify transmitter set-up and calibration; for example, source mV, V or mA and measure mA
• Advanced Features
  Hold, maximum/minimum/average (with time stamp), scaling, tare (offset) and damping filter facilitate system checks and troubleshooting
• Two Independent 24 V Power Supplies
  Energize transmitters and control loops
• Automatic Switch Test
  Captures open/closed trip values providing a fast and highly accurate "safety system" check

IDOS Flexibility

Intelligent Digital Output Sensor (IDOS)
Universal Pressure Modules are available from 10 in H2O to 10,000 psi (25 mbar to 700 bar).

Total Flexibility
IDOS modules can be used with any compatible instrument; for example, a DPI 832 electrical loop calibrator can become a fully featured pressure calibrator.


Applications

• Process instrument test and maintenance
• Control loop setup and diagnostics
• Set-up DCS, PLC and signal conditioners
• Valve positioner adjustment
