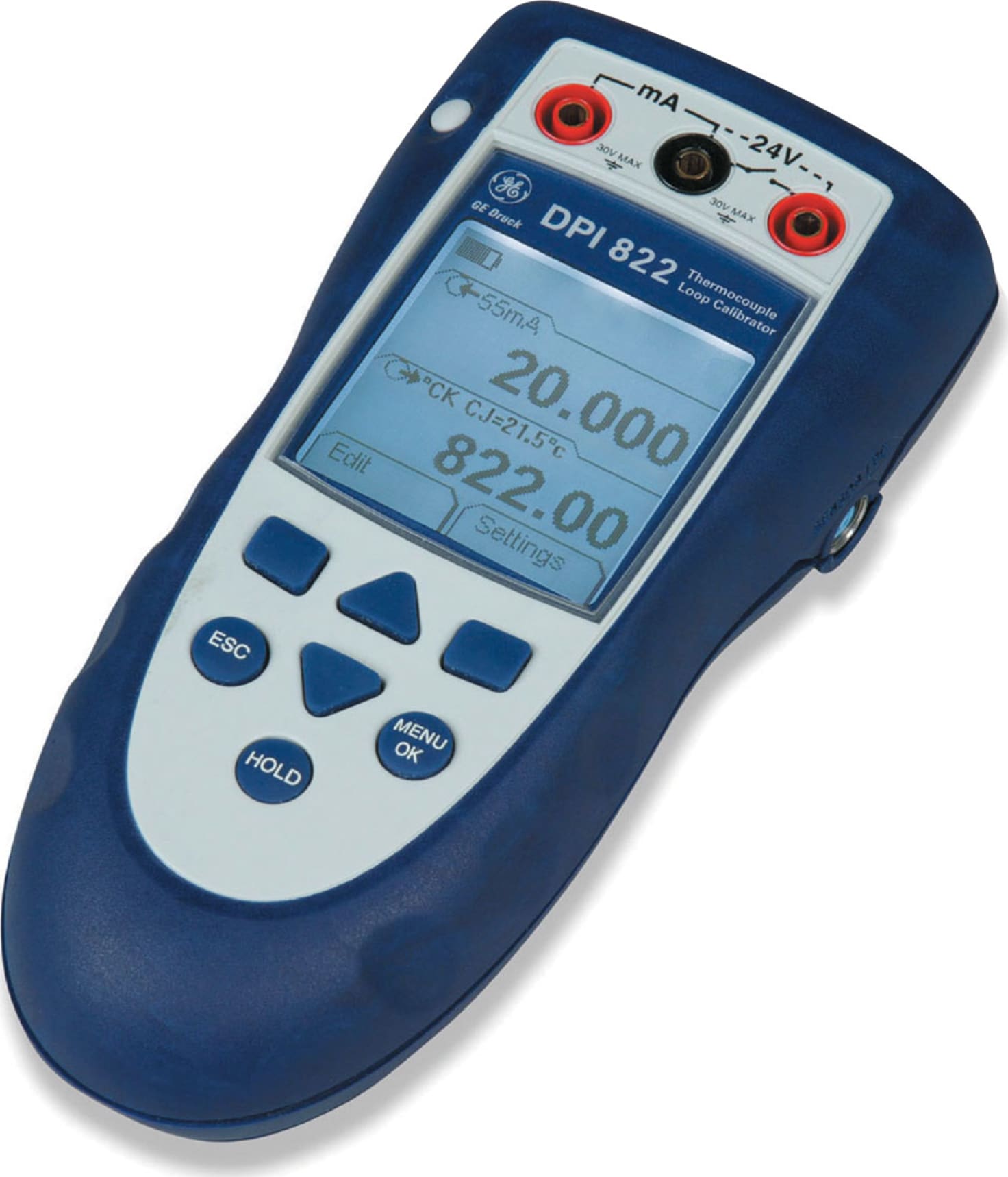

Druck DPI 822 - Thermocouple Calibrator

GE's DPI 822 Series is a complete range of advanced, robust and simple to use hand-held instruments. Highly cost effective, these tools are ideal for test/calibration of many popular process parameters. Advanced features and technical innovations address more applications in less time and deliver results you can rely on.


Applications

• Temperature test and maintenance
• Transmitter calibration
• Loop set-up and diagnostics
• Switch testing

Temperature Instrumentation and Loop Maintenance

• DPI 822 Thermocouple Loop Calibrator
  Provides simultaneous RTD output and mA measurement for transmitter/loop maintenance.
• 24V Loop Power Supply
  Energizes transmitters and control loops.
• Automatic Switch Test
  Captures open/closed trip values providing a fast and highly accurate “safety system” check.
• HART Resistor
  Can be switched into the loop when required by a HART digital communicator and avoids the inconvenience of carrying a 250 Ω resistor.

IDOS Flexibility

• Intelligent Digital Output Sensor (IDOS)
  Universal Pressure Modules are available from 10 in H2 O to 10,000 psi (25 mbar to 700 bar).
• Automatic Switch Test
  IDOS modules can be used with any compatible instrument; for example, a DPI 812 RTD loop calibrator can become a fully featured pressure calibrator.
