Druck DPI 802 - Single and Dual Pressure Calibrator with Loop Maintenance

Name: Druck DPI 802 - Single and Dual Pressure Calibrator with Loop Maintenance
Brand: Druck
SKU: DruckDPI 802
Price: 2086.00 USD
Availability: InStock

0 reviews | Catalog: DPI802 | Model: Druck DPI 802

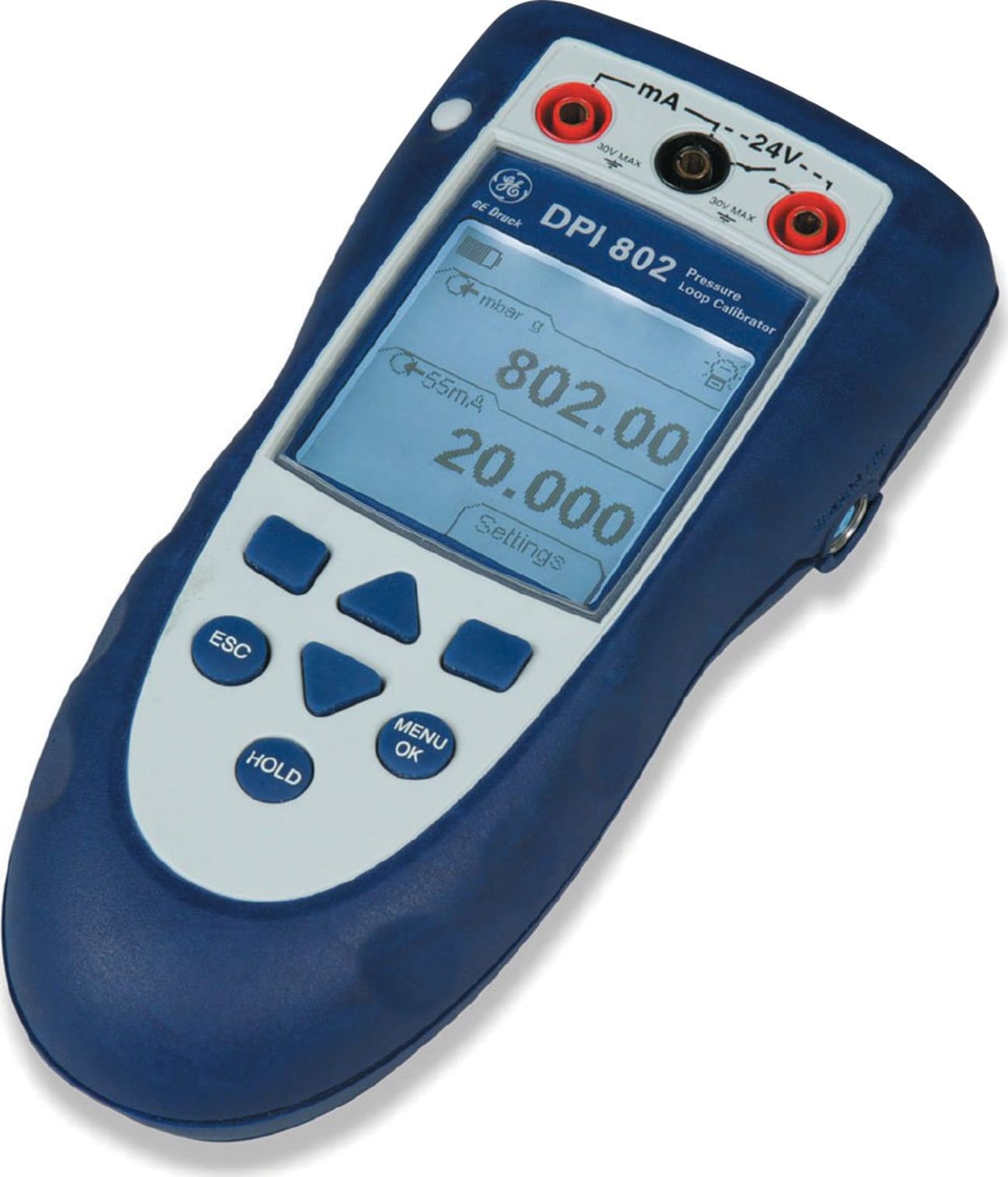

GE-Druck-DPI-800-802-Pressure-Indicator-Loop-Calibrator

Compare

DPI 802 / 802P Single and Dual Pressure Calibrator with mA measure, switch test and 24V loop power. Available in Standard and Premier Accuracy. Ranges from 10 inH2O to 10,000 psi (25 mbar to 700 bar) depending on model. 1/8 NPT female connection

Ranges from 10 inH2O to 10,000 psi (25 mbar to 700 bar)
Single or dual range configuration
DPI 802 Only: mA measure, switch test and 24V loop power
DPI 802 Only: HART ® loop resistor
Optional Expandable IDOS pressure sensors provide accuracies to 0.05% FS all-inclusive or 0.01% precision
Large backlit display, menu driven interface
Robust and weatherproof
Compact, simple to use, easy to carry
Convenient, one-handed operation
Secure grip, impact resistant, elastomer protected
Plug/play connector for IDOS Universal Measurement Modules

View Product Details

From: $2,086.00 - $3,725.00

In Stock:

Customize the item below to add to cart.

Non-Cancellable / Non-Returnable

Customize Your Product

Part Number: DPI802

Price: $2,086.00

ADD TO CART

Add to Quote

Items in This Series



Product	Druck DPI 802 DPI 802 / 802P Single and Dual Pressure Calibrator with mA measure, switch t ...	Druck DPI 800 DPI 800 / 800P Single and Dual Pressure Calibrator available in Standard and ...	Druck DPI800S -15 to 100PSIG Single Pressure Calibrator, -15 to 100 PSIG Range, 0.05% Accu ...
Price
In Stock
Absolute Pressure	Yes	Yes	No
Gauge Pressure	Yes	Yes	Yes
Differential Pressure	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Druck DPI 802 Accessories

Choose a Category

for the Druck DPI 802

Druck IO800C DPI800 NiMh Batteries with Charger

Catalog: IO800C

(0)

In Stock!

Add to Cart

Druck IO800D DPI800 RS232 Serial Lead for IDOS

Catalog: IO800D

(0)

In Stock!

Add to Cart

Druck IO800A DPI800 Carrying Case

Catalog: IO800A

(0)

In Stock!

Add to Cart

Druck IO800B DPI800 Belt Clip, Wrist Strap, Bench Stand

Catalog: IO800B

(0)

In Stock!

Add to Cart

Druck IDOS-UPM Intelligent Digital Output Sensors (IDOS) - Universal Pressure Modules

Catalog: IUPM

(0)

In Stock!

Add to Cart

Druck IO800E Data-Logging Upgrade IDOS Software-Key and RS232 Lead

Catalog: IO800E

(0)

In Stock!

Add to Cart

Druck DPI 802

Robust and weatherproof
Compact, simple to use, easy to carry
Convenient, one-handed operation
Secure grip, impact resistant, elastomer protected

Single and Dual Pressure Calibrator with Loop Maintenance

GE's DPI 800 Series is a complete range of advanced, robust and simple to use hand-held pressure indicators and loop calibrator instruments. Highly cost effective, these tools are ideal for test/calibration of many popular process parameters. Advanced features and technical innovations address more applications in less time and deliver results you can rely on from one year to the next, even in tough environmental conditions.

Applications

Pressure test and maintenance
Transmitter calibration
Loop set-up and diagnostics
Switch verification

GE Druck DPI 802 General Specifications
Languages	English [Default]
Operating temperature	14 … 122°F (-10 … 50°C)
Storage temperature	-4 … 158°F (-20 … 70°C)
Humidity	0 to 90% without condensation (Def Stan 66-31, 8.6 cat III)
Shock/Vibration	BS EN 61010:2001; Def Stan 66-31, 8.4 cat III
EMC	BS EN 61326-1:1998 + A2:2001
Safety	Electrical - BS EN 61010:2001; Pressure Equipment Directive - Class: Sound Engineering Practice (SEP); CE Marked
Size (L: W: H)	Maximum: 7.5 x 3.3 x 2.0 in (190 x 85 x 50 mm)
Weight	19 oz (530 g)
Power supply	3 x AA alkaline batteries
Duration (Measure)	P1: ≈ 50 hours P1 + mA: ≈ 5 hours (24 V Source at 12 mA)

Pressure measurement Specification
The % full scale (FS) statements for Standard accuracy and Premier precision are only applicable if there is a regular zero correction by the IDOS instrument.
Ranges: Gage and differential operation (g/d), sealed gage (sg), absolute (a)	Type	Standard Accuracy * % FS	Premier Precision † % FS	Notes
+/- psi: 0.36 (+/- mbar: 25)	g/d	0.1	0.03	1/2
+/- psi: 1, 3, 5, 10 (+/- mbar: 70, 200, 350, 700)	g/d	0.075	0.03	1/2
psi: -15 to [15 or 30] (bar: -1 to [1 or 2])	g/d	0.05	0.01	1/2
psi: -15 to [50, 100, 150, or 300] (bar: -1 to [3.5, 7, 10, or 20])	g/d	0.05	0.01	1/3
psi: 500, 1000, 1500, 2000, 3000 (bar: 35, 70, 100, 135, 200)	g/d	0.05	0.01	1/3
psi: 5 (mbar: 350)	a	0.1	-	2
psi: 30 (bar: 2)	a	0.075	-	2
psi: 100, 300 (bar: 7, 20)	a	0.075	-	3
psi: 5000, 10000 (bar: 350, 700)	sg	0.05	-	3
* Standard accuracy is for 32 … 122°F (0 … 50°C); Stability: 1 year † Premier precision is for 65 … 82°F (18 … 28°C); Stability: ≤ 10 psi (700 mbar) = 0.02% of reading/Year Stability: > 10 psi (700 mbar) = 0.01% of reading/Year Premier precision for 41 … 113°F (5 … 45°C): ≤ 10 psi (700 mbar): 0.075% FS > 10 psi (700 mbar): 0.014% FS
Notes: 1. Reference port media: Non-corrosive, dry gas 2. + port media: Non-corrosive, non-conductive liquid or Non-corrosive, dry gas 3. + port media: Media applicable to stainless steel

	DPI 800	DPI 802
Type	p	p
Indicator (measure pressure)	✔	✔
Calibrator (measure or source)
Thermometer (dual input T1, T2, T1 - T2)
Dual Capability
mA measure with 24 V loop power		✔
Switch test		✔
HART resistor		✔
IDOS Universal Measurement Modules	❶	❶
Features
Programmable step and ramp output
Hold, scaling, max/min/avg, filter, alarm, tare	✔	✔
25 pressure units, flow scaling, leak test	✔	✔
1000 point data memory, RS232	❸	❸
Applications
Measurement and monitoring	✔	✔
Indicator, controller and recorder testing	✔	✔
Transmitter maintenance and calibration		✔
Process loop set-up and maintenance		✔
Switch, trip and safety system testing		✔
❶ Optional (please refer to IDOS datasheet) ❷ When fitted with IDOS pressure module ❸ Optional (please refer to accessories IO800E).

Process / Calibration/Pressure Calibration/Pressure Calibrators Template
Absolute Pressure	Yes
Gauge Pressure	Yes
Differential Pressure	Yes
Simulate Loop Voltage	No
Source/Simulate DC Current	No
Measure DC Current	Yes
Test Equipment General Attributes
Product Weight	500 GRAMS (1.10 LBS)
Shipping Weight	1.00 LBS
HTS/Schedule B Number	9030.39.0100
ECCN Number	EAR99
Battery Type	AA Battery Type 3 x AA Alkaline
Country of Origin	United Kingdom
