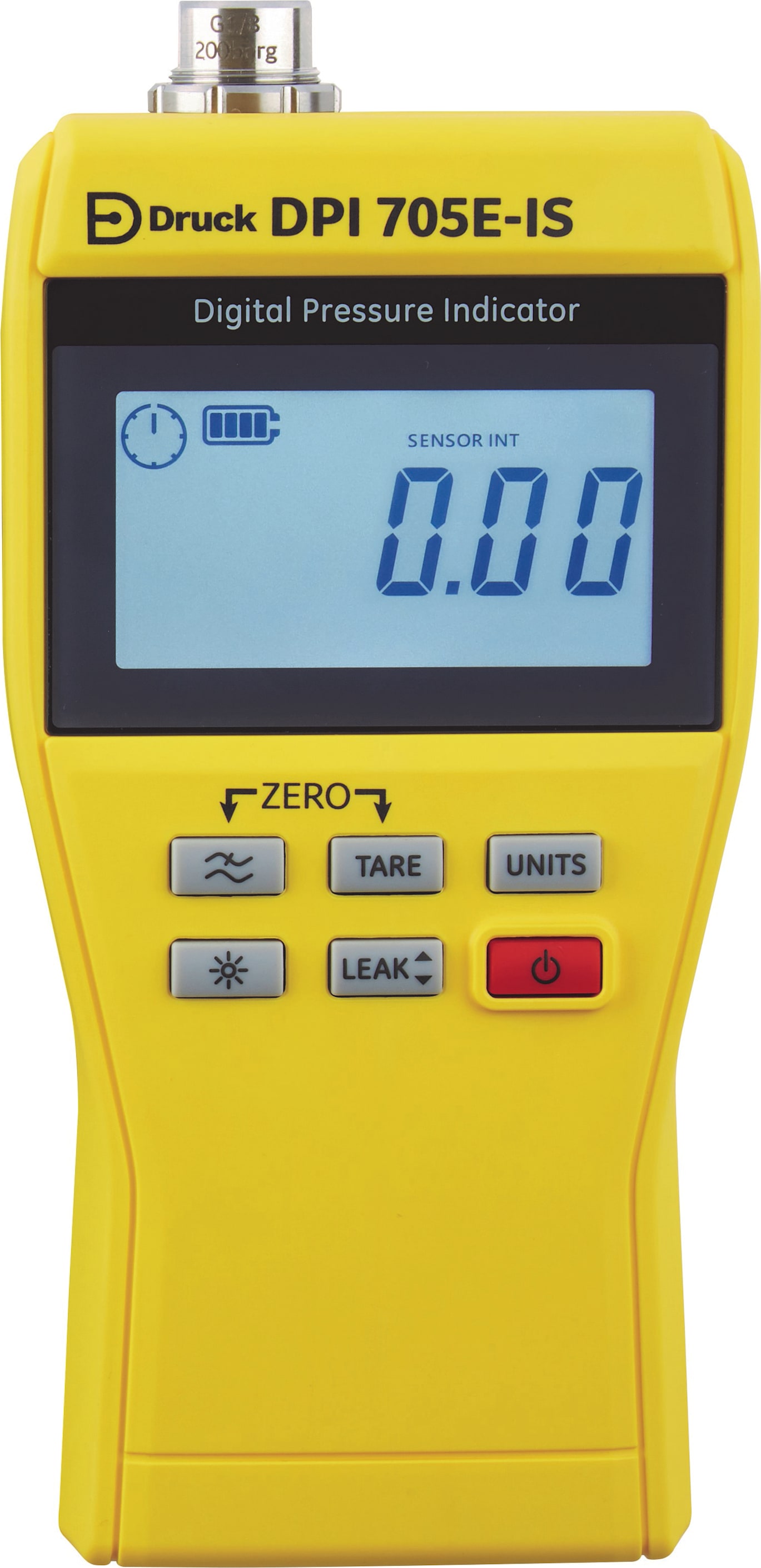

Intrinsically Safe Pressure Indicator with Internal Sensor
DPI 705E Series Druck Handheld Pressure Indicators
The Druck DPI 705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements. Compact and robust, the DPI 705E Series is designed for single-handed operation and provides many essential features required for routine maintenance and system troubleshooting.
DPI 705E Improves Test Efficiency
- Power on and use. No warm-up time is required.
- 19 pressure measurement units (See below)
- 1, 3 or 5-minute leak test
- Impact-resistant, sealed to IP54
- Large digit high-contrast LCD with backlight
- Optional carrying case with belt loop
- Optional magnetic/loop hanging strap
- Long battery life
- Integral desk stand and hanger
Special Features Pressure Units
- mbar, bar, Pa, hPa, Pa, MPa, psi , lb/ft2, kgf/cm2, kgf/m2, mmHg(0°C), mHg(0°C), inHg 0, mmH2O, cmH2O, mH2O, inH2O (4°C, 20°C), ftH2O (4°C, 20°C)
Calibration Certificates
- Supplied as standard with bar, psi and kPa
- Optional UKAS approved calibrations available
Zero
Zero pressure correction (gauge/differential sensors)
Tare
0 to 100% FS temporary zero offset capability by subtracting the current reading from subsequent measurements.
