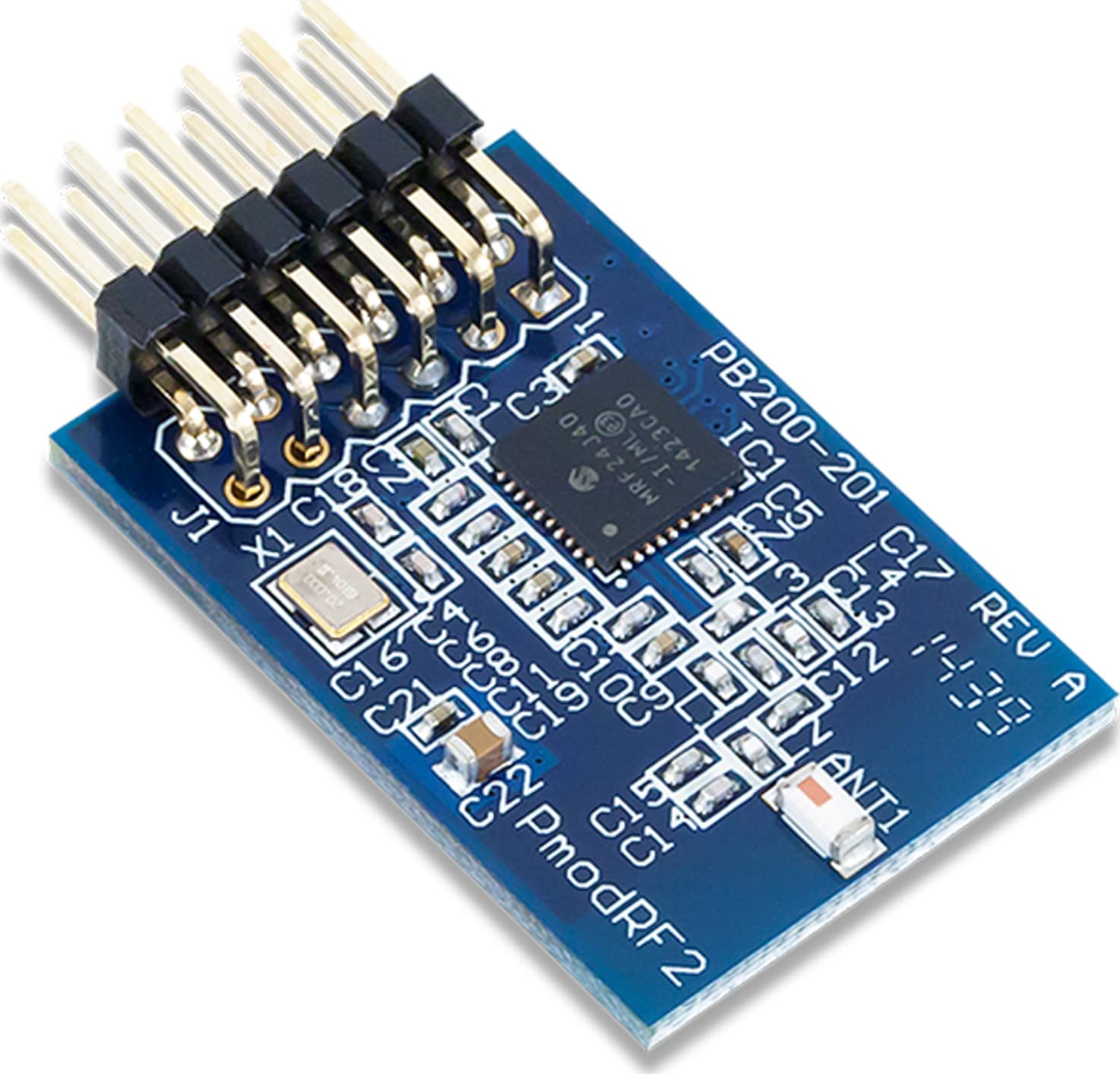

PmodRF2: IEEE 802.15 RF Transceiver

IEEE 802.15-compliant RF transceiver
Supports ZigBee, MiWi and MiWi P2P wireless networking protocols
ISM band 2.405-2.48 GHz operation
Integrated 20 MHz and 32.768 oscillator circuitry
Small PCB size for flexible designs 1.2" × 0.8" (3.0 cm × 2.0 cm)
12-pin Pmod connector with SPI interface

View Product Details

Your Price: $13.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Digilent PmodRF2

IEEE 802.15-compliant RF transceiver
Supports ZigBee, MiWi and MiWi P2P wireless networking protocols
ISM band 2.405-2.48 GHz operation
Integrated 20 MHz and 32.768 oscillator circuitry

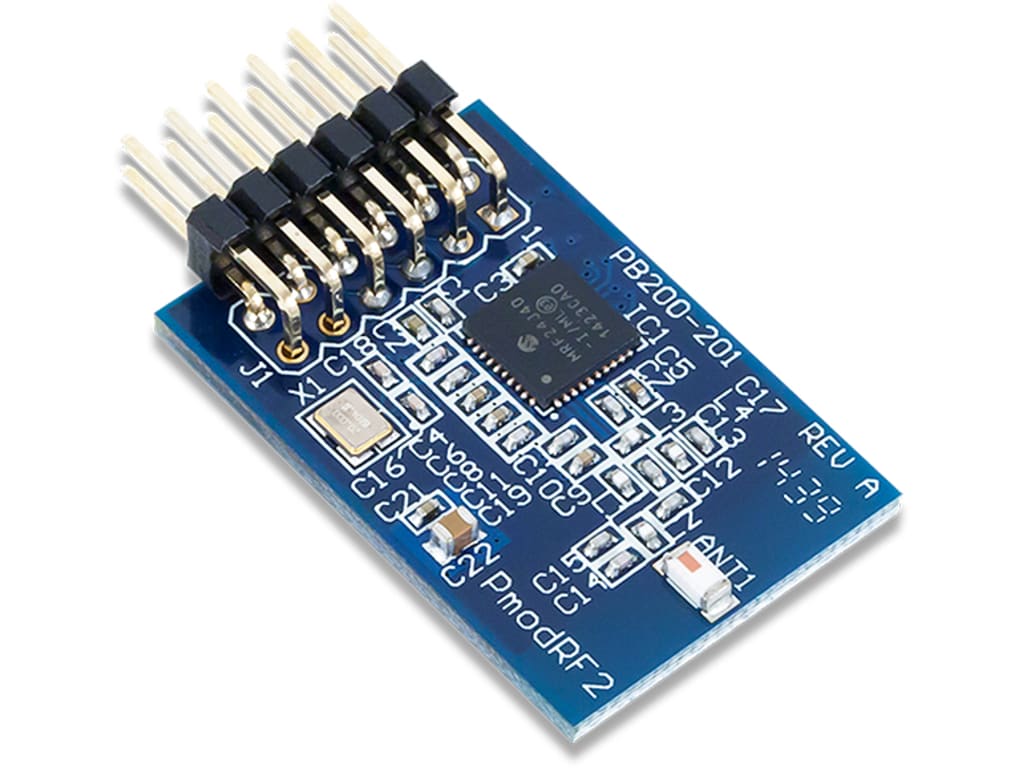

IEEE 802.15 RF Transceiver

The Pmod RF2 adds RF communication through the Microchip® MRF24J40 IEEE 802.15.4™ 2.4GHz RF transceiver module. By communicating with the device through SPI, users can transmit data at speeds up to 625 kbps through the ZigBee®, MiWi™, and MiWi P2P software stacks all available for download at the Microchip website: www.microchip.com/wireless.
