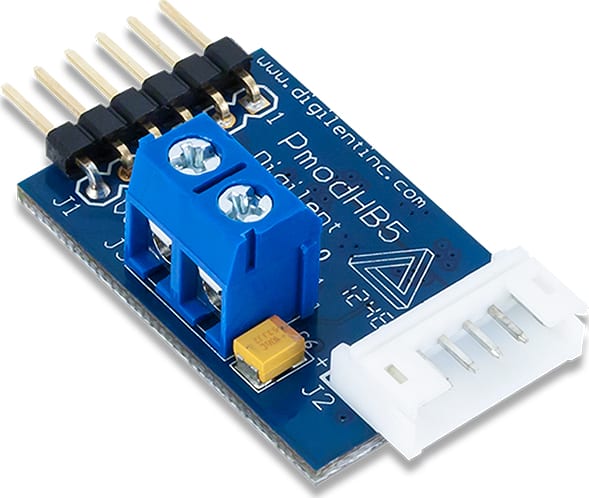

H-bridge Driver with Feedback Inputs
The Pmod HB5 offers a 2A H-bridge circuit to drive small- to medium-sized DC motors. Two sensor feedback pins are incorporated into the motor connection header and are specifically designed to work with the Digilent motor/gearbox, which incorporates quadrature encoder feedback.
