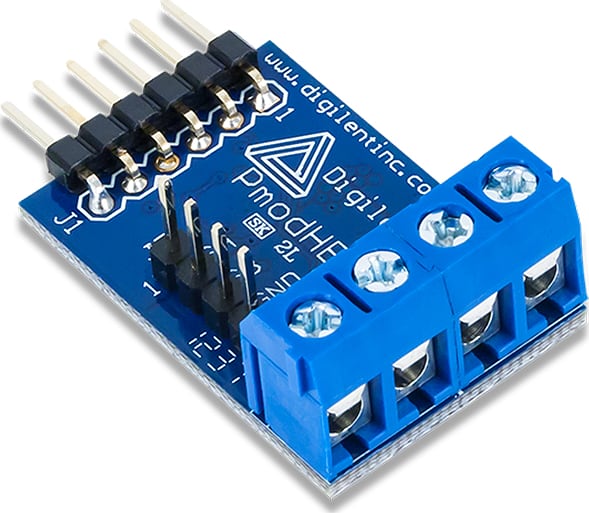

Digilent PmodHB3 - H-bridge Driver with Feedback Inputs

Name: Digilent PmodHB3 - H-bridge Driver with Feedback Inputs
Brand: Digilent
SKU: DigilentPmodHB3
Price: 9.99 USD
Availability: InStock

0 reviews | Catalog: 410-069 | Model: Digilent PmodHB3

Compare

PmodHB3: H-bridge Driver with Feedback Inputs

2A H-bridge circuit
Drive a DC motor with operation voltage up to 12V
Screw terminal blocks for connection to the motor
Separate header for external motor feedback
Small PCB size for flexible designs 1.2 in x 0.8 in (3.0 cm x 2.0 cm)
6-pin Pmod port with GPIO interface

View Product Details

Your Price: $9.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Digilent PmodHB3

2A H-bridge circuit
Drive a DC motor with operation voltage up to 12V
Screw terminal blocks for connection to the motor
Separate header for external motor feedback

H-bridge Driver with Feedback Inputs

The Pmod HB3 is a 2A H-Bridge module. This module includes a separate pin header in addition to the standard 6-pin header to receive any external motor feedback signals. The H-Bridge can be driven through GPIO signals.
