Audio Amplifier

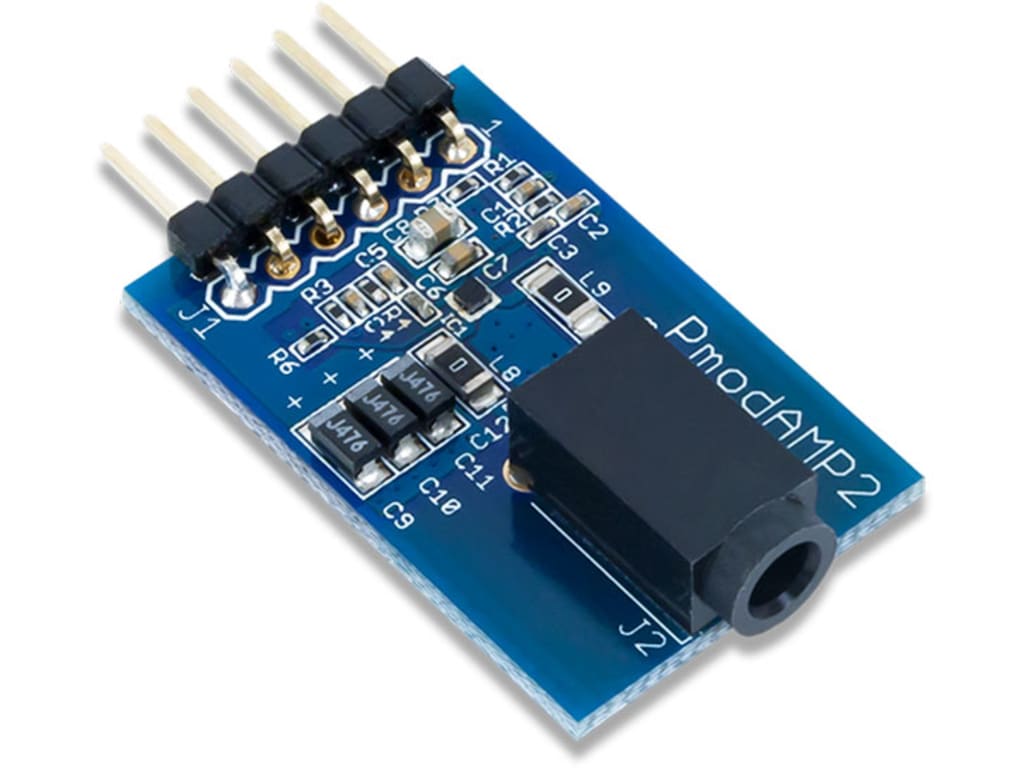

The Digilent PmodAMP2 amplifies low-power audio signals to drive a monophonic output. This module offers a digital gain select to allow output at a 6 or 12 dB gain with pop-and-click suppression.
Functional Description
The PmodAMP2 utilizes Analog Devices SSM2377 Mono Class-D audio amplifier. This module is designed to accept an analog voltage signal as the incoming audio input, although a pulse-width modulated signal can also be easily accepted after it passes through the reconstruction filter. A Σ-Δ modulator internal to the SSM2377 nicely smooths out the incoming analog signal to get a clean audio output signal.
Interfacing with the Pmod
The PmodAMP2 communicates with the host board via the GPIO protocol. What this entails for us is that there is not a timing protocol that we need to follow. Rather, as long as your incoming digital data has a sample rate of at least 16 kHz, the amplifier will be able to nicely handle the incoming data. Alternatively, an analog signal can be provided and will also result in corresponding sound output.
A gain selection pin and active-low shutdown pins are also available for use. When the gain pin is driven high there is a 6 dB gain applied to the incoming audio signals and a 12 dB gain applied to audio signals when the pin is driven low.
The shutdown pin can be driven to a logic low level to place the SSM2377 into a very low power state with a shutdown current of only 100 nA placing very little strain on the power source. The Pmod can be brought back into normal operation mode by bringing the shutdown pin back to a logic high level for a maximum speaker output of 2.5W.
Physical Dimensions
The pins on the pin header are spaced 100 mil apart. The PCB is 1.25 inches long on the sides parallel to the pins on the pin header and 0.8 inches long on the sides perpendicular to the pin header.
