• 16 single-ended (SE) or eight differential (DIFF) analog input channels
• Up to eight analog inputs can be configured for thermocouples measurements
• 24-bit resolution
• 1 kS/s sample rate
• Two 16-bit analog output channels

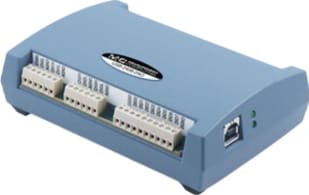

The Digilent MCC USB-2408-2AO is a high-precision thermocouple and voltage measurement USB DAQ device. The device provides up to 16 single-ended (SE)/8 differential (DIFF) analog inputs, 8 digital I/O, two counter inputs, and two analog outputs. The USB-2408-2AO offers a 24-bit resolution for ultra-accurate voltage or thermocouple measurements.

Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.

USB-2408-2AO functions are illustrated in the block diagram shown below.
