• TC-32: 32 thermocouple inputs and 40 digital I/O
• 24-bit resolution
• 3 S/s/ch sample rate
• Supports thermocouple types J, K, R, S, T, N, E, and B
• 40 digital I/O (80 digital I/O when using TC-32-EXP)

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

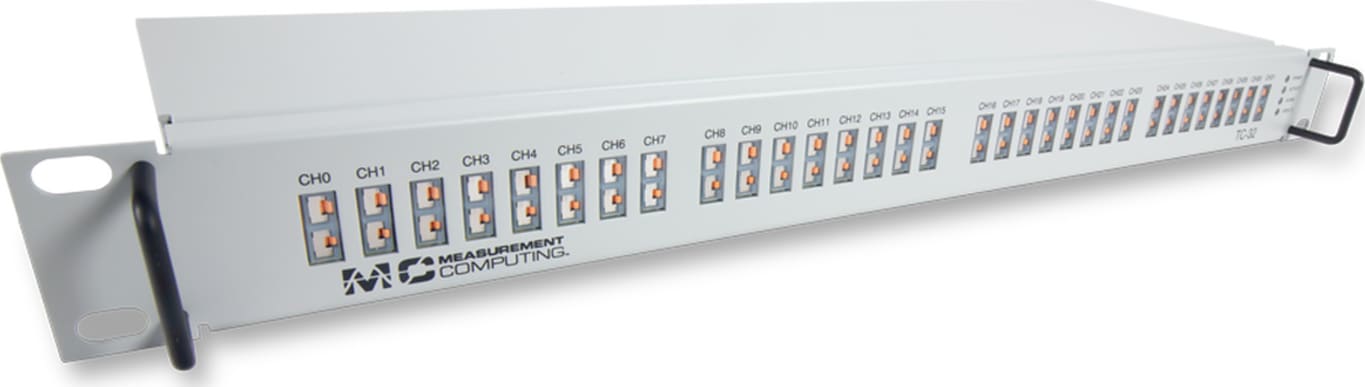

The TC-32 is a thermocouple measurement system and includes both USB and Ethernet interfaces. It features 32 channels (expandable to 64 using TC-32-EXP), 24-bit resolution for making precision temperature measurements, 3 S/s/ch sample rate, 8 digital inputs, and 32 digital outputs (expandable to 80 digital I/O).

The TC-32 is ideal for high-channel-count temperature applications. The system can also be rack-mounted.

Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.
