•  High accuracy dynamic signal acquisition module for noise, vibration, and acoustic measurements
•  Eight (8) 24-bit IEPE sensor inputs
•  Up to 105.4 kS/s/ch sample rate
•  One tachometer input
•  24-bit resolution

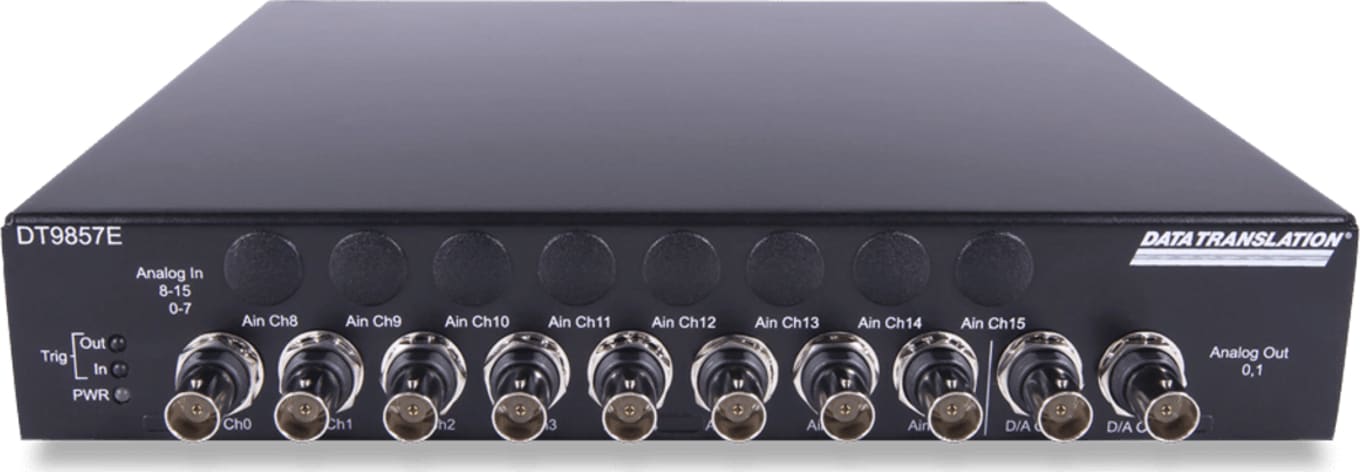

The Digilent MCC DT9857E-8-xAO is a USB-based, high-speed dynamic signal analyzer with 8 simultaneous 24-bit IEPE sensor inputs, up to 105.4 kS/s/ch sample rate, one tachometer input, and 16 digital I/O. It features built-in IEPE signal conditioning for direct measurements from sensors like accelerometers and microphones. The 24-bit, IEPE (ICP) sensor inputs are synchronized with a tachometer input, two measurement counters, and a general-purpose counter/timer to provide data streams that are matched in time for field or laboratory use.

The DT9857E series dynamic signal acquisition modules are designed for noise, vibration, and acoustic measurements. The rugged, compact modules connect via USB making them ideal for many measurement applications.

Software support includes QuickDAQ, an out-of-the-box application for data logging, visualization, and signal generation. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and MATLAB.
