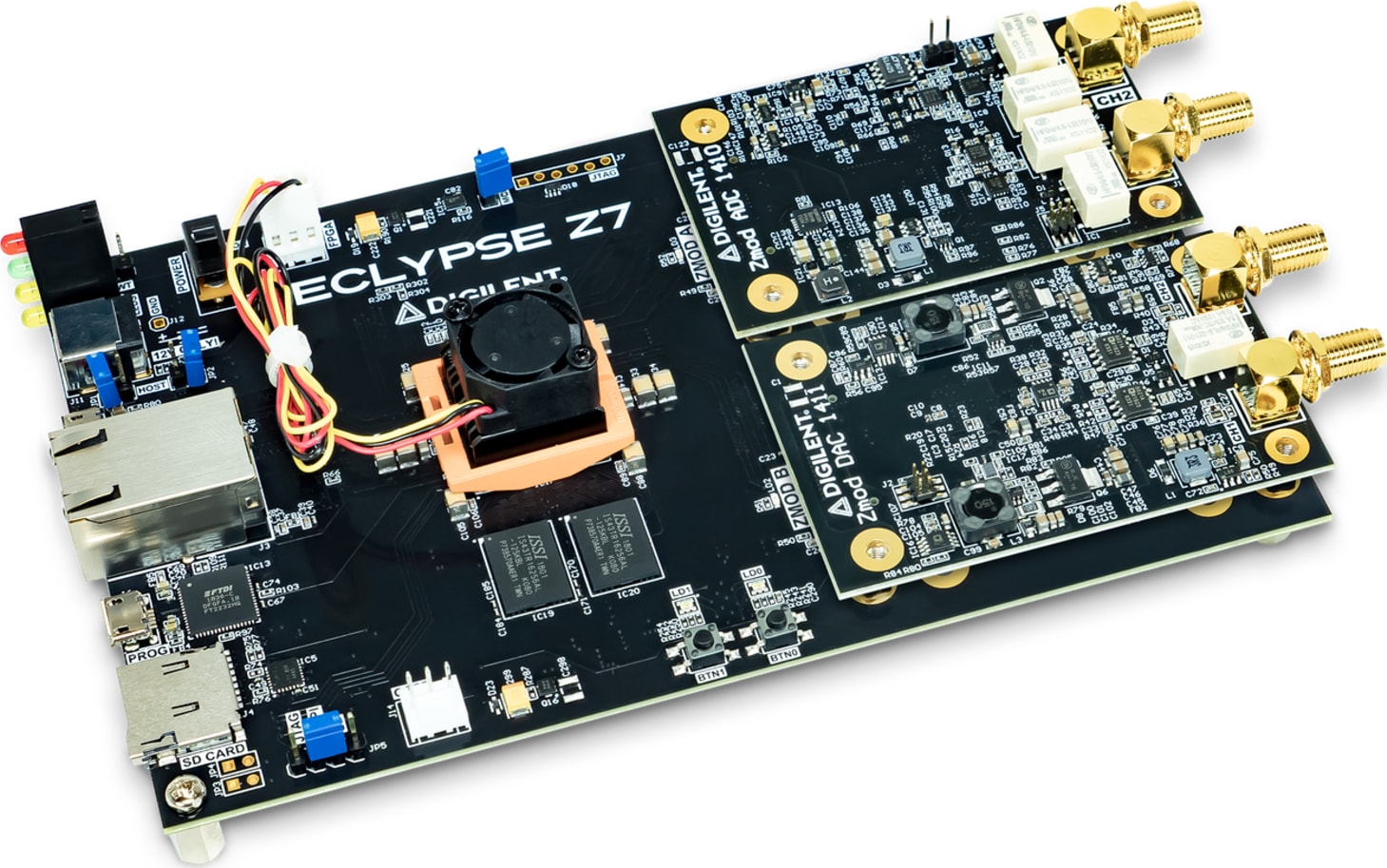

Digilent Eclypse Z7 1411 Eclypse Z7 Zynq-7000 SoC Development Board with Two Zmod AWG 1411s
The Eclypse Z7 is specifically designed to enable the rapid prototyping and development of embedded measurement systems. Featuring high-speed Zmod ports for modular expansion and a Xilinx Zynq®-7020 SoC, the Eclypse Z7 is fast and flexible, reducing the time it takes for engineers and researchers to develop innovative and powerful new high-speed instrumentation, control, and measurement systems for edge-computing, medical, and communications applications. The Eclypse Z7 is the first host board of the Eclypse Platform.
Zmod Expansion
Zmod is Digilent’s new expansion solution using the open-source SYZYGY standard from Opal Kelly. Faster than the Pmod Standard and more compact and cost-effective than FMC, Zmods improve the customizability options for high-speed I/O. Plug in your application specific Zmods and get up and running in hours or days, instead of weeks or months. Zmods available from Digilent can be found here.
Eclypse Platform Software
The Eclypse Z7 is a component of the Eclypse Platform, which pairs Digilent’s open software API with Digilent’s novel Eclypse hardware. Pre-built Linux images are accompanied by the API, and Petalinux is supported to build and deploy custom Embedded Linux solutions. This system allows users to plug in their Zmods of choice and get started prototyping new measurement, instrumentation, and control systems without directly interfacing with the FPGA until desired. With this system, embedded Linux developers can leverage the power of FPGA without possessing hardware expertise. Currently, C and C++ are supported, with plans to add support for other programming languages in the future.
Zynq-7000 APSoC
- Chip number: XC7Z020-1CLG484C
- 667 MHz dual-core Cortex-A9 processor
- DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
- High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
- Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
- Programmable from JTAG, Quad-SPI flash, and microSD card
- Programmable logic equivalent to Artix-7 FPGA
Memory
- 1 GiB DDR3L with 32-bit bus @ 1066 MT/s
- 16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64 compatible identifier
- microSD card slot
Zmod Ports
- 2 ports following the SYZYGY Standard interface specification
- Compatible with a variety of SYZYGY pods, allowing for a wide variety of applications
- Dedicated differential clocks for input and output
- 8 differential I/Os per port
- 16 single-ended I/Os per port
- DNA interfaces connected to Platform MCU allowing for various auto-negotiated power supply configurations
Pmod Ports
- 2 twelve-pin ports for a total of 16 FPGA-connected I/Os
- High speed voltage translation and protection circuitry
