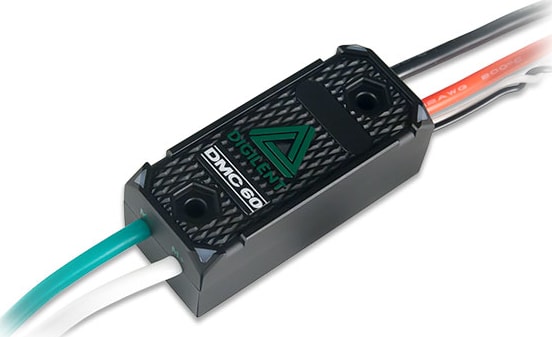

Digilent DMC 60 - Digital Motor Controller

Name: Digilent DMC 60 - Digital Motor Controller
Brand: Digilent
SKU: DigilentDMC 60
Price: 69.99 USD
Availability: InStock

0 reviews | Catalog: 410-334-1 | Model: Digilent DMC 60

Compare

DMC 60: Digital Motor Controller

Sealed, ruggedized, and compact aluminum case
Tie-wrap and through-bolt mounting - drop-in replacement for Victor SP controller
Four multi-color LED indicators sequence to indicate speed, direction, and status for easier debugging
Brake / Coast Calibration button enables one- touch setting changes and calibration
Large gauge input/output cables with flexible silicone insulation
Integrated thermal sensing and protection - current-foldback to prevent overheating and damage
15.625 kHz output switching frequency ensures smooth and precise motor control

View Product Details

List Price: $69.99

In Stock:

View Payment Options

Recommended for you

Digilent DMC 60

Sealed, ruggedized, and compact aluminum case
Tie-wrap and through-bolt mounting - drop-in replacement for Victor SP controller
Large gauge input/output cables with flexible silicone insulation

Digital Motor Controller

The DMC 60 is an electronic speed controller designed for driving brushed DC motors. It utilizes synchronous rectification to efficiently produce a variable output voltage that’s controlled by a PWM Input Signal. This makes the DMC 60 ideal for use in robotics applications, including the FIRST Robotics Competition.

Specifications
Dimensions	2.76" x 1.18" x 1.00"
Weight	0.245 lb (including wiring)
Wire gauge	12 AWG
Input voltage	6-28V
Continuous current	60A*
Peak current (2 sec)	100A
PWM input pulse (high time)	1-2 ms nominal, 0.6-2.4 ms max
PWM input rate (period)	2.9-100 ms
PWM output chop rate (switching frequency)	15.625 kHz
Minimum throttle (deadband)	4%

*at 25°C when mounted to aluminum frame member
