• Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
• Two analog input channels, accessible through BNC or MTE connectors
• Channel type: differential (with MTE) or single-ended (with BNC)

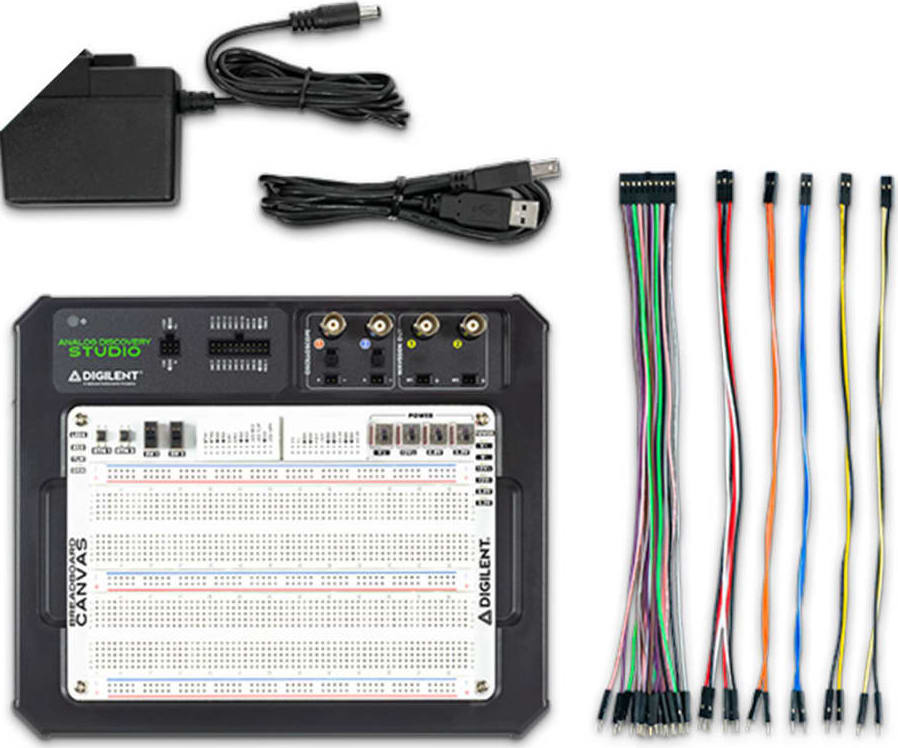

The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling student learning anywhere!

Analog Outputs:

• Used in the Waveform Generator and Network Analyzer
• Two arbitrary waveform generator channels, accessible through BNC or MTE connectors
• AC amplitude (max): ±5 V
• Analog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)
• Operate at 100 MS/s

Digital Inputs and Outputs:

• Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
• Channels: 16
• Input logic standard: LVCMOS (1.8/3.3V, 5V tolerant)
• Output logic standard: LVCMOS (3.3V, 12mA)

With lab spaces decreasing and student enrollment increasing, many institutions are choosing studio learning as a supplement to traditional laboratories, creating a need for a portable test and measurement bench that can support all types of circuits projects. With an Analog Discovery Studio, students can continue their hands-on learning in the library, during office hours, a tutoring center, a classroom, or even in a coffee shop.

The Analog Discovery Studio supports hands-on learning for any student and is available with free Mac, Linux, and Windows compatible software, WaveForms.
