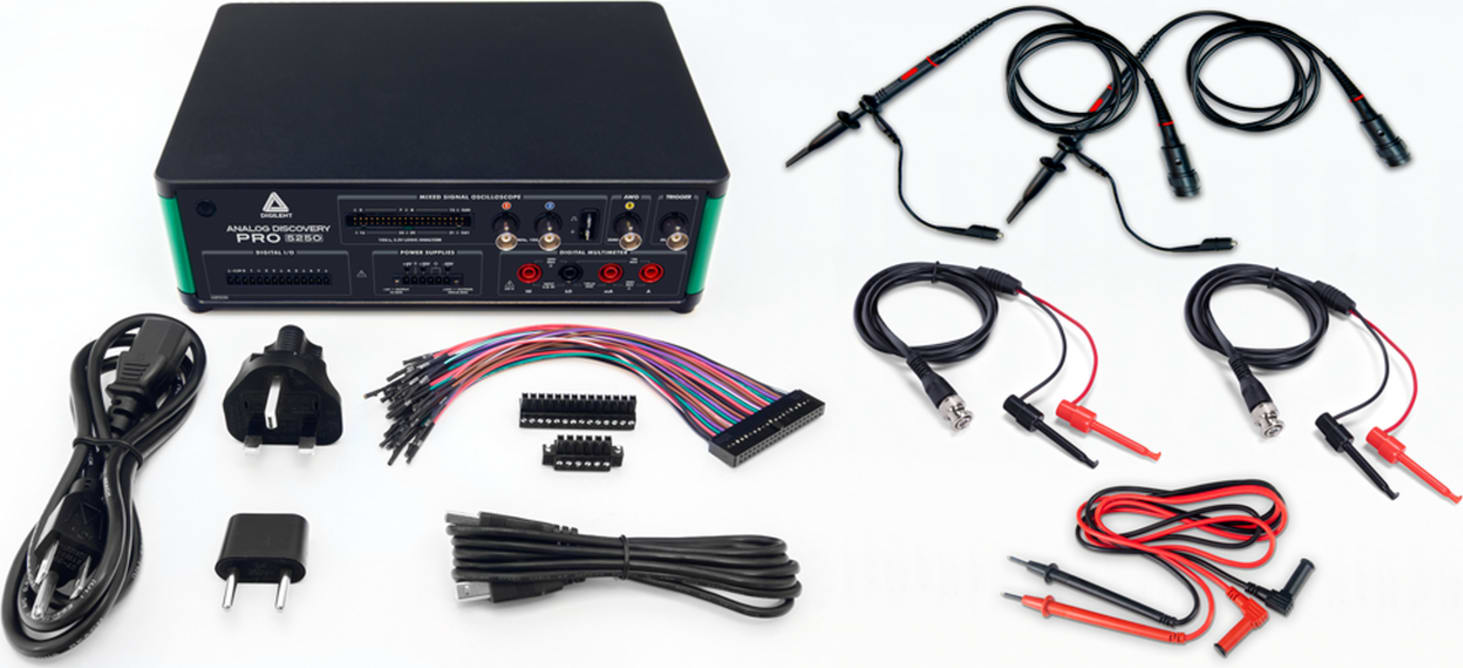

• ADP5250 BNC probe bundle includes 2 oscilloscope probes, 2 BNC to min-grabber cables, and 1 set of red and black DMM probes
• Two analog input channels accessible via front panel BNC connectors
• Channel type: single ended
• One channel accessible via a front panel BNC connector
• Digital Channels: 34

What is the ADP5250?

Bolster your benchtop with the biggest, baddest, and boldest Analog Discovery yet.

The ADP5250 brings higher sample rate and bandwidth and a more rugged design to the Analog Discovery Pro family, keeping our free highly rated WaveForms application software at the controls.

Higher Sample Rate and Bandwidth

Designed to combine a complete set of instruments into a flexible and programmable device, the ADP5250 features a mixed-signal oscilloscope with two 100 MHz bandwidth, 1 GS/s analog channels, 34 digital channels, a tri-output power supply capable of up to 25 V, an external trigger, Waveform Generator, and a built-in programmable DMM. This is our first instrument with full DMM capabilities including true current and resistance measurement and a 300 V input range.

The Ultimate All-In-One Test System

Analog Discovery Pro devices feature a variety of advanced triggering options. Instruments within WaveForms can be cross-triggered, for example, by activating an oscilloscope capture based on a received and decoded digital protocol. In addition, external signals can trigger events using the dedicated external trigger input/output. Our free WaveForms software provides these features configurable in the instruments themselves, or for more control or automation in one of the available scripting interfaces.

Analog Inputs:

• Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, and Impedance Analyzer
• Two analog input channels accessible via front panel BNC connectors
• Channel type: single ended
• Analog bandwidth: 100 MHz @ -3 dB
• 8-bit resolution
• Max sampling rate: 1 GS/s single channel
• Maximum input range: 40 V peak to peak
• AC or DC coupling
• Maximum record length: 1 MS per channel

Analog Outputs:

• Used in the Waveform Generator, Impedance Analyzer, and Network Analyzer
• One channel accessible via a front panel BNC connector
• 14-bit resolution
• AC amplitude (max): ±12 V
• Maximum analog bandwidth: 5 MHz @ -3 dB
• Maximum sampling rate: 125 MS/s

Power Supplies:

• Digital supply: 3.3 V, 20 mA
• DC power supplies:
• 0 to 6 V variable, 1 A max current
• 0 to 25 V variable, 500 mA max current (isolated)
• 0 to -25 V variable, 500 mA max current (isolated)

Digital Multimeter:

• Used in the DMM instrument
• Functions: DC voltage, AC voltage, DC current, AC current, resistance, diode, continuity
• Resolution: 5 1/2 digits
• Sample rate 5 S/s
• Input protection:
• Resistance, diode: up to 300 V DC
• DC and AC voltage: up to 300 V DC or 265 VAC (rms) 400 V AC (peak)
• DMM A current connector fuse: internal ceramic fuse, 10 A 250 V, time-delay, 5 x 20 mm, T 10 A H 250 V
• DMM mA current connector fuse: internal ceramic fuse, 1.25 A 250 V, time-delay, 5 x 20 mm, T 1.25 A H 250 V
• Maximum common-mode voltage: 300 V DC or AC (rms)

Digital Inputs:

• Used in the Logic Analyzer
• Channels: 34
• Input voltage: 0 V to 5 V
• Input threshold: 0 V to 2 V
• Max sampling rate: 1 GS/s
• Typical record length: 1 MS

Advanced Triggering:

Trigger sources: oscilloscope analog channels, function generator start, digital inputs, digital I/O, power line frequency, external trigger

• Trigger modes
• Normal, auto, force, single
• Analog trigger
• Edge with hysteresis
• Digital trigger
• Edge, level, pattern, glitch
• External trigger:
• 5 V compatible TTL input or 3.3V LVTTL output
• 4 mA drive strength
