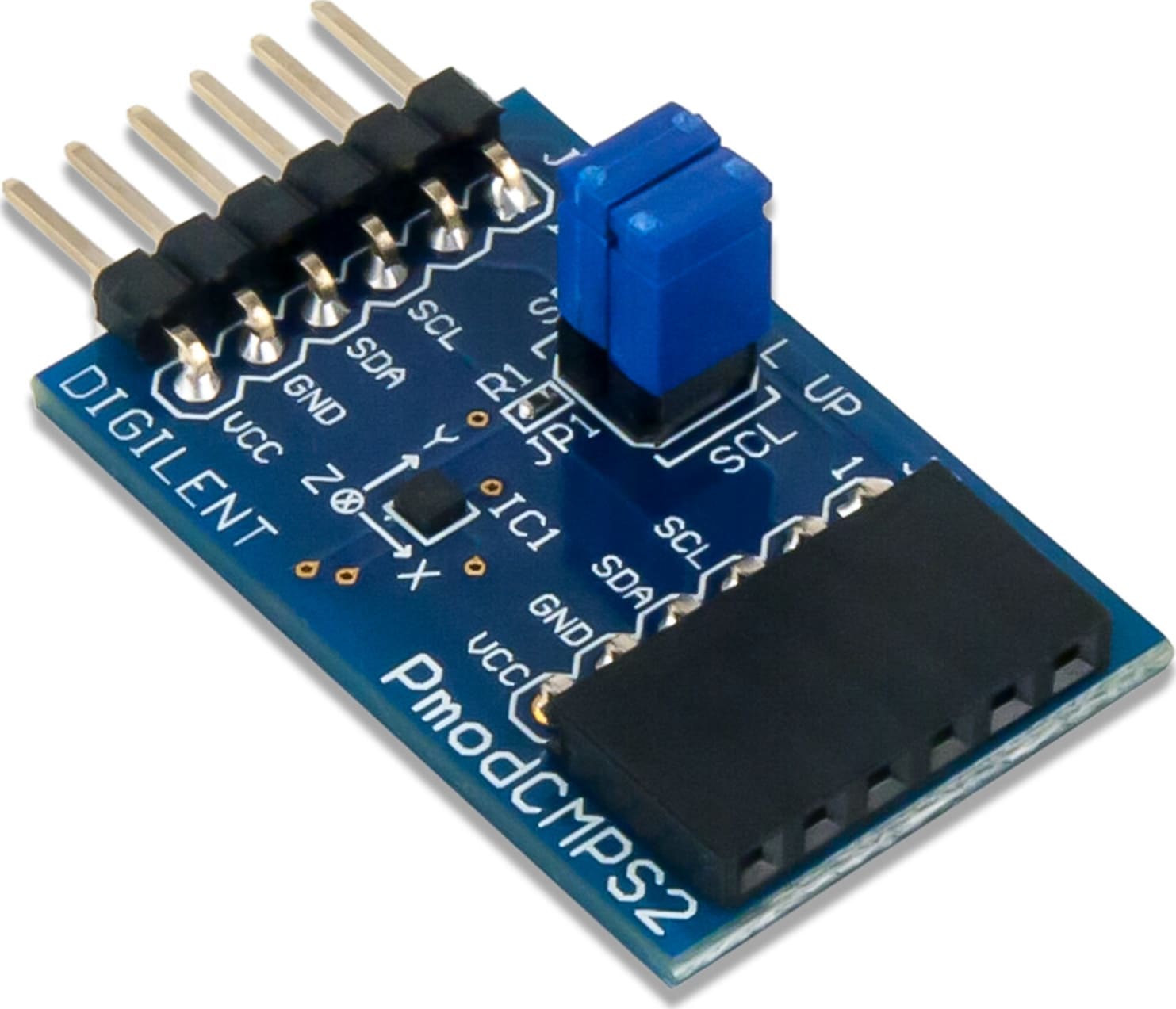

Digilent 410-355 - Pmod CMPS2: 3-Axis Compass

Name: Digilent 410-355 - Pmod CMPS2: 3-Axis Compass
Brand: Digilent
SKU: Digilent410-355
Price: 7.99 USD
Availability: InStock

0 reviews | Catalog: 410-355 | Model: Digilent 410-355

Compare

PmodCMPS2 Product Kit

Low noise 3-axis digital compass
0.5 milligauss field resolution in ±16 Gauss fields
I2C Slave, FAST (=400 kHz) mode
Optional pull-up resistors for SCL and SDA pins
1° heading accuracy
Small PCB size for flexible designs 0.8" × 1.25" (2.0 cm × 3.2 cm)
6-pin Pmod connector with I2C interface
Pass-through Pmod host port for daisy chaining
Follows Digilent Pmod Interface Specification 1.1.0
Library and example code available in resource center

View Product Details

Your Price: $7.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Digilent 410-355

Low noise 3-axis digital compass
0.5 milligauss field resolution in ±16 Gauss fields
I2C Slave, FAST (≤400 kHz) mode
Optional pull-up resistors for SCL and SDA pins

Pmod CMPS2: 3-Axis Compass

The Digilent Pmod CMPS2 is a digital compass module using Memsic's MMC34160PJ magnetometer. The local magnetic field strength can be measured in a ±16 Gauss range with a heading accuracy of 1° and up to 0.5 mG of resolution.

Tech Specs

Test Equipment General Attributes
Product Height	0.80 IN
Product Length	1.00 IN
Product Width	5.00 IN
Shipping Weight	0.60 LBS
HTS/Schedule B Number	8473301180
ECCN Number	EAR99
Country of Origin	Taiwan
