• 2 point (two pin) resistance probe for small samples or small areas
• Measures surface resistance per ANSI/ESD STM11.13-2015
• Gold plated, spring loaded pins with conductive rubber electrodes
• Maintains consistent contact with small and/or non-flat surfaces
• Please see below for a list of compatible products

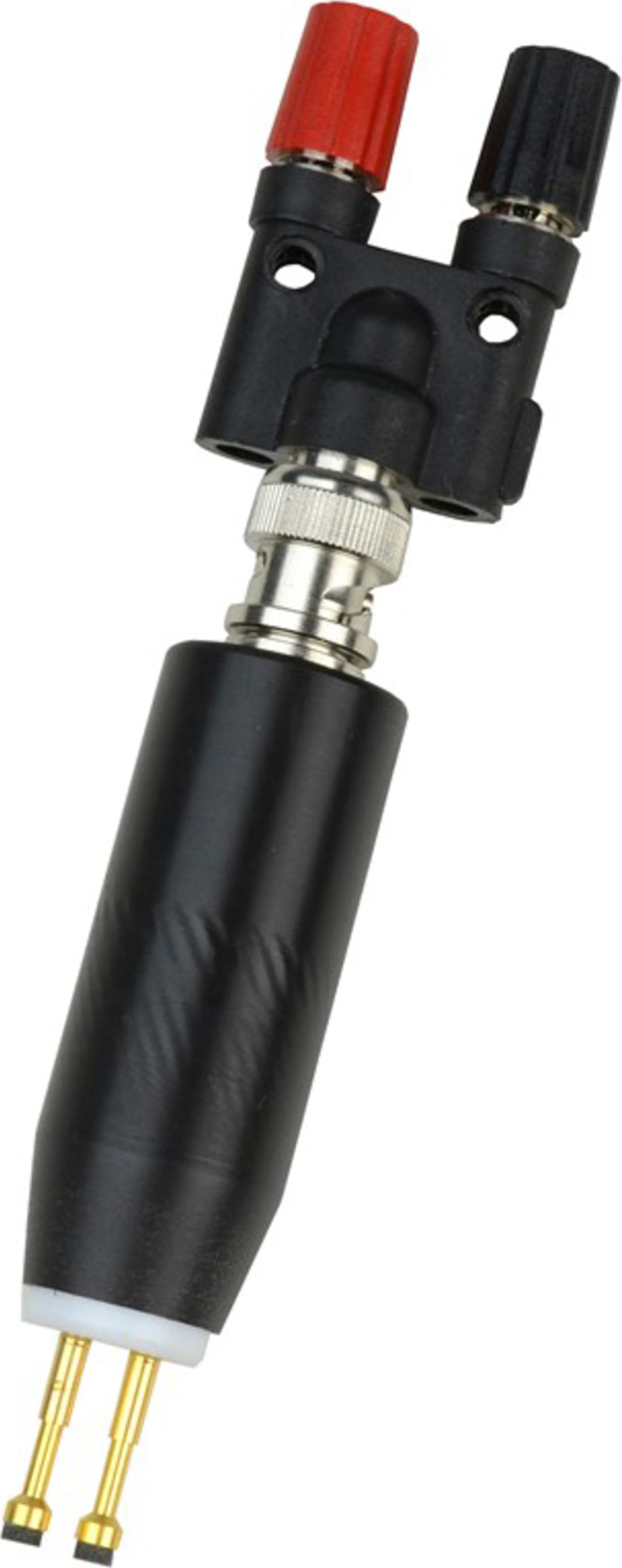

The Desco 19297 Two-Point Resistance Probe meets ANSI/ESD STM11.13-2015 requirements for testing the resistance of small samples or small areas on a larger sample. It utilizes two gold plated, spring-loaded pins with conductive rubber electrodes at the point of contact. The two electrodes measure 0.125" in diameter and are spaced 0.50" between centers. Replacement pins are available as item 19299.

The 19297 is compatible with the following items:

• 19290 Digital Surface Resistance Meter Kit
• 19291 Digital Surface Resistance Meter
• 19784 Analog Surface Resistance Meter Kit
• 19786 Analog Surface Resistance Meter
• 19640 Surface Resistance Checker
