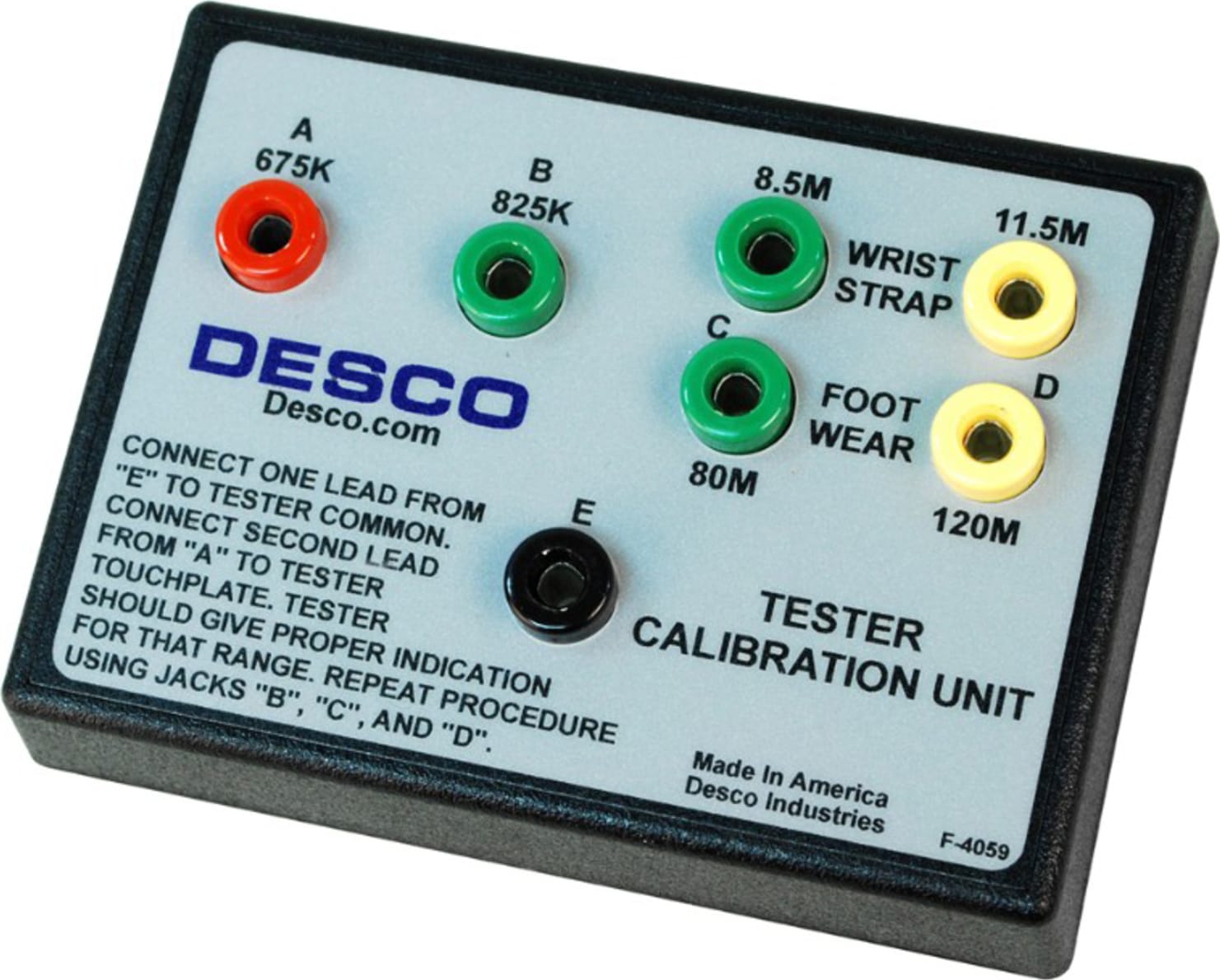

The Desco 07010 Calibration Unit is designed to verify whether a tester is operating within specifications. This product can be used as one of the tools to fulfill the ANSI/ESD S20.20 paragraph 6.1.3.2 "Compliance Verification Plan." The 07010 Calibration Unit is a passive device and requires no power source. The Calibration Unit is manufactured with industry accepted test ranges for both wrist straps and foot grounders. The wrist strap pass range is set at 750K - 10M, while the foot ground test range is set at 750K - 100M. The Desco Calibration Unit is calibrated to NIST traceable standards.
The Desco 07010 Calibration Unit is to be used with the following items:
- 19240 Wrist Strap Tester
- 19280 Combo Tester
- 19282 Combo Tester with Stand and Foot Plate
- 19283 Combo Tester with Stainless Steel Foot Plate
- 19350 Wrist Strap Touch Tester, 120VAC
- 19351 Wrist Strap Touch Tester, 220VAC
The 07010 can also be used with the following discontinued items:
Operation
Please see the attached manual for instructions on how to use the 07010 with many different models of wrist and footwear testers.
