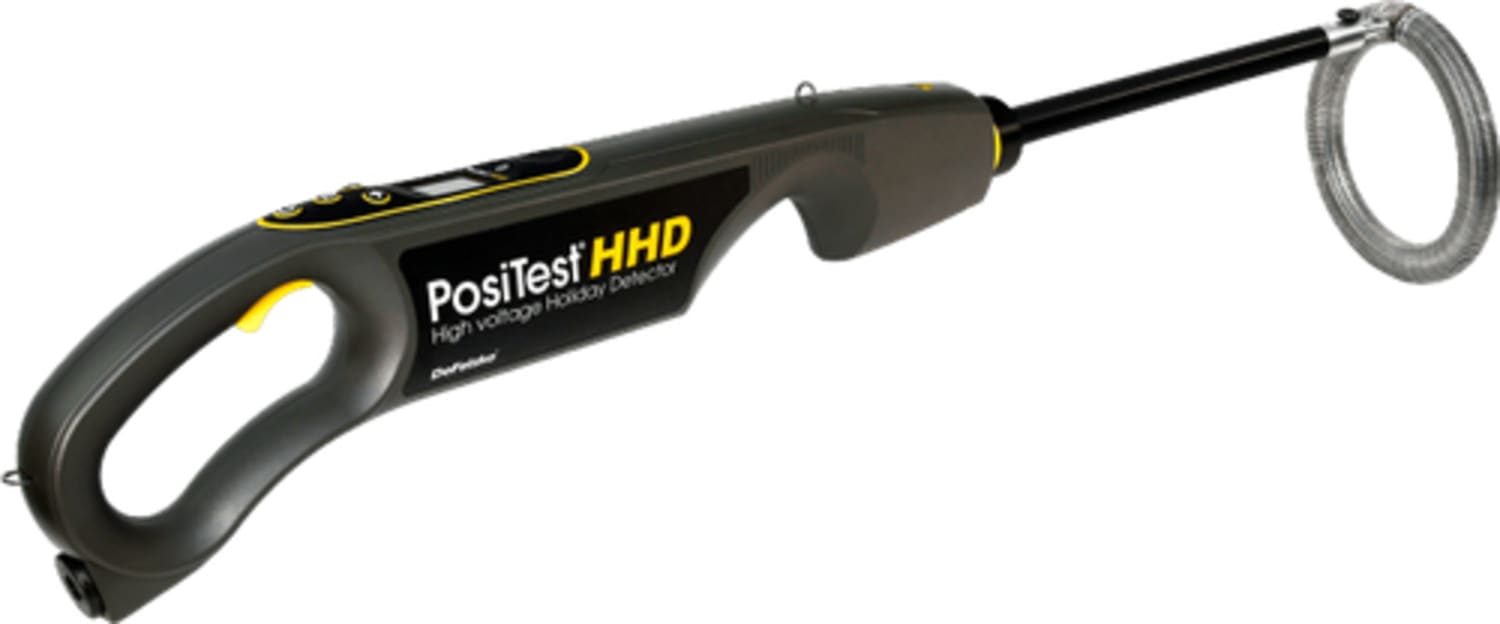

HHD High Voltage Holiday Detector Short Electrode Rod Kit
Simple
Easy-to-use with bright, color LCD. Ready to measure - comes with everything needed for testing. Audibly and visibly alerts when flaws/holidays are detected. Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue. Voltage calculator feature - choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage.
Durable
Rugged, environmentally sealed ABS plastic enclosure. Weatherproof, dustproof, and shockproof. Included hard shell case with custom foam inserts for superior protection. Two-year warranty
Accurate
Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode. Long Form Certificate of Calibration included with each instrument. Conforms to national and international standards including ISO, ASTM, and NACE
Powerfu
Strobe light and loud audible alarms emitted when a holiday is detected. Audio alarm mode can be adjusted for differing environments. Removable Smart lithium-ion battery with built-in charge state indicator
Versatil
A wide range of rolling spring electrodes and wire brushes are available. Custom sizes available upon request. Optional handheld wand accessory coverts the detector into a wand configuration ideal for testing hard-to-reach areas (suitable for voltages < 15 kV). Industry-standard connectors and adaptors for compatibility with nearly all existing electrodes. User adjustable voltage range from 0.5 - 35 kV
Safe
Press and hold Safety Trigger helps prevent accidental high voltage generation. 7.6 m (25') ground (earth) cable with locking connector and spring clamp. Shock proof/creep proof - internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1
