DeFelsko PosiTector PRBUTGM-C - Multiple Echo Probe

Name: DeFelsko PosiTector PRBUTGM-C - Multiple Echo Probe
Brand: DeFelsko
SKU: DeFelskoPosiTector PRBUTGM-C
Price: 1590.00 USD
Availability: InStock

0 reviews | Catalog: PRBUTGM | UPC: 810257033016 | Model: DeFelsko PosiTector PRBUTGM-C

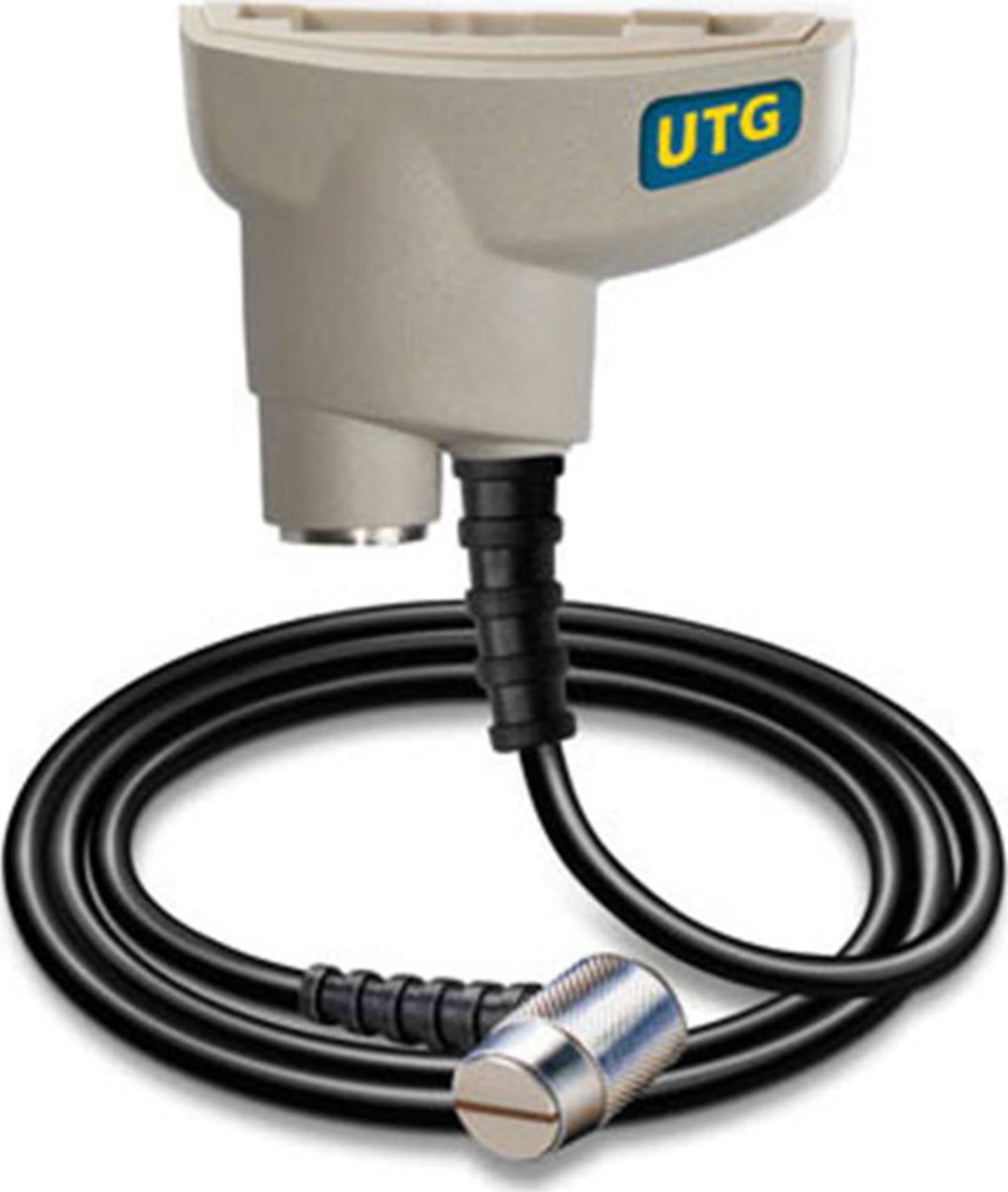

DeFelsko PosiTector PRBUTGM-C Main Image

Compare

UTG M - Multiple Echo Probe

UTG M - Multiple Echo Probe
5 MHz contact probe with wear resistant alumina probe tip
Multiple-Echo technique averages 3 or more echoes for accurate and reliable readings
Toggle easily between Single and Multiple Echo modes Multiple Echo mode to eliminate coating thickness Single Echo mode to detect pits/flaws and to increase measurement range
Probe type: 5 MHz Contact
Thru-paint capability (multiple echo): YES
Measurement range* - single echo: 0.100" to 5.000" (2.50 to 125.00 mm)
Measurement range* - multiple echo: 0.100" to 2.500" (2.50 to 60.00 mm)
Accuracy: ± 0.001" ± 0.03 mm
* Measurement range is for carbon steel and depends upon surface condition, temperature and material.

View Product Details

Your Price: $1,590.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	DeFelsko PosiTector PRBUTGM-C UTG M - Multiple Echo Probe	DeFelsko PRBUTGP-C UTG P - Precision Probe	DeFelsko PRBUTGCLF-C UTG CLF - Corrosion Probe	DeFelsko PRBUTGCA-C UTG CA - Corrosion Probe	DeFelsko PosiTector PRBUTGCX-C UTG CX - Xtreme Corrosion Probe	DeFelsko PosiTector PRBUTGC-C UTG C - Corrosion Probe
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

DeFelsko PosiTector PRBUTGM-C

UTG M - Multiple Echo Probe

5 MHz contact probe with wear-resistant alumina probe tip

Probe type: 5 MHz Contact

Thru-paint capability (multiple echo): YES

Measurement range* - single echo: 0.100" to 5.000" (2.50 to 125.00 mm)

Multiple Echo Probe

Features Thru‐Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.

General Specifications
TEXt	Corrosion Probe		Multiple Echo Probe
Probe	UTG C	UTG CX	UTG M
Probe Type	5 MHz Dual Element		5 MHz Contact
Cable Type	PVC	Braided Stainless Stee	PVC
Mode	Single Echo		Single Echo	Multiple Echo
Measurement Range*	0.040” to 5.000” 1.00 to 125.00 mm		0.100” to 5.000” 2.50 to 125.00 mm	0.100” to 2.500” 2.50 to 60.00 mm
Thru-Paint Capability	no		no	yes
Resolution	0.001” 0.01 mm		0.001” 0.01 mm
Accuracy	± 0.001” ± 0.03 mm		± 0.001” ± 0.03 mm
* Measurement Range is for carbon steel and depends upon surface condition, temperature and material.
