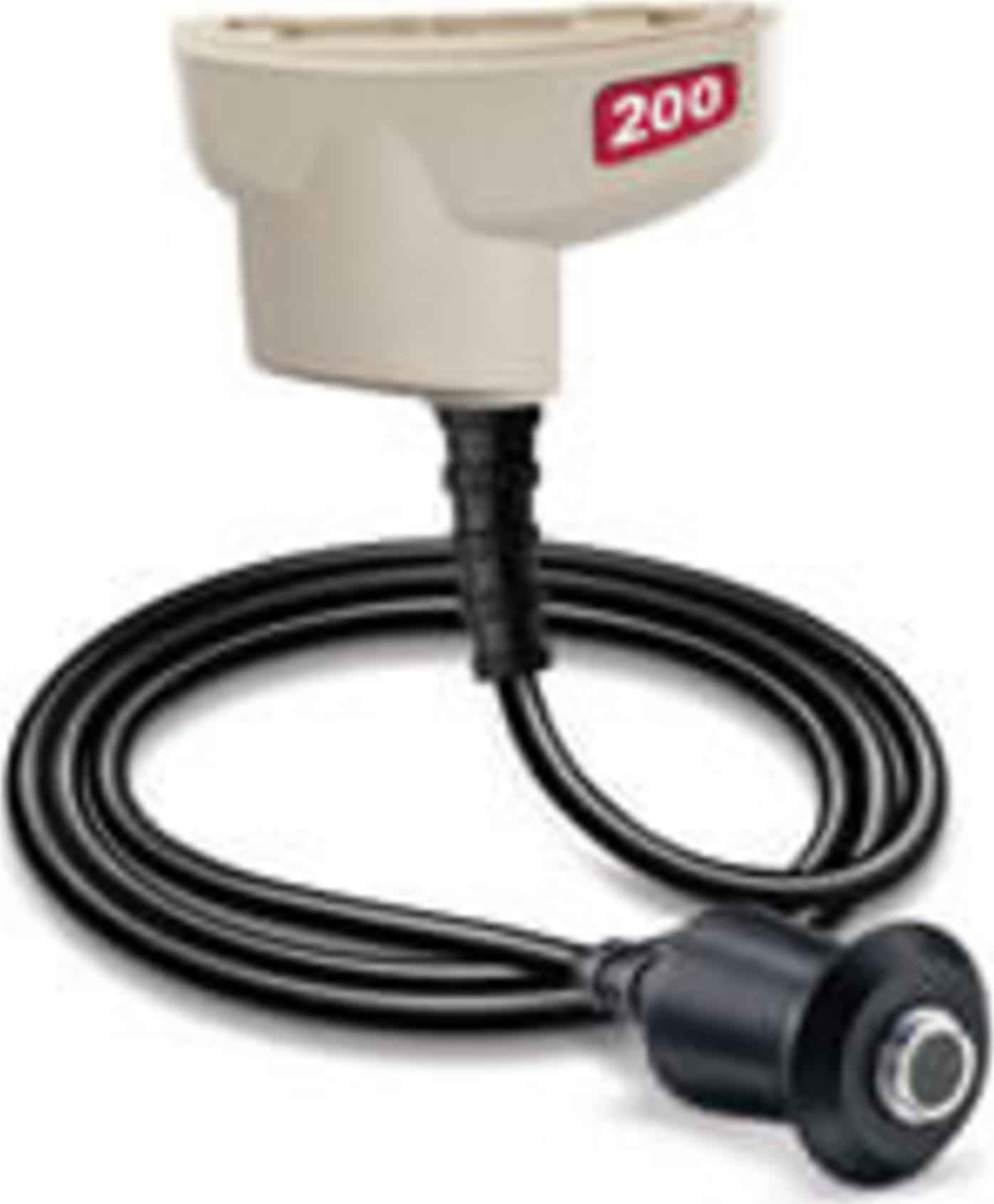

DeFelsko PosiTector PRB200C-C Cabled Probe

Name: DeFelsko PosiTector PRB200C-C Cabled Probe
Brand: DeFelsko
SKU: DeFelskoPosiTector PRB200C-C
Price: 1995.00 USD
Availability: InStock

0 reviews | Catalog: PRB200C | UPC: 810257030077 | Model: DeFelsko PosiTector PRB200C-C

Compare

200 C Cabled Probe

Thickness Standard: STDP6
Coatings on concrete, fiberglass, etc.

View Product Details

Your Price: $1,995.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	DeFelsko PosiTector PRB200C-C 200 C Cabled Probe	DeFelsko PosiTector PRB200B-C 200 B Cabled Probe	DeFelsko PosiTector PRB200D-C 200 D Cabled Probe
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

DeFelsko PosiTector PRB200C-C Accessories

Choose a Category

General Accessories

for the DeFelsko PosiTector PRB200C-C

DeFelsko BELTCLIP Belt Clip for PosiTector Gauge Bodies

Catalog: BELTCLIP

(0)

In Stock!

Add to Cart

DeFelsko PosiTector PRB200C-C Cabled Probe

Thickness Standard: STDP6
Coatings on concrete, fiberglass, etc.

PosiTector gage bodies are compatible with the full range of PosiTector 6000, 200, DPM, IRT, SPG, RTR, SST, SHD, BHI and UTG probes.

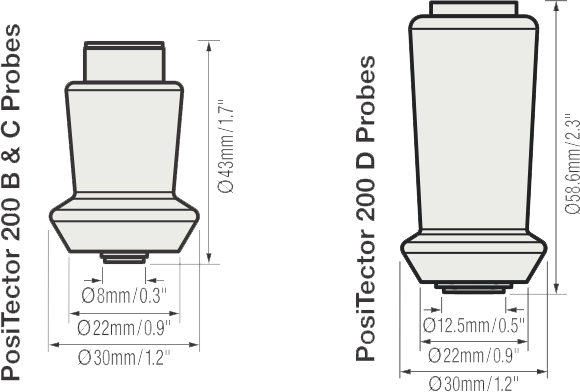

Probe Dimensions

PosiTector 200 Probes Specifications
Model	PRB200B	PRB200C	PRB200D
Typical Applications	Polymer coating on wood, plastic, etc.	Coatings on concrete, fiberglass, etc.	Thick, soft coating such as polyurea. asphalitic neoprene, very thick polymers, etc.
Measurement Range*	13-1000 μm 0.5 - 40 mils	50 - 3800 μm 2 - 150 mils	50 - 7600 μm 2 - 300 mils
Accuracy	± (2 μm + 3% of reading) ± (0.1 mil + 3% of reading)		± (20 μm + 3% of reading) ± (1 mil + 3% of reading)
Minimum Layer thickness**	13 μm 0.5 mil	50 μm 2 mils	500 μm 20 mils
* Range limits apply to polymer based coating only. D probe polyurea range is 50 to 500 μm (2 to 200 mils) ** For Multiple layer applications only. Dependent on material to be tested.
