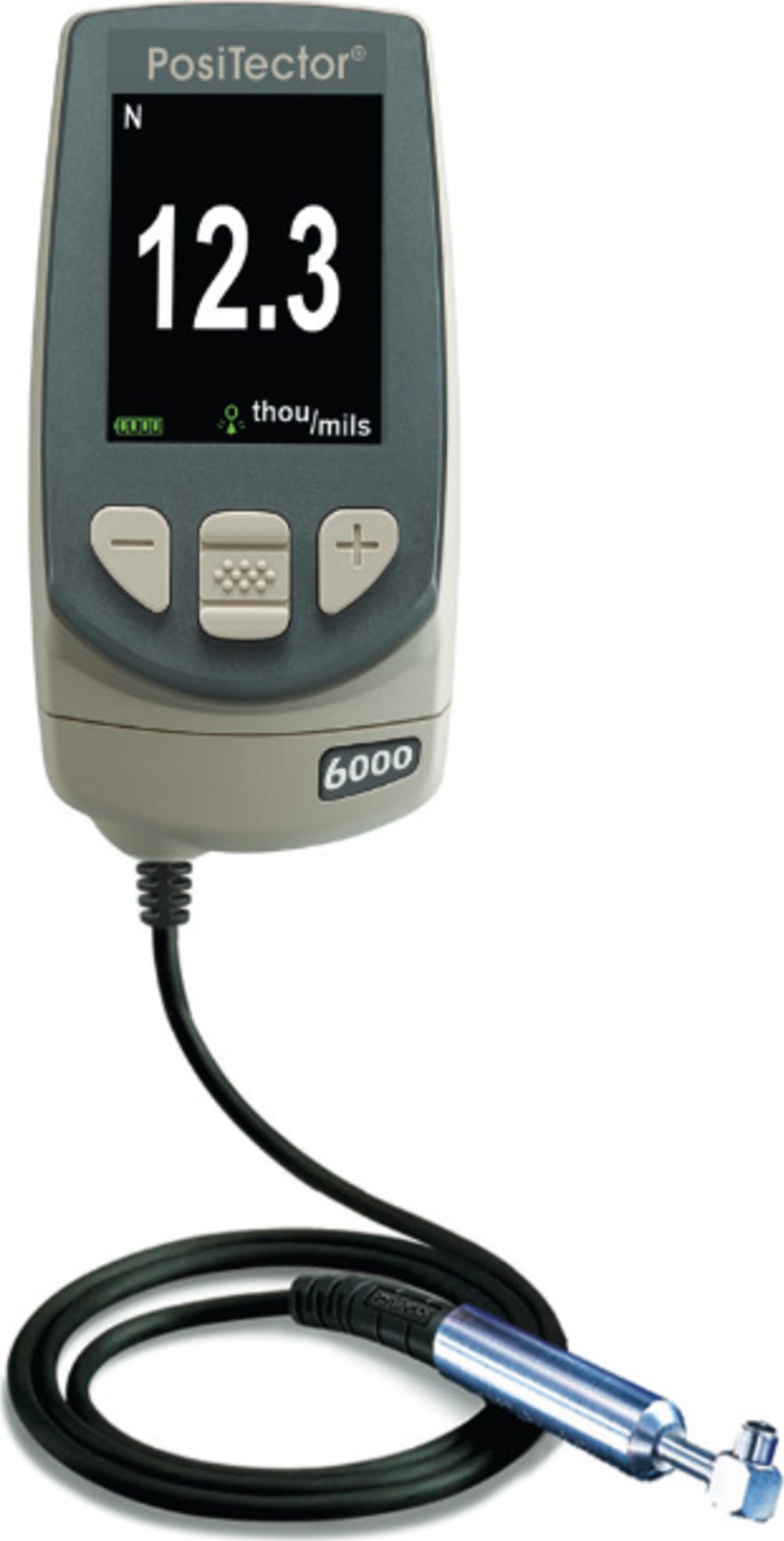

DeFelsko PosiTector N90S3-E Coating Thickness Gage

0 reviews | Catalog: N90S3-E | UPC: 810257030541 | Model: DeFelsko PosiTector N90S3-E


PosiTector 6000 N90S3 Advanced

  • Calibration Standard: STDS2 / STDA2
  • 90 degree microprobe for measuring non-conductive coatings on non-ferrous metal substrates (aluminum, copper, etc.)
  • With our smallest measuring tip and best thin-film accuracy
  • Ideal for measuring on small parts, hard-to-reach areas, or close to edges
  • Ready to measure – no calibration adjustment required for most applications
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • Wear resistant ruby probe tip, for long-lasting calibration
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
  • Storage of 100,000 readings in up to 1,000 batches and sub-batches
  • Live graphing of measurement data
  • 3 Scan Modes — increase measurement speed to 180+ readings per minute
  • Normal – take continuous readings without lifting the probe
  • NEW Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
  • NEW Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels
  • PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
  • Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
View Product Details

List Price: $1,375.00
