Standard Ultrasonic Coating Thickness Gage with B Probe, 13-1000μm

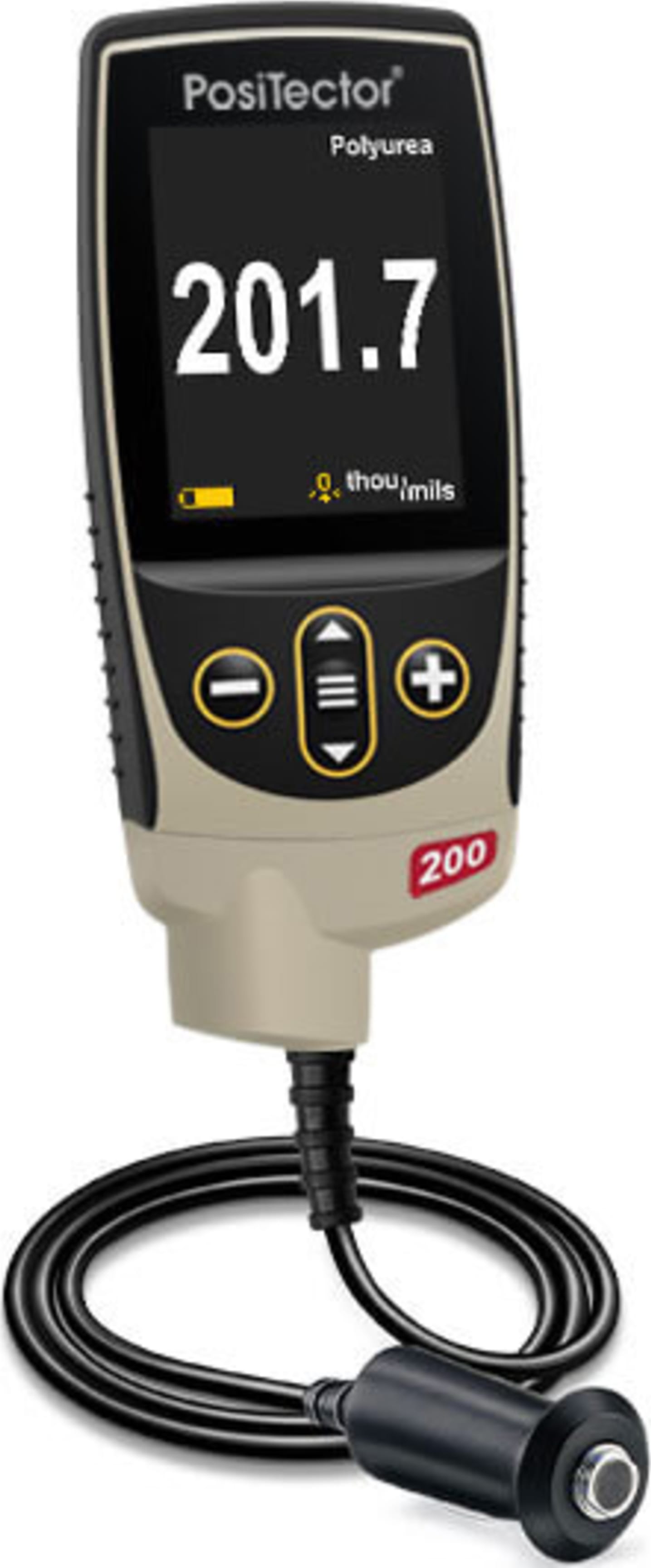

The DeFelsko PosiTector 200 B1 is a hand-held coating thickness gage that uses a non-destructive ultrasonic principle to measure coating thickness on a wide variety of substrates. It consists of a standard PosiTector gage body and a B type probe that is capable to measure 13 - 1000 μm (0.5-40 mils) ideal for Polymer coatings on wood, plastic, etc.
PosiTector 200 probes emit a high-frequency sound pulse that travels into the coating via a couplant and reflects from any surface that is different in density. Coating thickness readings are obtained by measuring the time taken for the ultrasonic signal to propagate from the probe to the coating/substrate interface and back. The travel time is divided by two and multiplied by the velocity of sound for the coating to obtain the thickness of the coating.
Simple
- Ready to measure-no adjustment required for most applications
- NEW Larger 2.8" impact-resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable
- NEW Weatherproof, dustproof, and water-resistant-IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two-year warranty on gage body AND probe
Accurate
- Responsive transducers provide fast, accurate readings
- Certificate of Calibration showing traceability to NIST or PTB included
- Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808
Versatile
- PosiTector body accepts all PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
- NEW Auto rotating display with Flip Lock
- Mils/Microns switchable
- Selectable display languages
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range-ideal for ignoring unwanted surface echos
- NEW Screen Capture - save 100 screen images for record-keeping and review
- NEW up to 30% longer battery life
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive-stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software is required.
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
