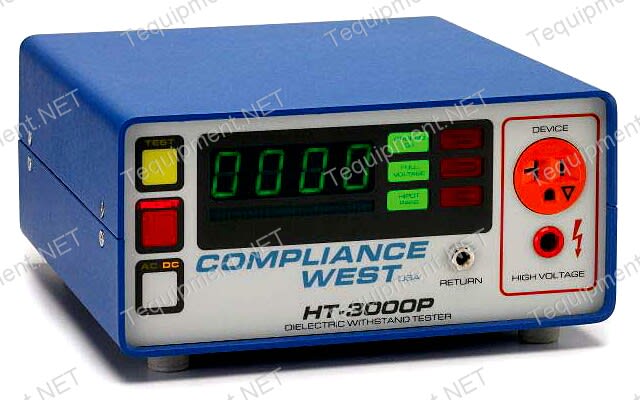

Compliance West HT-3000P
AC/DC Hipot/Ground Continuity Tester

0 reviews | Catalog: HT-3000AC-500mA | Model: Compliance West HT-3000AC-500mA

Hipot Tester, 0-3000Vac 500mA

  • Adds high precision leakage current and duration settings to the user-friendly HT-3000 for better control of tests.
  • Allows no load setup of leakage current and test dwell times.
  • Once entered, leakage current and test dwell times can be referenced on the front panel display at any time.
  • Leakage currents can be set from 1-5mA in 0.1mA increments.
  • Dwell times can be set from 1-60 seconds in 1 second increments.
  • Two tests with one setup. Conducts UL/CSA Ground continuity and Hipot tests with one setup, so no additional equipment is needed.
  • Small and light. 9.25" wide x 4.25" high x 10" deep. 11 lbs. But rugged enough to test manufactured housing.
  • Ground continuity check is defeatable for testing two-wire products.
  • Easy equipment connections. Plug your equipment right into the NEMA plug on the front panel. No adapters needed!
  • J2 and J3 cords allow connection of pigtail power leads.
  • Simple test outcome judgement. Green lights mean pass - red lights mean fail. Failing tests sound a buzzer as well.
  • Ready for your UL Inspector out of the box. NIST Traceable Calibration Certificate to MIL-STD45662-A is included. Cal cert is in accordance with UL guidance.
  • Operation Instructions are printed on the rear panel for easy reference.
  • In-depth testing. Both true Arc Dectection and Leakage Current circuits test the product to find problems.
  • RED lights and a buzzer leave no question if a failure has occurred.
  • Expandable for TUV/European Agency Testing. Can be connected to our GF-30ac 25A Ground Bond Tester with optional TEST-LINK.
  • Optional 120kohm calibration resistor can be mounted on the rear panel.
  • Easy shift-by-shift Function Test. Compatible with our Patented function checker, the HTT-1.
Options:
View Product Details

List Price: $20,710.00
