Peak output voltage is 1000 volts minimum, peak short circuit current is 100A minimum. A switch is provided for reversal of output polarity. Optional divider network available for oscilloscope connection.

Waveform generated is 10x360/10/360, Vp= 1000V. To perform the Surge 2 test, the front panel voltage meter is set to 1000V and the 10Ω tap is used. To perform the Surge 5 test, the front panel voltage meter is set to 1000V and the 40Ω tap is used.

Two output taps are provided, one with Zout=10Ω and one with Zout=40Ω.

Enclosure is 19 x 3U, rack mountable (not as shown).

Outputs are isolated.

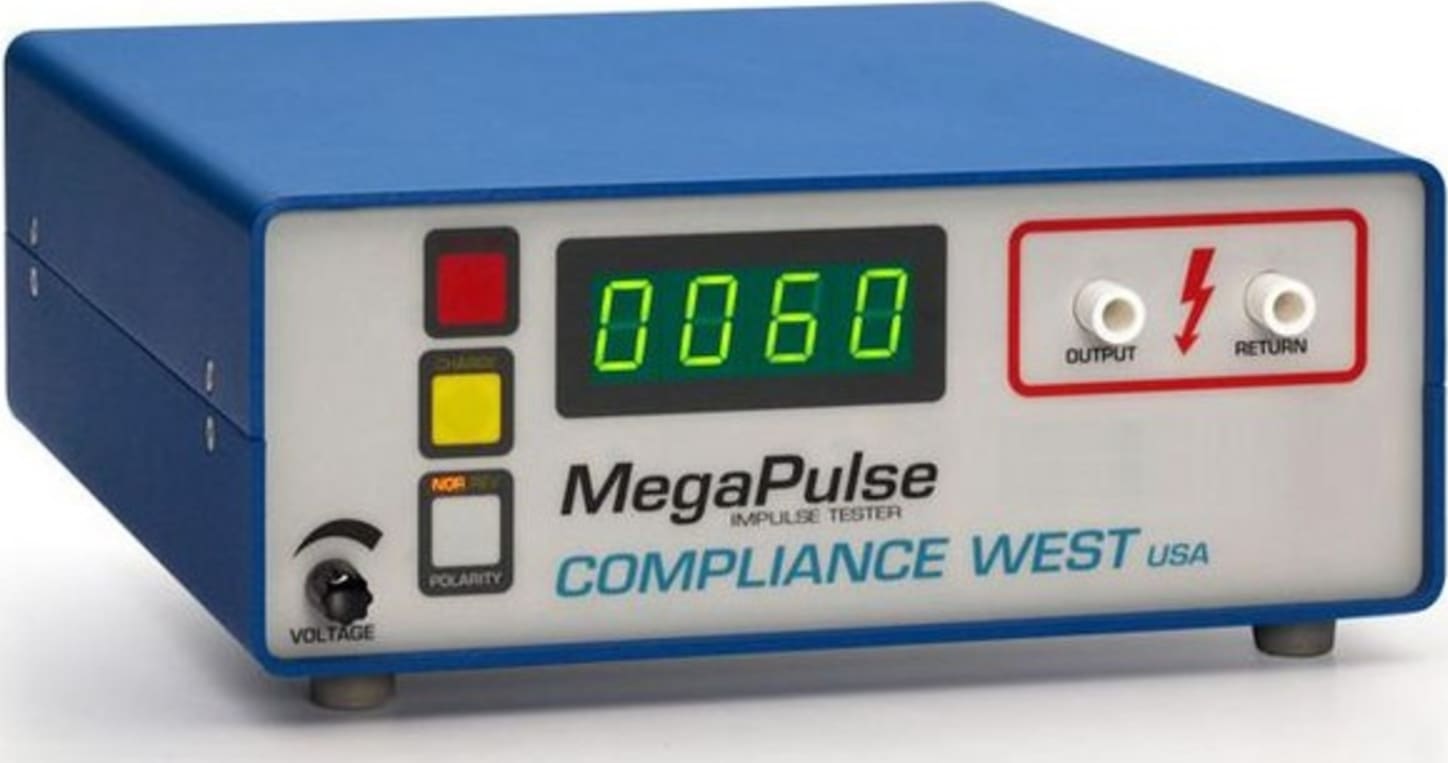

The MegaPulse 10x360s-1 ships with cables, graphs of theoretical and actual waveforms, and a Calibration Certificate. One year warranty. Options include relay outputs for PLC control, and two 1000:1 oscilloscope BNC jacks (differential mode only).

This tester is configured with two outputs for testing two-wire products in accordance with Table 4-1 Test Condition A and B.
