• AC Output: 0-2000V Leakage current up to 20 mA
• DC Output: 0-2800V Leakage Current up to 5 mA
• Logic controlled, one button test, easy to setup, LED's indicate test progress. Upon failure, buzzer sounds, and testing is terminated
• Output voltage, leakage current limit, voltage ramp-up time, and test duration are controlled from the rear panel
• Ground continuity test is defeatable for testing of two wire products

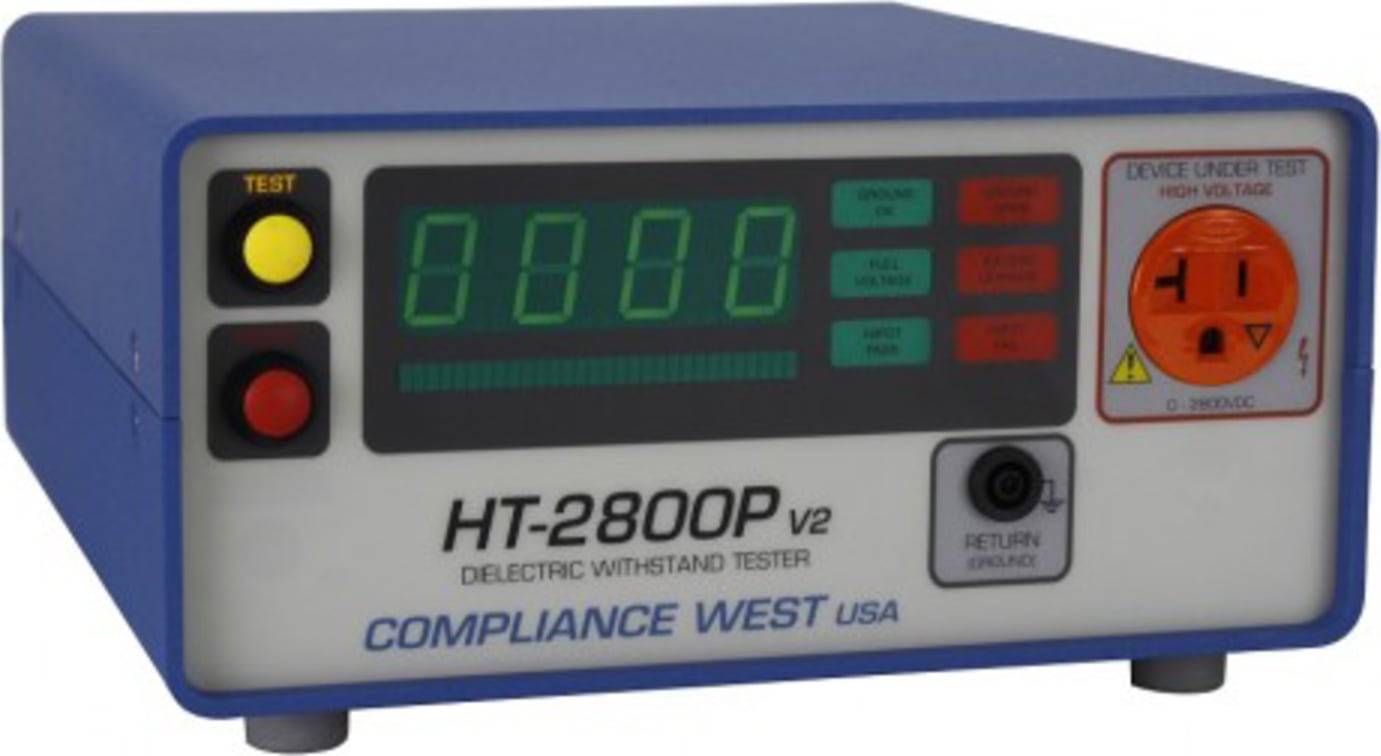

The HT-P V2 series Hipot Testers emerges from the redesigned HT-P series, offering new long life buttons, robust design, lighter, and cleaner appearance. Performs the Ground Continuity Test with a fix Pass/Fail point of 2.93Ω, 0-2800V DC Hipot Test, Neutral/Hot to Ground Leakage current test up to 5mA DC. Easy to use and connect. Ships complete with cables, manual, Calibration Certificate, and Calibration Data Log Copy.
