• AC output up to 20,000 V
• Leakage current up to 5.0 mA
• Microcontroller technologies, one button test, easy to setup, LED's indicates test in progress. Upon failures buzzer sounds and testing is terminated
• Output voltage, Leakage current and test duration are controlled in the front panel
• Test timer is defeatable

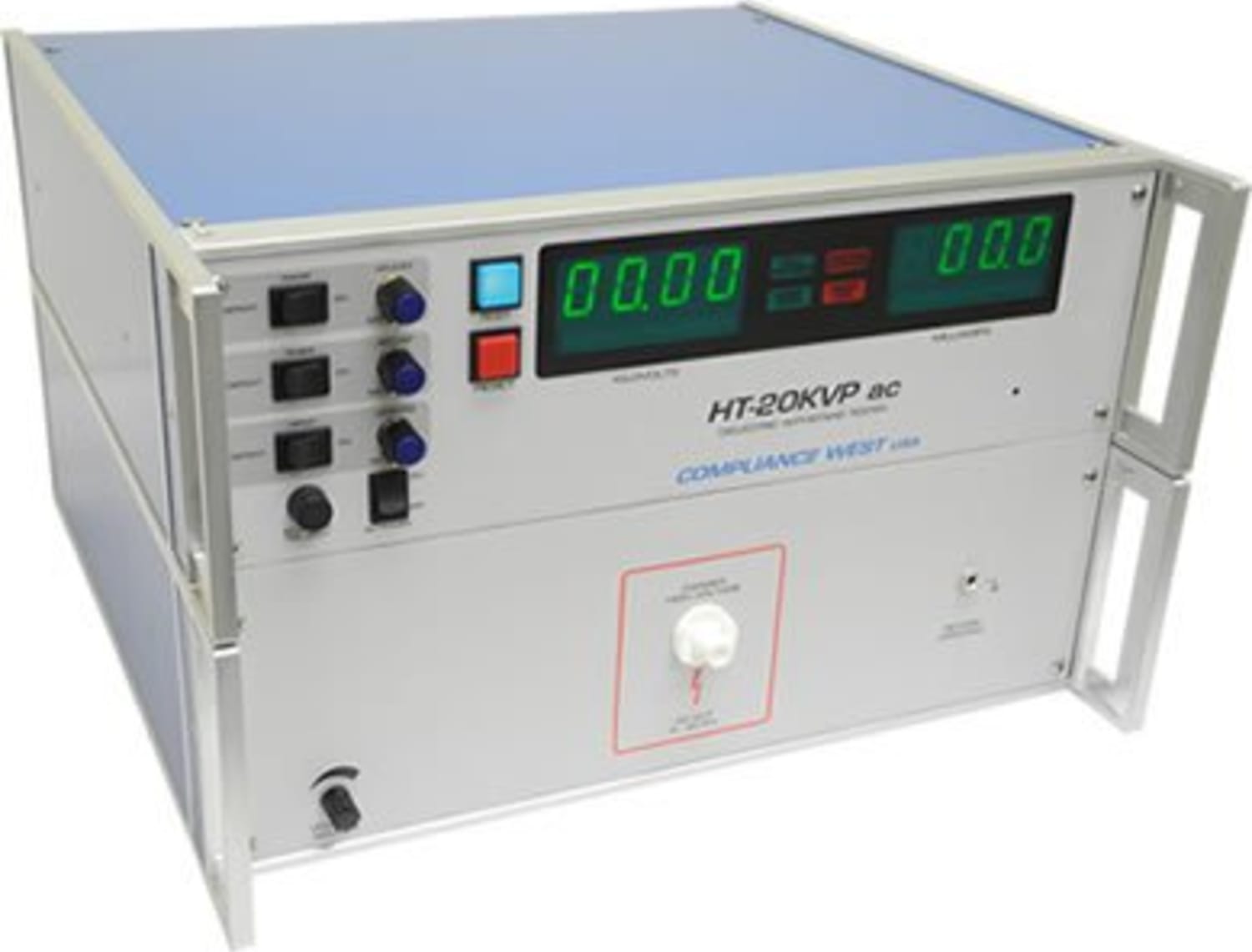

The HT-20KVP-AC is a 20,000 Volts AC only hipot tester, can deliver up to 5 mA at 16 KV and 1 mA at 20 KV, Test time, Voltage ramp and Leakage limit settings can be modified in the front panel

Voltage Ramp, Arc detection and Test timer are defeatable, one year warranty, calibration certificate to ANSI Z540 included.

Options:

Safety Interlock: Two position terminal block on rear panel must be shorted for high voltage operation.

Voltage on Hold: If a failure stops the test, the front voltage display will hold the last voltage reading.

AutoReset on Pass: Resets the HT-20KVP AC after a few seconds only on passing test condition.

Zero Voltage Start: Voltage adjust knob must be to minimum position to allow start the test cycle.
