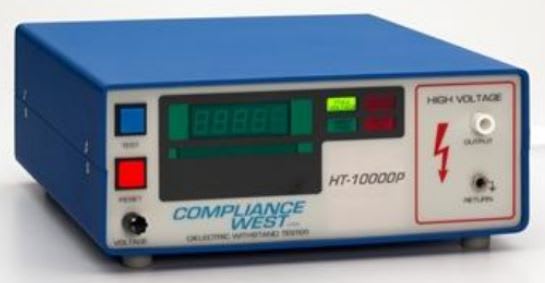

Compliance HT-10KVP AC Hipot Tester, 0-10,000V ac, 0-10mA

Name: Compliance HT-10KVP AC Hipot Tester, 0-10,000V ac, 0-10mA
Brand: Compliance West
SKU: ComplianceHT-10KVP AC
Price: 3837.66 USD
Availability: InStock

0 reviews | Catalog: 00-10KP ac | Model: Compliance West HT-10KVP AC

Compare

Hipot Tester, 0-10,000V ac @ 0-10mA

AC output: up to 10,000 V.
Microcontroller Technology, one button test, easy to setup, LED's indicate test progress. Upon failure, buzzer sounds and testing is terminated
Output voltage, leakage current limit, voltage ramp-up time and test duration are controlled from the front panel
Voltage ramp, arc detection and test timer are defeatable
Separate arc detection circuitry
Ergonomically designed for safety, speed and efficiency
Designed for product development and laboratory use
Cables, manual and calibration certificate included
One year calibration cycle
One year warranty

View Product Details

List Price: $3,940.00

Your Price: $3,837.66

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Compliance West HT-10KVP AC Accessories

Choose a Category

for the Compliance West HT-10KVP AC

Cortek SE-MAT Insulation Mat

Catalog: SE-MAT

(0)

In Stock!

Add to Cart

Cortek SE-2420 Hipot Electrical Safety Enclosure, OD: 24" W x 20" D x 12.5" H

Catalog: SE-2420

(0)

In Stock!

Add to Cart

Cortek SE-3624 Hipot Electrical Safety Enclosure, OD: 36" W x 24" D x 16" H

Catalog: SE-3624

(0)

In Stock!

Add to Cart

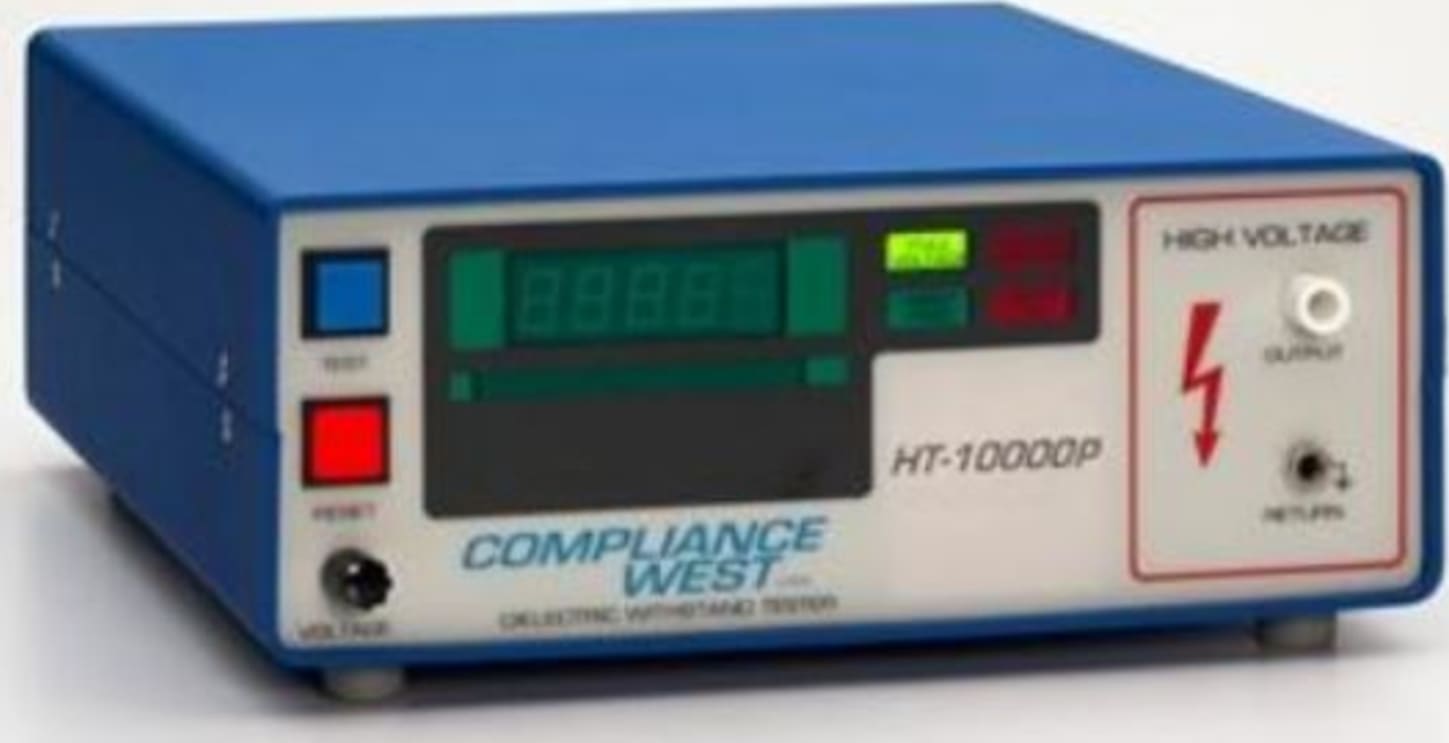

Compliance HT-10KVP AC Hipot Tester, 0-10,000V ac, 0-10mA

AC output: up to 10,000 V.
Microcontroller Technology, one button test, easy to setup, LED's indicate test progress. Upon failure, buzzer sounds and testing is terminated
Output voltage, leakage current limit, voltage ramp-up time and test duration are controlled from the front panel

General Specifications
Voltage Test Type	AC
Maximum Output Voltage	0-10,000VAC
Maximum Leakage Current	AC: 0-8000V=10mA, 10000V=8mA
Input Voltage	120 V *optional different line voltages available (100V, 110V, 220V, 230V, 240V)
Frequency	60 Hz
Fuse	120/230 VAC 2 A Slow Blow
Breakdown Detect	Independent High Frequency Circuit
Transformer Power	<500 VAC
Leakage Current Detect	Independent Low Frequency Circuit
Ramp Time Range	1-5 Seconds
Test Time Range	1-60 seconds
Display	4 Digits LED Display
Voltage Meter Accuracy	± 2%
Leakage Current Accuracy	± 0.1 mA Full Scale
Duty Cycle	100%
Operation Temperature	15-40 °C
Relative Humidity Range	0-90 % Non-Condensing
Dimensions	10 in Wide x 5 in High x 12 in Deep
Weight	18 lbs

Tech Specs

Safety Testing / Surge Testing/Hipot Tester Template
Test Type Hipot	AC
Max AC Test Voltage	10000 V (10 kV)
Min AC Test Voltage	0 V
Test Equipment General Attributes
Product Weight	18 LBS
Product Height	8.00 IN
Product Length	16.00 IN
Product Width	16.00 IN
Shipping Height	8.00 IN
Shipping Length	16.00 IN
Shipping Width	16.00 IN
