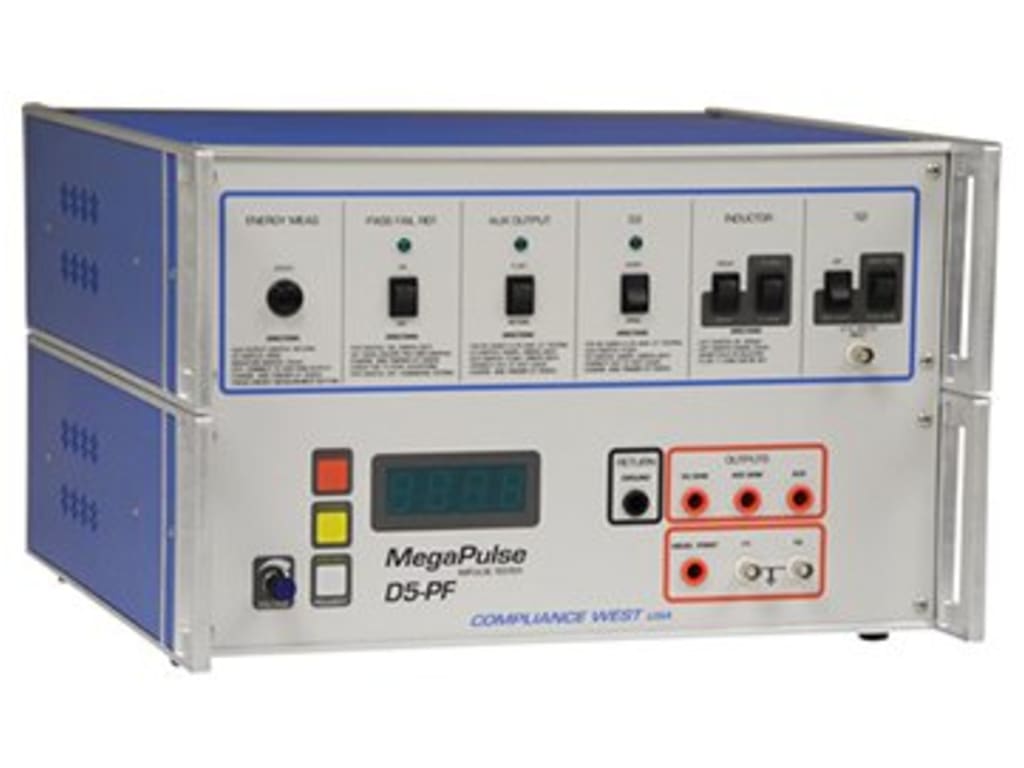

Defib-proof and Energy Reduction Tester
Surge tester built to the requirements of IEC 60601-1:2005 (Issue 3) Figure 10 (IEC 60601-1 Figure 50 in older versions). Conducts IEC 60601-1:2006 Figure 11; IEC 60601-2-34 Issue 2 (optional); IEC 60601-2-34 Issue 3 (included); IEC 60601-2-49; EC-13; EC-53 and the new requirement of IEC 60601-2-25:2011 and IEC 60601-2-27:2011 Tests of protection against the effects of defibrillation (Common mode, Differential mode), Energy reduction test (EC-13). All these tests use the same 5000V source with difference in output wave shaping. The various wave shaping output circuits required for each test are included in the D5-PF.
The more remarkable changes of the D5-PF version are: output voltage selected digitally, direct joules readout, increased accuracy, faster time between pulses "20 seconds", increased signal generator voltage, pass/fail reference is integrated, dry cap is used and USB Testminder is standard.and our unique feature Integrated energy measurement.
Options:
100X: HV jumper to disconnect the internal 100ohm resistor and use external Energy measurement devices like Fluke 7000DP and 7010.
VH: Charges and maintains the voltage fixed at 5000V.
34: Incorporates a circuit for Invasive Blood Pressure test (IEC 60601-2-34 Issue 2)
SG: Built in Sine Wave Generator 20Vp-p.
GVAC: Vacuum trigger Relay
Option 220, 230 and 240: For diferent line voltage, 220 for 220 V, 230 for 230 V and 240 for 240 V
