Compliance CDT-240 Capacitor Discharge Tester V2, 8A with CBX Built In for Functionality Test

Name: Compliance CDT-240 Capacitor Discharge Tester V2, 8A with CBX Built In for Functionality Test
Brand: Compliance West
SKU: ComplianceCDT-240
Availability: InStock

0 reviews | Catalog: 00-CDT-240 | Model: Compliance West CDT-240

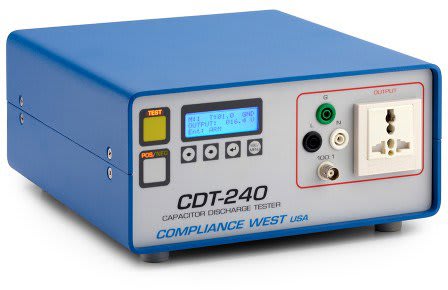

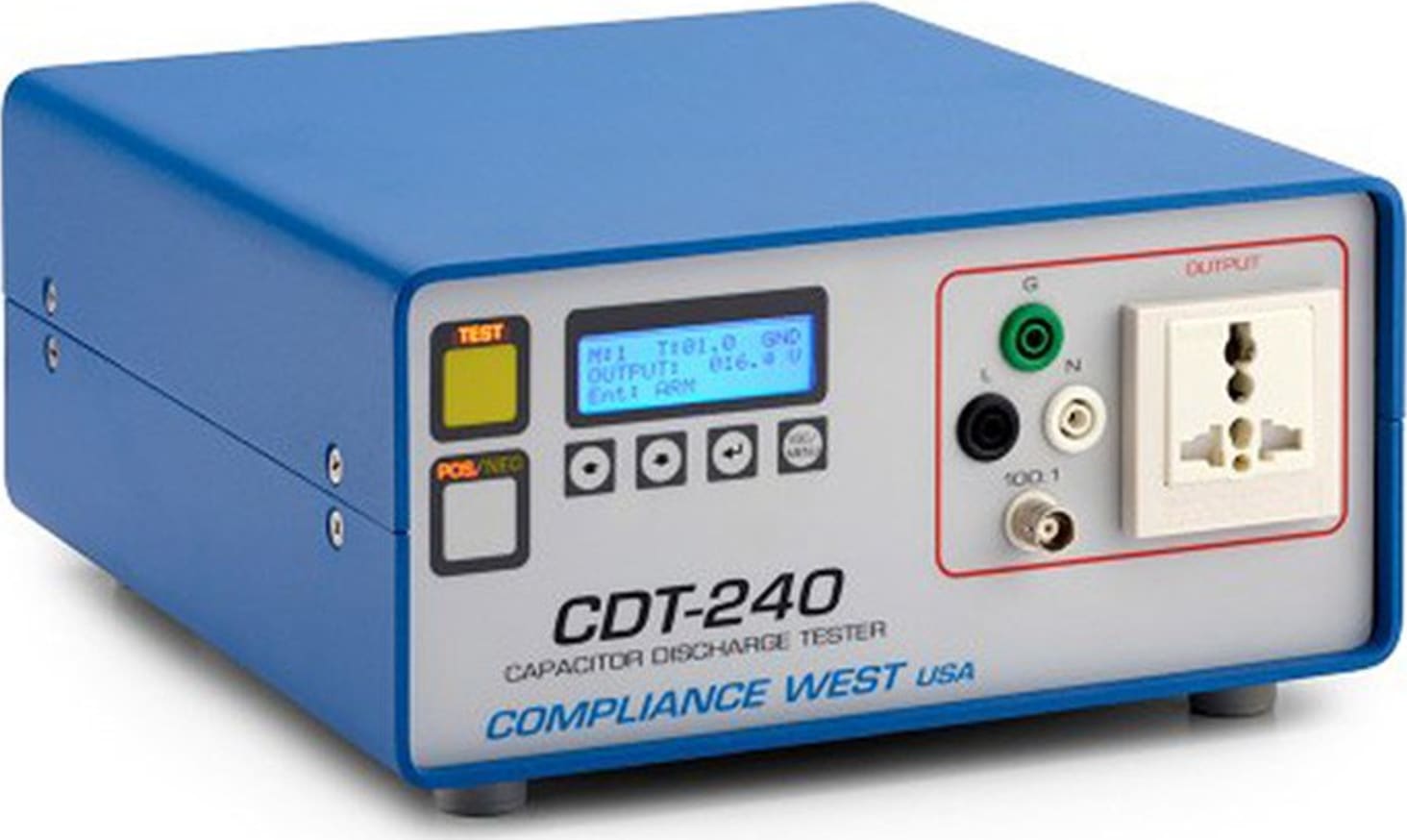

Compliance CDT-240 - Capacitor Discharge Tester V2, Front

Images (4) | Videos (6)

Compare

Capacitor Discharge Tester V2, 8A With CBX built in for functionality test!

Accurate; in accordance with CTL voltage and time specifications
Disconnects input test voltage at positive or negative peak, normal and reversed polarity
Tests Line-Ground, Line-Neutral and Neutral-Ground
Micro-controller Technology, one button test, easy setup, LCD display indicates test results
Maximum Rated Test Current 8A, 15A optional
Ergonomically designed for safety, speed and efficiency
Designed for product development, production and laboratory use
Rugged construction that can withstand a 6" drop with no damage
Cables, manual and calibration certificate included
One year warranty

View Product Details

In Stock:

View Payment Options

Recommended for you

Compliance CDT-240 - Capacitor Discharge Tester V2, 8A with CBX Built In for Functionality Test

Accurate test results within seconds
Designed with presets to implement the plug discharge test described in IEC 61010, 60065 and 60335
Meets or exceeds accuracy specifications of CTL DSH 251e
Easy to configure one button test

For IEC Testing of residual voltage after plug disconnect. The CDT-240 V2 disconnects the line at the voltage peak and analyzes results to the requirements of various Standards, allowing quick results. Scope output for viewing decay waveform. Presets for EN 61010, EN 60065, EN 60950, EN 60601-1 and EN60335. Recommendations for Pluggable Type B equipment. NIST calibration supplied; A2LA calibration available. 15A option for testing large equipment.

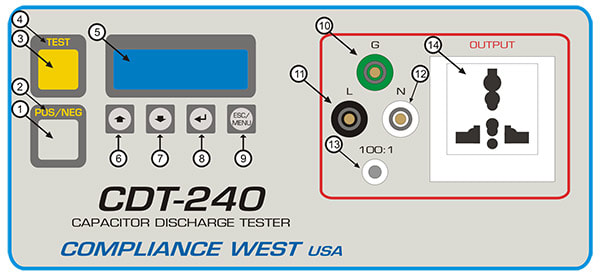

Front Panel Controls, Indicators and Connectors

ITEM	NAME	FUNCTION
1	POS/NEG Button	POS/NEG Button, N/A.
2	POS/NEG LED	POS/NEG LED indicate the polarity selected.
3	TEST Button	TEST Button is used to ARM and START the test.
4	TEST LED	TEST LED flashes after pressing TEST button indicating the unit is ARM. Second press of TEST button runs the test.
5	LCD Display	3 x 16 LCD display
6	UP Button	UP Button is used to move UP in the menu and to increase value when editing a parameter.
7	DOWN Button	DOWN Button is used to move DOWN in the menu and to decrease value when editing a parameter.
8	ENTER (RTN)	ENTER (RTN) Button is use to Enter/Select in the menu and to save changes when editing a parameter.
9	ESC/MENU	ESC/MENU is used to escape and go to Main Menu
10	EUT Ground	Individual jack for Ground where EUT can be connected
11	EUT Line	Individual jack for Line where EUT can be connected
12	EUT Neutral	Individual jack for Neutral where EUT can be connected
13	100:1 BNC	BNC 100:1 voltage output for connection to an oscilloscope. The signal is used for reference viewing of the residual voltage signal
14	EUT Output Jack	Universal output jack where EUT will be connected. This Jack carries Line, Neutral and Ground.

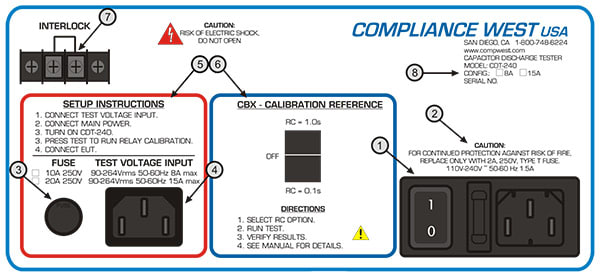

Rear Panel Controls, Indicators and Connectors

ITEM	NAME	FUNCTION
1	Appliance Inlet / Fuse holder / Power Switch	Use supplied cord set to connect tester to appropriate source of supply. Replace line fuse. Turn Tester ON/OFF.
2	Fuse replacement warning / Rating of supply	Specifies replacement fuse and required supply voltage for the CDT-240 tester.
3	Fuse (Test Voltage, EUT)	Fuse 10A, 250V, time delay, 1-1/4" x 1/4". For CDT-240 8A Fuse 20A, 250V, time delay, 1-1/4" x 1/4". For CDT-240 15A
4	Test Voltage Input	Voltage supply for the EUT.
5	Setup Instructions	Instructions of how to setup your CDT-240.
6	CBX Switch	Selects RC for calibration reference.
7	Interlock Switch	Emergency Stop. Short: Enables the tester buttons for operation. Open: Stops any process in the tester and disables the buttons.
8	Tester Configuration	Tester configuration 8A or 15A.

1 x Capacitor Discharge Tester with CBX built in
2 x AC Power cord, 18AWG, 4ft long (PN:70-101)
1 x Test Lead for CDT, Green, 4ft long (PN:00-HVTL-CDT-G-4)
1 x Test Lead for CDT, Black, 4ft long (PN:00-HVTL-CDT-B-4)
1 x Test Lead for CDT, White, 4ft long (PN:00-HVTL-CDT-W-4)
1 x Instruction Manual
1 x NIST Traceable Calibration Certificate to MIL-STD45662-A
1 x Calibration Data Copy

Testing Circuitry
Minimum / Maximum Test Voltage	90Vrms min/ 270Vrms max
Maximum Test Current	8 A, 15A available when order extra option PN: 00-CDT-15A
Fuse	10A, 250V, time delay, 1-1/4" x 1/4" or 20A 250V, time delay, 1-1/4" x 1/4" with option 00-CDT-15A
Probe Impedance	> 100 MΩ, < 25pF
AC Peak Detection Accuracy	EUT disconnect within 5% of supply voltage peak
Test Time Range	0.50 – 10.0 Seconds
Voltage Setting Range/Measurement Range	+/-30 to 388V
Voltage Setting Resolution	1V
Test Time Accuracy	+/- 1% for times ≥ 1 second, +/- 10ms for < 1 second.
Voltage Meter Accuracy	+/- 1.5% of instrument measuring range; +/- 2% +/- 0.8V up to 381Vpeak
Frequency	50-60Hz
ELECTRICAL
Rated Input Voltage	110-240 V
Frequency	50/60 Hz
Fuse	2 A, 250V, time delay, 5 x 20 mm
ENVIRONMENTAL
Operation Temperature	15 - 40 °C
Relative Humidity Range	0 – 90 % Non-Condensing
SAFETY
(XI) Safety Interlock	2 pin terminal block on rear panel, shorted for tester operation
GENERAL
Dimensions	9-1/4” Wide x 4-3/4” High x 10” Deep
Weight	5.8 lbs.
BNC OUTPUT	Referenced to ground, 100:1 of measured voltage (L-N, L-G, N-G) +/-2%

LCR Meters / Impedance Measurement Products /Capacitance Testers Template
Type	Benchtop
Accuracy Ranges	+/- 1 %
Test Equipment General Attributes
Unique Features	AC Test Voltage Range 50-240 Vrms Microcontroller technology, one button test, easy to set up LCD Display indicate test progress
Warranty	1 YEARS
Product Weight	5.8 LBS
Product Height	4.75 IN
Product Length	12.00 IN
Product Width	9.25 IN
Calibration Included	NIST Calibration
Country of Origin	United States
Shipping Height	7.00 IN
Shipping Length	12.00 IN
Shipping Width	12.00 IN
Other Information	Depth:: 10"
