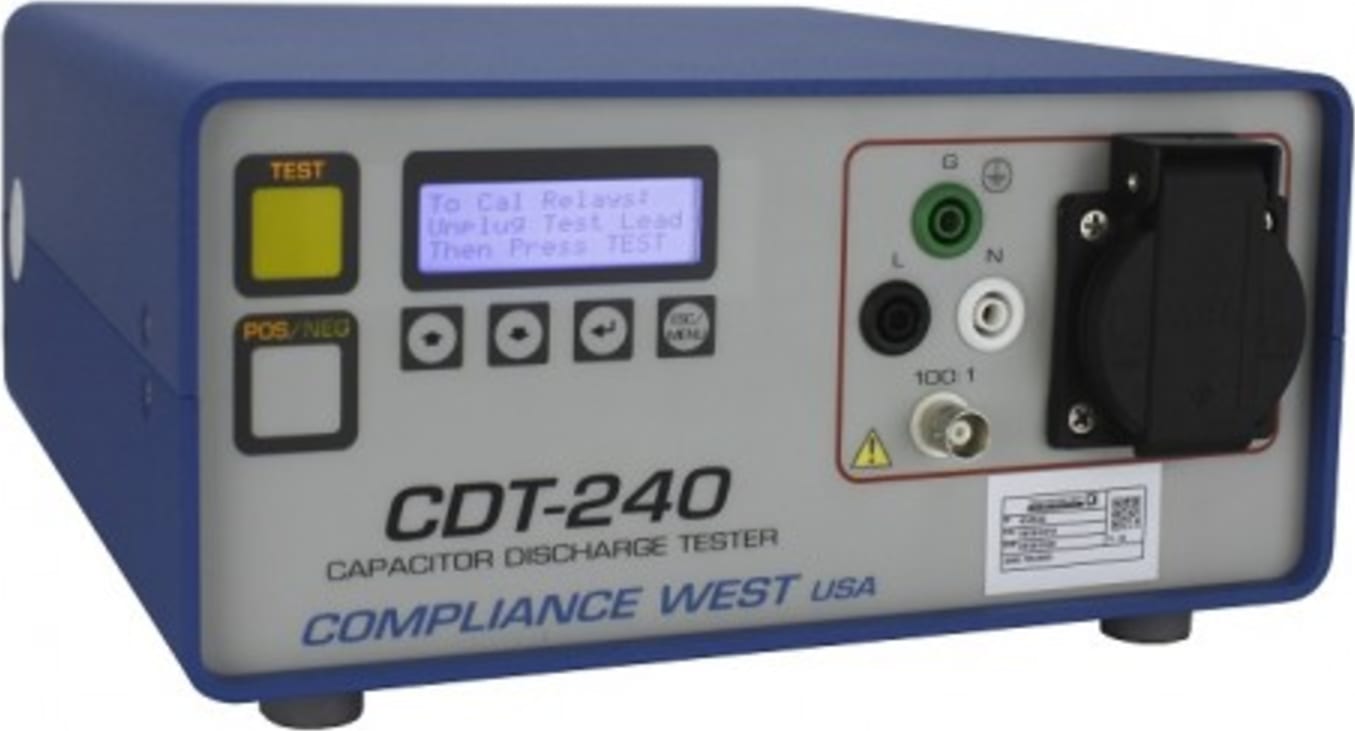

Compliance CDT-240 8A CE Approve - Capacitor Discharge Tester 8A, CE Approved

Name: Compliance CDT-240 8A CE Approve - Capacitor Discharge Tester 8A, CE Approved
Brand: Compliance West
SKU: ComplianceCDT-240 8A CEApprove
Price: 3175.32 USD
Availability: InStock

0 reviews | Catalog: 00-CDT-240-V3 | Model: Compliance West CDT-240 8A CEApprove

Compare

Capacitor Discharge Tester 8A, CE Approved. CBX built in for functionality test!

Accurate; in accordance with CTL voltage and time specifications
Disconnects input test voltage at positive or negative peak, normal and reversed polarity
Tests Line-Ground, Line-Neutral and Neutral-Ground
Micro-controller Technology, one button test, easy setup, LCD display indicates test results
Maximum Rated Test Current 8A, 15A optional
CBX built in for functionality test
Ergonomically designed for safety, speed and efficiency
Designed for product development, production and laboratory use
Rugged construction that can withstand a 6" drop with no damage
Cables, manual and calibration certificate included; One year warranty

View Product Details

List Price: $3,260.00

Your Price: $3,175.32

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Compliance West CDT-240 8A CEApprove Capacitor Discharge Tester 8A, CE Approved. CBX built ...	Compliance West CBX CDT Calibration Box	Compliance West CDT-240 V2 8A Capacitor Discharge Tester V2, 8A With CBX built in for Func ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Compliance CDT-240 8A CE Approve

Accurate test results within seconds
Designed with presets to implement the plug discharge test described in IEC 61010, 60065 and 60335
Meets or exceeds accuracy specifications of CTL DSH 251e
Easy to configure one button test

Capacitor Discharge Tester 8A, CE Approved

The CDT-240 is for IEC Testing of residual voltage after plug disconnect. The CDT-240 disconnects the line at the voltage peak and analyzes results to the requirements of various standards, allowing quick results. The CDT-240 includes scope output for viewing decay waveform, presets for EN 61010, EN 60065, EN 60950, EN 60601-1 and EN60335, recommendations for Pluggable Type B equipment, NIST calibration, A2LA calibration available, and 15A option for testing large equipment.

Please see Documents section for Additional Information CDT-240.

CDT-240-V2 Capacitor Discharge Tester with CBX built in
70-101-US-001 AC Power Cord NEMA 5-15P C19
00-HVTL-CDT-G-4 (Test Lead for CDT, Green, 4ft long)
00-HVTL-CDT-B-4 (Test Lead for CDT, Black, 4ft long)
00-HVTL-CDT-W-4 (Test Lead for CDT, White, 4ft long)
Instruction Manual
NIST Traceable Calibration Certificate to MIL-STD45662-A
Calibration Data Copy

Tech Specs

LCR Meters / Impedance Measurement Products /Capacitance Testers Template
Type	Benchtop
Max Test Frequency	60 kHz (60000 Hz)
Accuracy Ranges	EUT disconnect within 5% of supply voltage peak
Auto Ranging	No
Data Hold	No
Test Equipment General Attributes
Shipping Weight	7 LBS
Shipping Height	7 IN
Shipping Length	12 IN
Shipping Width	12 IN
