MegaPulse 1.2x50-12P 12 ohm, 400-12kV, 3 sec charge time, 12 ohm virtual impedance

Generates the waveform required by IEC 384, Annex A, for Surge voltage testing of capacitors.
Designed with operator safety in mind: Set up the EUT to the right and behind the tester, and a right-handed operator will find himself standing to the left of the tester, allowing maximum separation.
Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse Capacitor Tester, allowing easy sanity checks and proof to visiting agency engineers of test setups.
Optional 1000:1 BNC Oscilloscope output allows quick connections and easy evaluation of output waveforms.
Reverse polarity waveforms available by pushing a button on the front panel. No need to change the test setup. Positive polarity indication minimizes errors.
Front panel voltage meter shows residual voltage in charging circuit for safer operation.
1-year calibration cycle.
All test leads included.
1 year warranty.

View Product Details

List Price: $9,340.00

Your Price: $9,097.40

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

Compliance CAP A PF

Micro-controller technologies, front panel voltage meter indicates test peak open circuit voltage and polarity.
Output voltage is controlled manually from the front panel.
Ergonomically designed for safety, speed and efficiency.
Cables, manual and calibration certificate included.

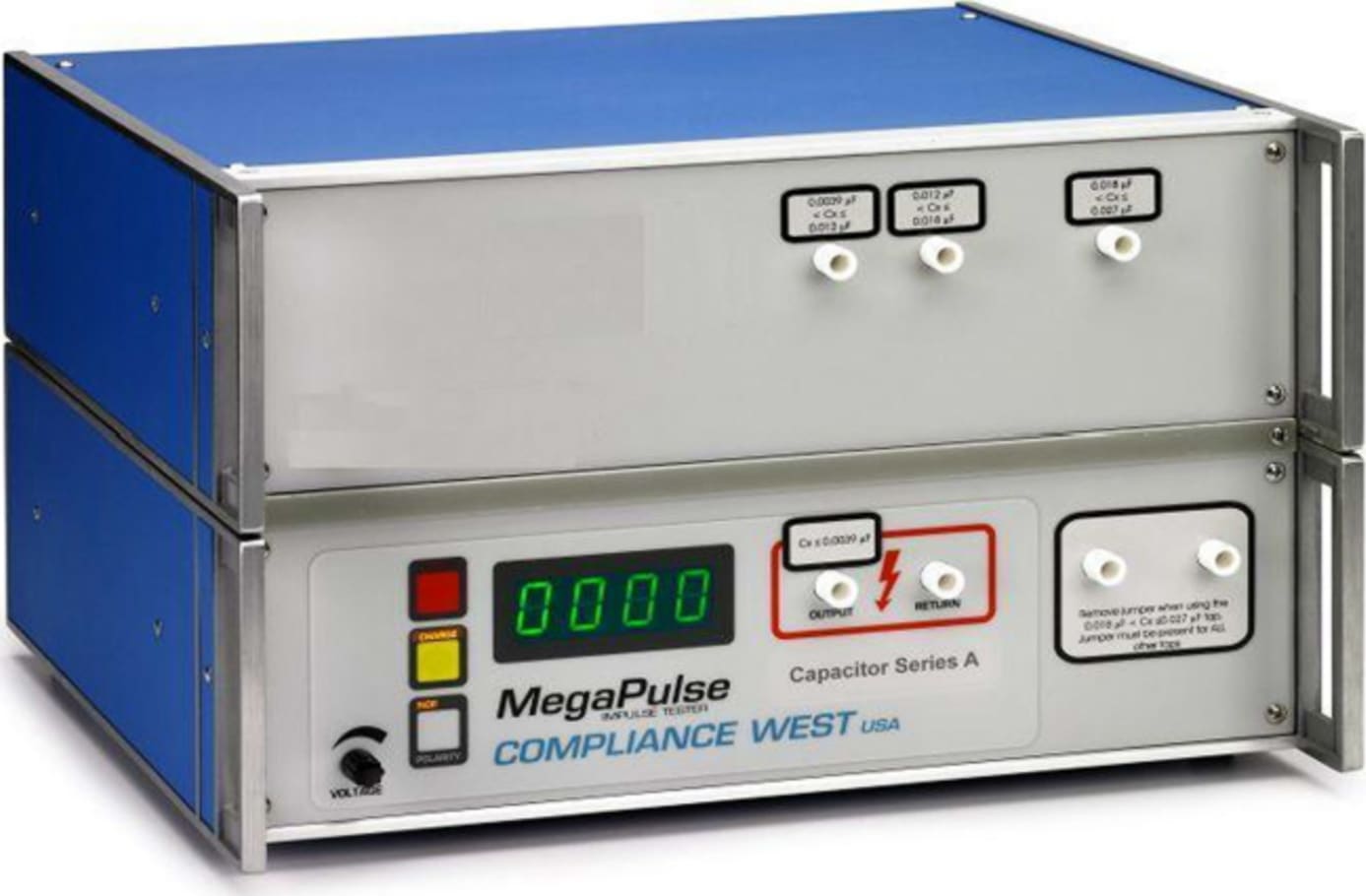

MegaPulse 1.2x50-12P (12 Ohm, 400-12kV, 3sec Charge Time, 12 Ohm Virtual Impedance)

A Compliance West surge Tester. That means it outputs a guaranteed waveform but won't break the bank. The tester outputs the waveform it is supposed to, time after time.

Built in the USA. Email and phone support free for life. Reasonable repair calibration charges. Timely and helpful customer service always.

Complies with the standard IEC 60384-14

General Specifications
Charge Voltage:	400 - 8000V tolerance ±3% F.S.
Main Capacitance:	0.25uF ±10%
Pulse duration:	46uS (0 + 50%)
Rise Time:	1.2uS (0 + 50%)
Voltage Control:	Digital Set point adjusted by frontal VOLTAGE knob or by PC (optional)
Polarity Control:	Positive only
Voltage Display:	4 Digit LED Display
Voltage Meter resolution:	5V
Duty Cycle:	1 pulse every 10 seconds
Line Voltage:	120VAC, 50/60Hz * (optional different line voltages available 100V, 220V, 230V and 240V)
Environmental
Operating Temperature:	15-40 ºC
Relative Humidity Range:	0-90% non-condensing
Dimensions:	17” wide x 17” high x 17” in deep
Weight:	68 lbs approx.
