Compliance CAL-MP-1.2X50-7P Calibration of MegaPulse 1.2X50-7P

Name: Compliance CAL-MP-1.2X50-7P Calibration of MegaPulse 1.2X50-7P
Brand: Compliance West
SKU: ComplianceCAL-MP-1.2X50-7P
Price: 487.01 USD
Availability: InStock

0 reviews | Catalog: CAL-MP-1.2X50-7P | Model: Compliance West CAL-MP-1.2X50-7P

Compare

Calibration of MegaPulse 1.2X50-7P, Calibration Certificate, Data, Waveforms

Calibration of MegaPulse 1.2X50-7P

View Product Details

List Price: $500.00

In Stock:

View Payment Options

Recommended for you

Compliance CAL-MP-1.2X50-7P Calibration of MegaPulse 1.2X50-7P Calibration Certificate, Data, Waveforms

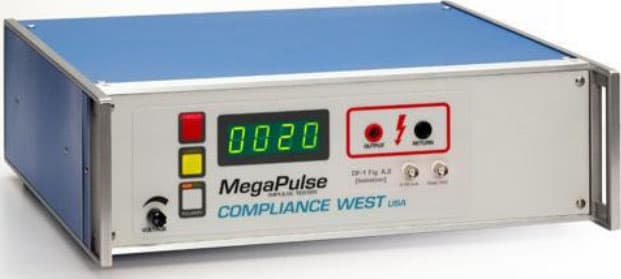

The MegaPulse 1.2x50-7P waveform is designed to pro vide the pulse needed to conduct the Test described in EN60950, Annex N, Table N.1, Line 2 for Data Processing Equipment. This tester can test for the Australian Deviation, which requires a 7kV peak surge. The waveform is in tolerance with the requirements of IEC 1180 from 1000-7000V at the bulk cap and has an output impedance of 38 ohms. The fr ont panel meter reads the bulk capacitor voltage (not the output voltage) in accordance with the requirements of Annex N. Optionally built with a relay conforming to the req uirements of IEC 60065, Figure 7b. Optionally equipped with a 1000:1 reference BNC for reading peak voltage only. Optionally equipped with TestMinder, allowing compu ter control via USB.

Specifications
ELECTRICAL
Output	Up to 7000 Volts at bulk cap; controlled by front panel knob. Bulk capacitor voltage is displayed on the front panel meter. Positive or ne gative polarity is chosen via front-panel button.Virtual Impedance: 38 ohms.
Voltage Waveform	1.2x50us @ 1000-7kV at bulk cap: Per EN60950 Annex N (incl Australian Deviation). Peak Value: 1000-7kV ±3% (independent of meter tole rance). Front time: 1.2uSec ±30% [Trise= 1.67 (T90%-T30%)] per IEC 1180. Duration: 50uSec ±20% (Time to half-value) per IEC 1180
Current Waveform	(not defined) 38 ohm tester outputs up to 185A peak
Charge Time	<5 seconds.
Meter Accuracy	±3% 1000-7kV.
Test Adjustments	Amplitude via front panel knob and shown on front panel digital meter.Polarity adjustment via front panel button.
ENVIRONMENTAL
Operating Temperature	: 15-40 ̊C.
Relative Humidity Range	0-90% non-condensing
GENERAL
Input Power Requirements	114-128V, 50/60Hz, 2A.
Weight	20 lbs. approx. Shipping weight 30 lbs.
Dimensions	3U x 17” x 17”, 6U x 17” x 17” (IEC switch).
OPTIONS AND OPERATION
Manual operation	Operator connects the provided output and return c ables to the MegaPulse and the DUT. Operator select s waveform polarity, pushes the CHARGE button on the front panel and wa its until the front panel meter indicates test volt age. Operator conducts the test by pushing the TRIGGER button on the fron t panel.
Options
RI	Relay isolated relays for connection to customer PLC via USB.
TMM	TestMinder allows test to be timed using computer clock and run from a PC.
240	240V mains operation.
230	230V mains operation.
220	220V mains operation.
BNCV	Voltage BNC 1000:1 (Reference only).
IER	IEC 65 Figure 7b switch. (6U enclosure).
