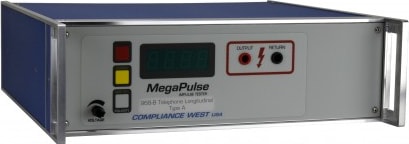

968-B Telephone Longitudinal Type A 1500V 7.5 Ohm 8x210uSec

Generates the waveforms required by TIA/EIA-IS-968 (formerly known as FCC Part 68), Section 4.1.2.2, for testing of Unpackaged Registered Terminal Equipment and Registered Protective Circuitry
Designed with operator safety in mind: Set up the EUT to the right and behind the tester, and a right-handed operator will find himself standing to the left of the tester, allowing maximum separation
Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse within the 968 Series, allowing checks and proof of test setups
Reverse polarity waveforms available by pushing a button on the front panel. No need to change the test setup. Positive polarity indication minimizes errors
Front panel voltage meter shows residual voltage in charging circuit for safer operation
1-year calibration cycle
All test leads included

View Product Details

List Price: $7,070.00

Your Price: $6,886.36

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Compliance 968-B Phone Long A

Generates the waveforms required by TIA/EIA-IS-968 (formerly known as FCC Part 68), Section 4.1.2.2, for testing of Unpackaged Registered Terminal Equipment and Registered Protective Circuitry
Designed with operator safety in mind: Set up the EUT to the right and behind the tester, and a right-handed operator will find himself standing to the left of the tester, allowing maximum separation
Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse within the 968 Series, allowing checks and proof of test setups

968-B Telephone Longitudinal Type A 1500V 7.5 Ohm 8x210uSec

Designed to generate the surge test described in TIA-968-B, Section 4.1.2.2, Longitudinal Telephone line surge - Type A. Peak voltage is 1500 volts minimum, peak short circuit current is 200A minimum. A switch is provided for reversal of output polarity. TestMinder P USB computer control optional.

The waveform generated is 10x160/10x160, Vp=1500V. To test, the front panel voltage meter is set to 1500V.

Waveshape Reference	Voltage: TIA-968-B
Waveshape Reference	Current: TIA-968-B
Voltage Peak	1500v Minimum
Voltage Pulse Front Time	6µs - 10µs (1.67 times between 30% and 90%)
Voltage Pulse Decay Time	160µs - 260µs
Current Peak	200A Minimum
Current Pulse Front Time	5µs - 10µs
Current Pulse Decay Time	160µs - 210µs
Input Voltage	120V ~ 50-60hz
Meter Voltage Accuracy	+/- 3%
Polarity Control	Positive / Negative
Dimensions (W x H x D)	17in x 17in x 6in
Weight	30lbs
