Compliance 746E P - MegaPulse 1.2x50-10P PV, Rated to 10KV

Name: Compliance 746E P - MegaPulse 1.2x50-10P PV, Rated to 10KV
Brand: Compliance West
SKU: Compliance746E P
Price: 10685.06 USD
Availability: InStock

0 reviews | Catalog: 00-MP746E P | Model: Compliance West 746E P

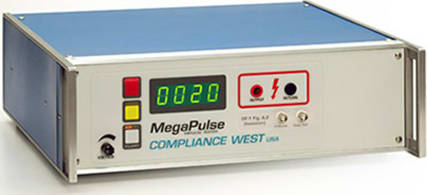

Compliance West 746E P MegaPulse 1.2x50-10P PV (Rated to 10KV)

Compare

Departments
Series

About

MegaPulse 1.2x50-10P PV, Rated to 10KV, Tester includes CC option with 0 nF tap, no fast charge

The MegaPulses are used with a general purpose oscilloscope for waveform capture and evaluation.
The MEGAPULSE 746E is designed to test Conformal Coatings in accordance with UL 746E, Paragraph 19.3 at up to 6kV.

View Product Details

Departments
Series

About

Recommended for you

Compliance 746E P

The MegaPulses are used with a general purpose oscilloscope for waveform capture and evaluation.
The MEGAPULSE 746E is designed to test Conformal Coatings in accordance with UL 746E, Paragraph 19.3 at up to 6kV.
Mode of Operation: Automatic; stop with external interlock.

MegaPulse 1.2x50-10P PV, Rated to 10KV

UL 746E Section 19 covers requirements for conformal coatings used instead of electrical spacings to increase the dielectric withstand voltage between traces on a printed-wiring board. Paragraph 19.3 outlines a Voltage transient test to be applied to a specific test pattern allows testing to determine spacings. The Surge Generator circuit is specified in UL 746E, Figure 19.2 is contained in the MegaPulse 746E. One press of the MegaPulse 746E TRIGGER button conducts the test suite as described in UL 746E, Para. 19.3. See the schematic in the Datasheet section on this page.

Note: Voltages 400V and over are certified to be in accordance with the tolerances of IEC 1180-1, Para. 6.2.2.

Provided with external interlock control. In addition, for automated testing, the MegaPulse 746E is available with TestMinder, our computer control and test reporting option. Use with a 32 bit Windows computer.

Provided with NIST Calibration Certificate good for one year. A2LA Calibration available.

General Specifications
Output:	In accordance with UL 746E, Para. 19.3, a-c.
Voltage Rise Time:	+/- 30% (400V +)
Voltage Fall Time:	+/- 20% (400V +)
Source Impedance:	50ohm +/- 10%
Source Energy:	not defined
Mode of Operation:	Automatic; stop with external interlock.
Charge Time:	<60 sec.
