The 10/700-7 is designed to test the separation of TNV-1 and -3 circuits from user-contacted parts as described by the test in Paragraph 6.4.2.1. The waveform generated is in accordance with the instructions in Annex N, Table N.1, line 1. In accordance with these requirements, the 10/700-2.5 can generate the required waveform with up to 7,000 volts peak A front panel switch reverses output polarity. Use with a general purpose oscilloscope for waveform capture.

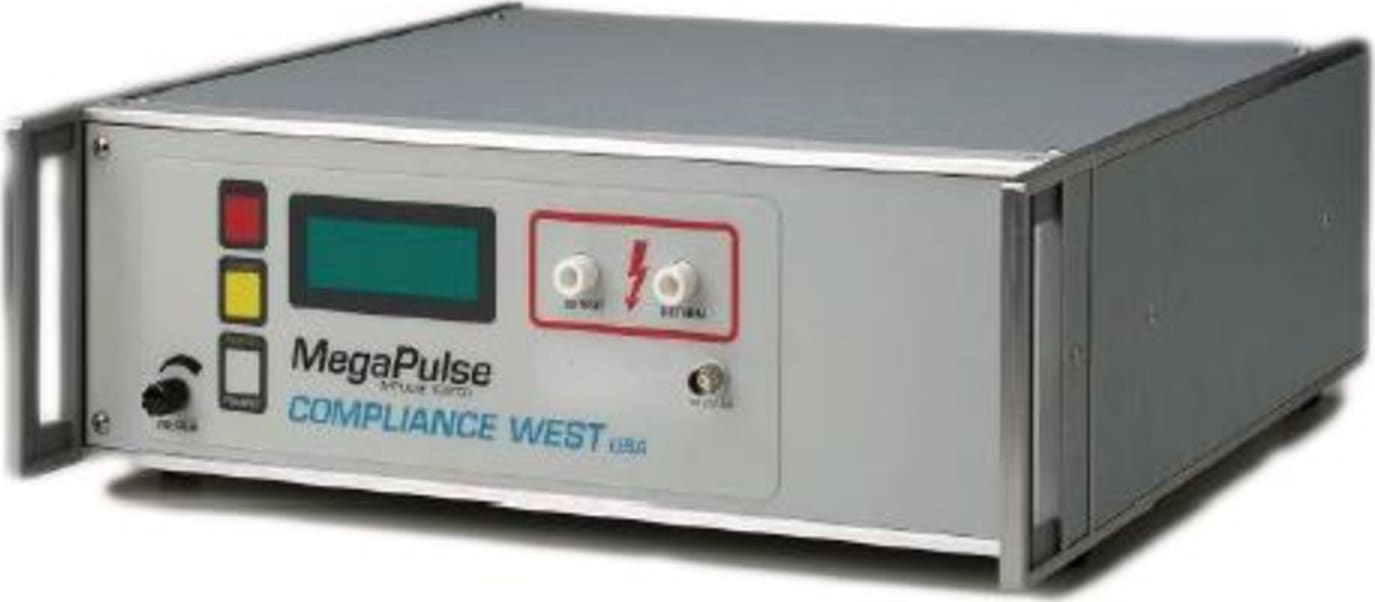

The MegaPulse 10/700-7 ships with cables, graphs of theoretical and actual waveforms, and a Calibration Certificate. One year warranty. Options include relay outputs for PLC control, and a 1000:1 oscilloscope output BNC jack.
