Peak output voltage is adjustable up to 2000 volts minimum, peak short circuit current is 200A minimum. A switch is provided for reversal of output polarity. Optional divider network available for oscilloscope connection.

Waveform generated is 10x1000x10/1000, Vp= 2000V. To perform the test, the front panel voltage meter is set to the voltage as determined by the test suite described in Paragraph 4.6.7.1, Protection Coordination. The 10Ω output tap is used for this test.

Two output taps are provided, one with Zout=6Ω and one with Zout=10Ω, to allow performance of Surge Tests in Issue 3, Paragraphs 4-2, 4-11, and 4-15.

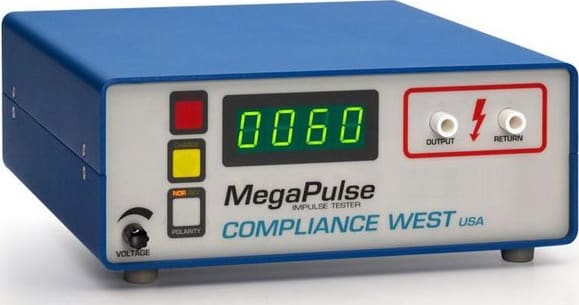

Enclosure is 19 x 3U, rack mountable (not as shown).

Outputs are isolated.

The MegaPulse 10x1000s-2 ships with cables, graphs of theoretical and actual waveforms, and a Calibration Certificate. One year warranty. Options include relay outputs for PLC control, and two 1000:1 oscilloscope BNC jacks (differential mode only).

This tester can be configured with one, two, three or four outputs for testing in accordance with Table 4-1 Test Condition B.
