Compliance 10x1000s-1-1 - MegaPulse Impulse Tester, 1000V/100A Peak
Peak output voltage is 1000 volts minimum, peak short circuit current is 100A minimum. A switch is provided for reversal of output polarity. Optional divider network available for oscilloscope connection.
Waveform generated is 10x1000/10x1000, Vp= 1000V. To perform the Surge 1 test, the front panel voltage meter is set to 600V and the 6 ohm tap is used. To perform the Surge 3 test, the front panel voltage meter is set to 1000V and the 10 ohm tap is used.
Two output taps are provided, one with Zout=6Ω and one with Zout=10Ω.

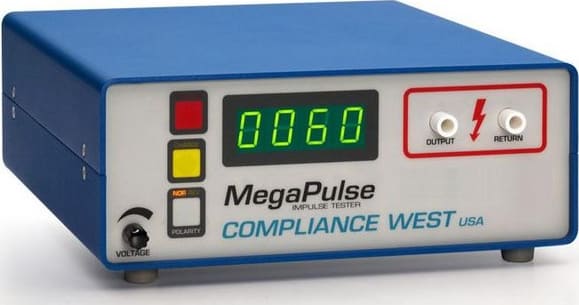

Enclosure is 19 x 3U, rack mountable (not as shown).
Outputs are isolated.
The MegaPulse 10x1000s-1 ships with cables, graphs of theoretical and actual waveforms, and a Calibration Certificate. One year warranty. Options include relay outputs for PLC control, and two 1000:1 oscilloscope BNC jacks (differential mode only).
