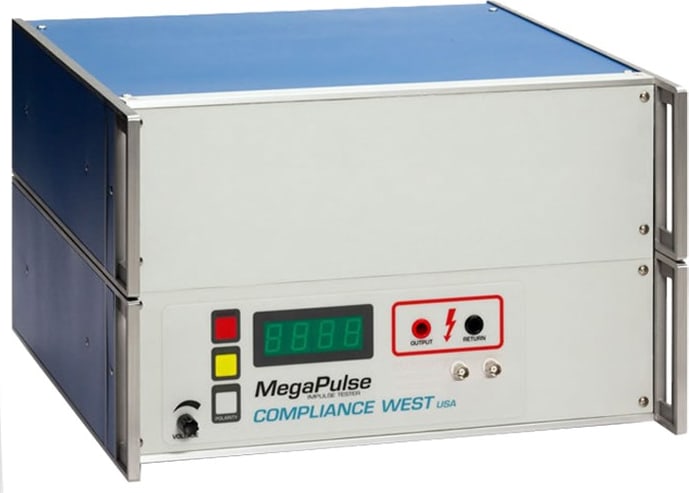

Compliance 1.2x50/8x20P-6 12ohm - Surge Tester, Pos/Neg Polarity, Floating Output, 500V Min, 360 Degree Pulse Insertion
Output 6kV to perform in accordance with the requirements of EN61000-4-5, Para. 6.1.1. The virtual impedance is 2 ohm, in accordance with the requirements of EN 61000-4-5 Table 2. The tester will charge within one minute in accordance with the maximum repetition rate specified in EN 61000-4-5. When used for power line testing with a CDN, our phase control circuit allows injection of the pulse in a range between 0º and 360º relative to the phase angle of the AC voltage powering the equipment under test, with an insertion tolerance of ±10%.
For automated multi-pulse testing, use our MegaPulse TestMinder option, which allows automated multiple pulse testing, controlled by a PC. The MegaPulse 1.2x50/8x20P-6 12 ohm ships with cables, graphs of theoretical and actual waveforms, and a Calibration Certificate. One year warranty. One year calibration cycle.
