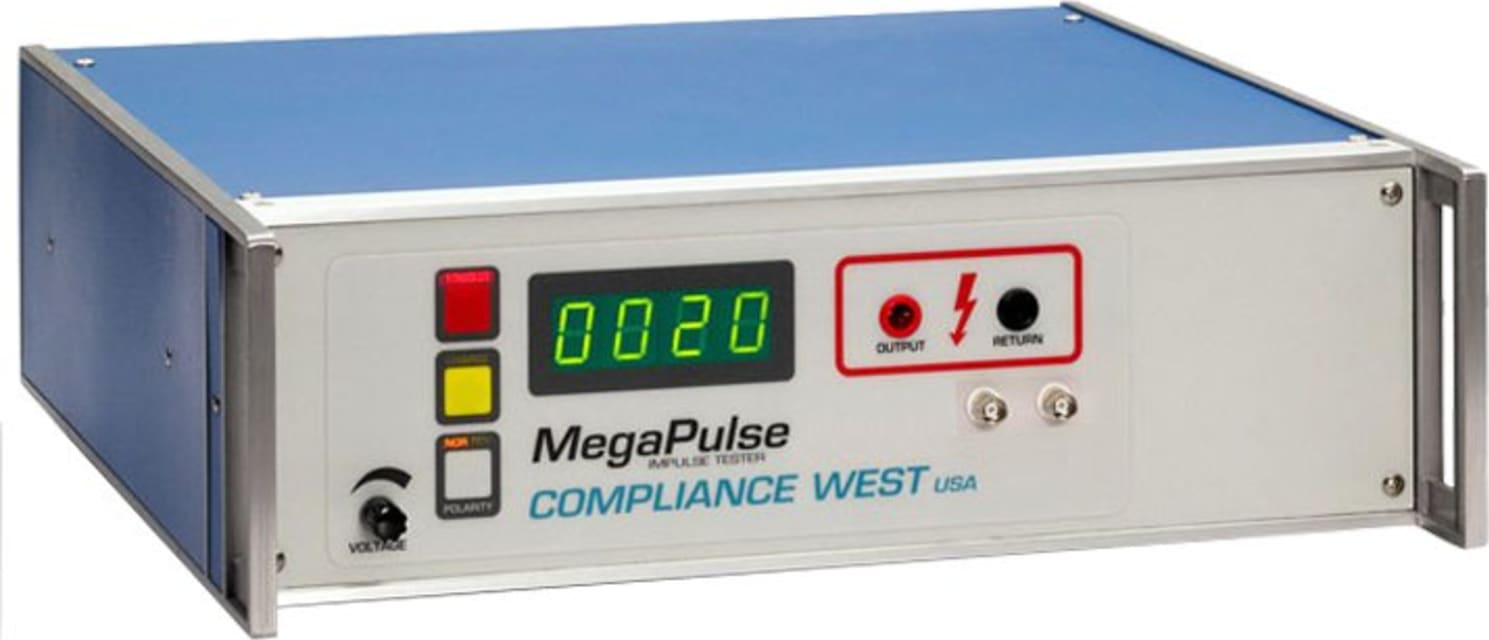

Compliance 1.2x50/8x20-6-1P - 2 Ohm Tester, No CDN or Phase Control Included

Name: Compliance 1.2x50/8x20-6-1P - 2 Ohm Tester, No CDN or Phase Control Included
Brand: Compliance West
SKU: Compliance1.2x50/8x20-6-1P
Availability: InStock

0 reviews | Catalog: 00-MP1.2x50/8x20P-4 2ohm | Model: Compliance West 1.2x50/8x20-6-1P

Compare

Surge Tester 1.2x50/8x20P-4 2ohm

Generates the waveforms required by GR-1089, Issue 1, 2 or 3 in accordance with the referenced Table or Paragraph.
Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse within the 968 Series, allowing easy sanity checks and proof to visiting agency engineers of test setups.
1000:1 BNC Oscilloscope output allows quick connections and easy evaluation of output waveforms.
Reverse polarity waveforms available by pushing a button on the front panel. No need to change the test setup. Positive polarity indication minimizes errors.
Additional outputs for four-wire testing, as needed, up to four.

View Product Details

In Stock:

View Payment Options

Call Us

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

Compliance West 1.2x50/8x20-6-1P Accessories

Choose a Category

Software

for the Compliance West 1.2x50/8x20-6-1P

Compliance West TMM TestMinder For MegaPulse P series w/repetitive pulse capability

Catalog: 00-TMM

(0)

In Stock!

Add to Cart

Compliance 1.2x50/8x20-6-1P - 2 Ohm Tester, No CDN or Phase Control Included

Peak output voltage is adjustable up to 6000 volts minimum, peak short circuit current is 3000A minimum. A switch is provided for reversal of output polarity. Optional divider network available for oscilloscope connection.

Compliance 1.2x50/8x20-6-1P Specifications
Voltage Rise Time:	1.2 μs
Voltage Duration:	50 μs
Current Rise Time:	8 μs
Current Duration:	20 μs
Max Voltage:	6000V
Meter Accuracy:	±140V Better than 1% of full-scale reading
Operating Temperature:	15-40°C
Relative Humidity Range:	0-90% Non-Condensing
Input Power Requirements:<	120 V AC, 50/60 Hz, 1 Amp 230 V optional; check with factory
Dimensions:	11.250 (W) x 12.000 (D) x 5.000 (H) in.
Weight:	16 lbs.
