• Generates the waveforms required by GR-1089, Issue 1, 2 or 3 in accordance with the referenced Table or Paragraph.
• Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse within the 968 Series, allowing easy sanity checks and proof to visiting agency engineers of test setups.
• 1000:1 BNC Oscilloscope output allows quick connections and easy evaluation of output waveforms.
• Reverse polarity waveforms available by pushing a button on the front panel. No need to change the test setup. Positive polarity indication minimizes errors.
• Additional outputs for four-wire testing, as needed, up to four.

Peak output voltage is adjustable up to 2500 volts minimum, peak short circuit current is 1000A minimum. A switch is provided for reversal of output polarity. Optional divider network available for oscilloscope connection.

Waveform generated is 1.2x50/8x20, Vp= 2500V. To perform the Test, the front panel voltage meter is set to 2000V, or other value specified in Note 4.

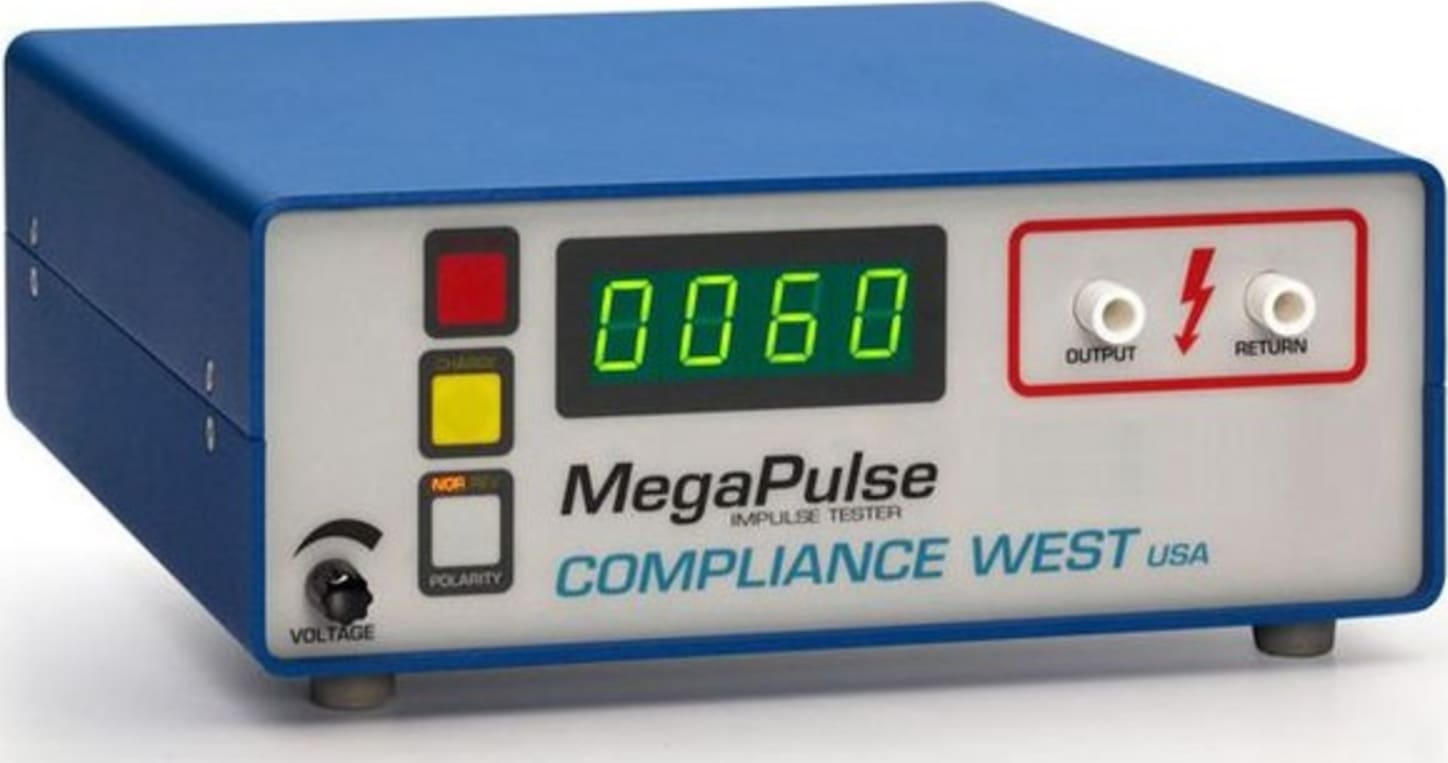

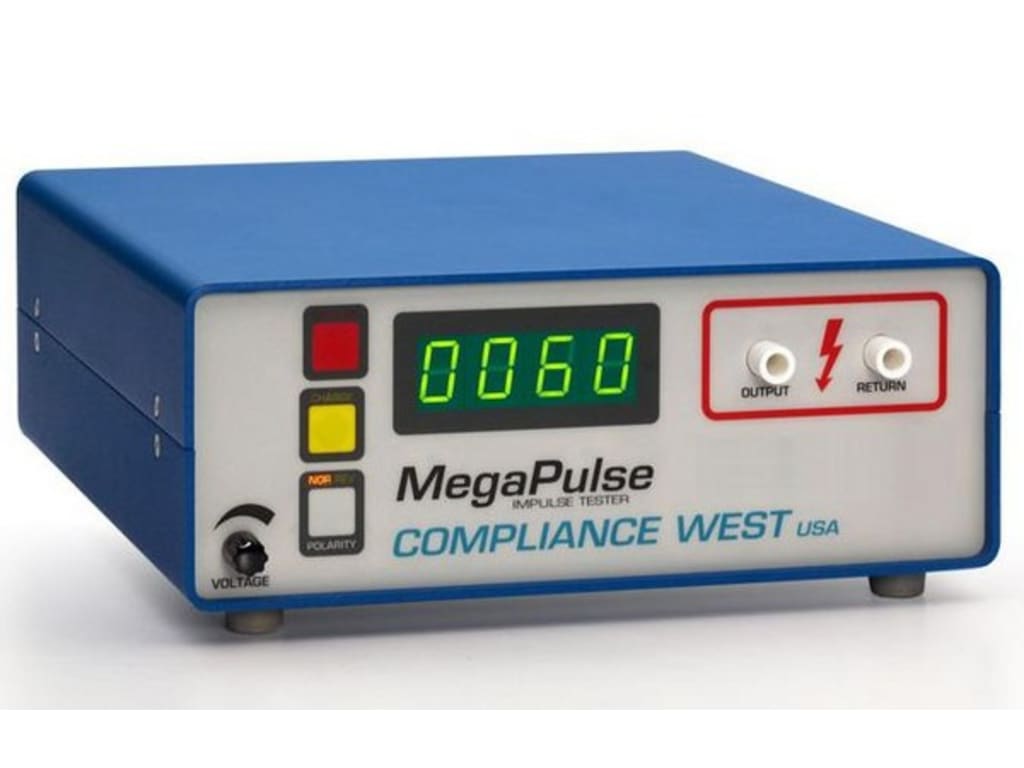

Enclosure is 19 x 3U, rack mountable (not as shown).

Outputs are isolated.

The MegaPulse 1.2x50/8x20-2.5 ships with cables, graphs of theoretical and actual waveforms, and a Calibration Certificate. One year warranty. Options include relay outputs for PLC control, and two 1000:1 oscilloscope BNC jacks (differential mode only).
