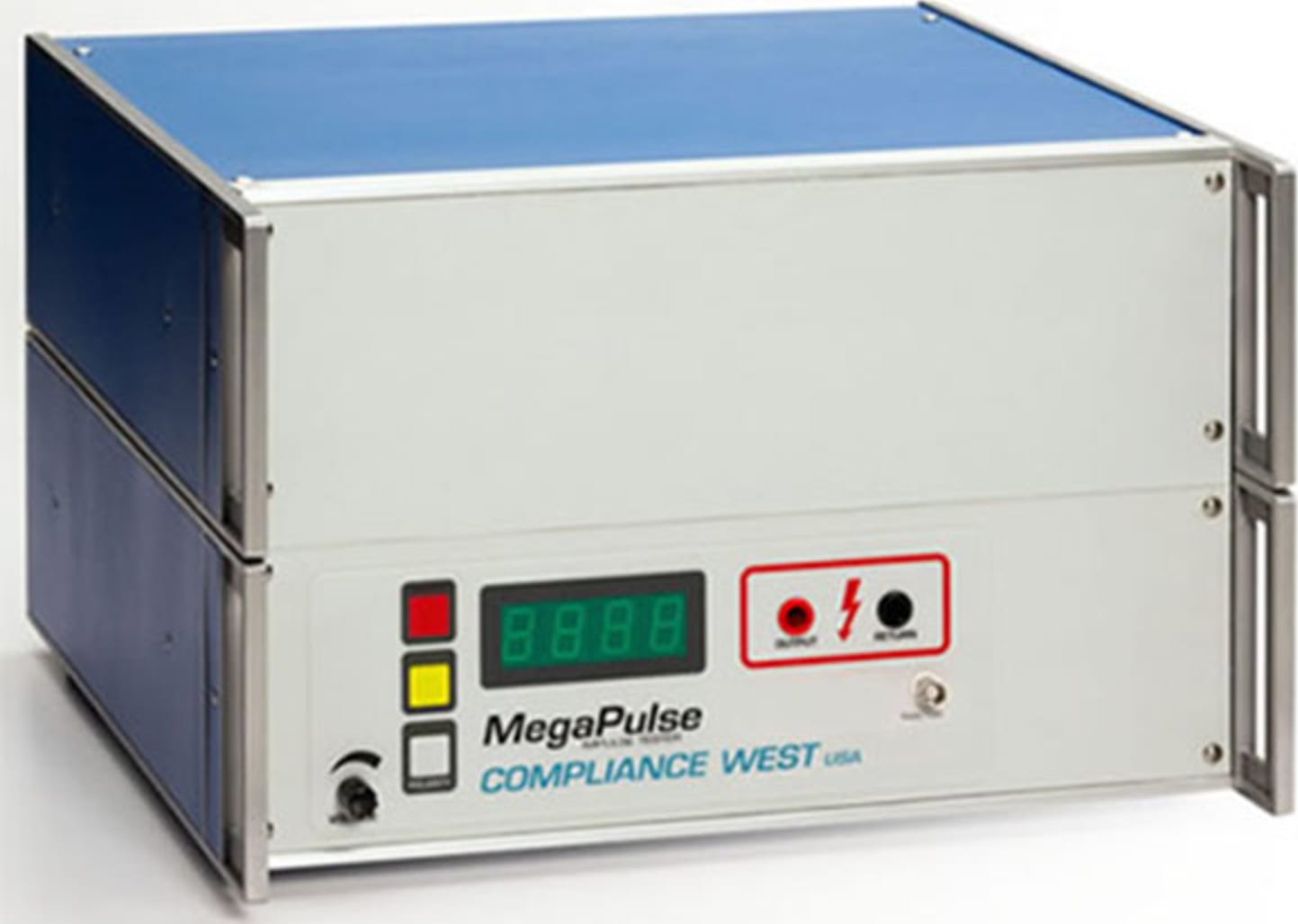

Compliance 1.2x50/8x20-12 - Combination Impulse Tester, 12kV, 1kAbination Impulse Tester, 12kV, 1kA

Name: Compliance 1.2x50/8x20-12 - Combination Impulse Tester, 12kV, 1kAbination Impulse Tester, 12kV, 1kA
Brand: Compliance West
SKU: Compliance1.2x50/8x20-12
Availability: InStock

0 reviews | Catalog: 1.2x50/8x20-12 | Model: Compliance West 1.2x50/8x20-12

Compare

Pos/neg polarity, grounded output, 500V min, 12 ohm tap; not for use with CDN. 30 sec duty cycle, <30 sec. charge time.

⛟ Freight Shipping Only

Outputs a combination waveform at 400 - 12kV, 12 ohms.
Front panel switch allows waveform reversal.
Grounded outputs.
30 second pulse repeat rate.
Can be controlled from PLC or LabView with Option RI.
Outputs up to 12000V peak.
Virtual Impedance of 12 ohms.
Available TestMinder for computer control of long test sequences (32 bit Windows required).
ANSI Calibration good for one year included, A2LA/17025 Calibration optional.
1 year warranty.

View Product Details

In Stock:

View Payment Options

Recommended for you

Compliance 1.2x50/8x20-12

Ships with cables, graphs of theoretical and actual waveforms
Reverse polarity waveforms available by pushing a button on the front panel. No need to change the test setup. Positive polarity indication minimizes errors.
Built to the requirements of IEC 1180-1, Voltage Testers
Generates the waveforms described in EN60335, Paragraph 14 for testing electrical separation.

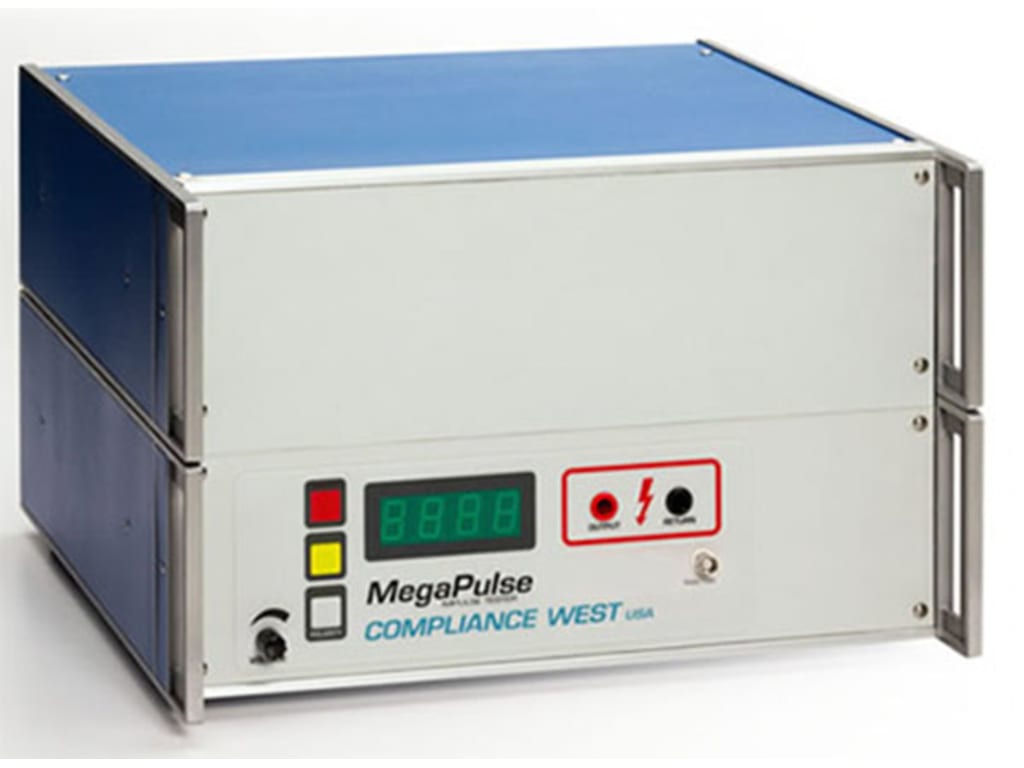

Combination Impulse Tester, 12kV, 1kA

The MegaPulse 1.2x50/8x20-12 12 ohm is our 12kV, 1kA combination tester, with a 30 second cycle time. It can produce a combination test waveform at 12 ohms from 500V to 7kV, in tolerance with EN 60060.

The tester features grounded outputs, and is therefore suitable for use for unpowered testing only. The tests can be done with a 30 second or longer wait between pulses. The MegaPulse 1.2x50/8x20-12-1

Specifications
Open Circuit Voltage Peak	400V - 12kV
Open Circuit Voltage Duration	50uS
Open Circuit Rise Time	1.2uS
Short Circuit Current Peak	33.33A - 1kA
Short Circuit Current Duration	20uS
Short Circuit Rise Time	8uS
